Specifications
Packaging Details :
Wooden case
Certification :
ISO9001 ISO14001 CE
Cavity Quantity :
Customized 1 to 8 cavities
Price :
USD 75-140 / set
Maximum Temperature :
1600°C
Payment Terms :
T/T
Positioning Accuracy :
Millimeter-level
Place of Origin :
China
Main Body Material :
High heat resistant alloy cast iron
Brand Name :
LuFeng
Single Ingot Weight :
Customized 25kg to 50kg
MOQ :
10
Working Temperature Resistance :
Up to 700 Centigrade degree
Description

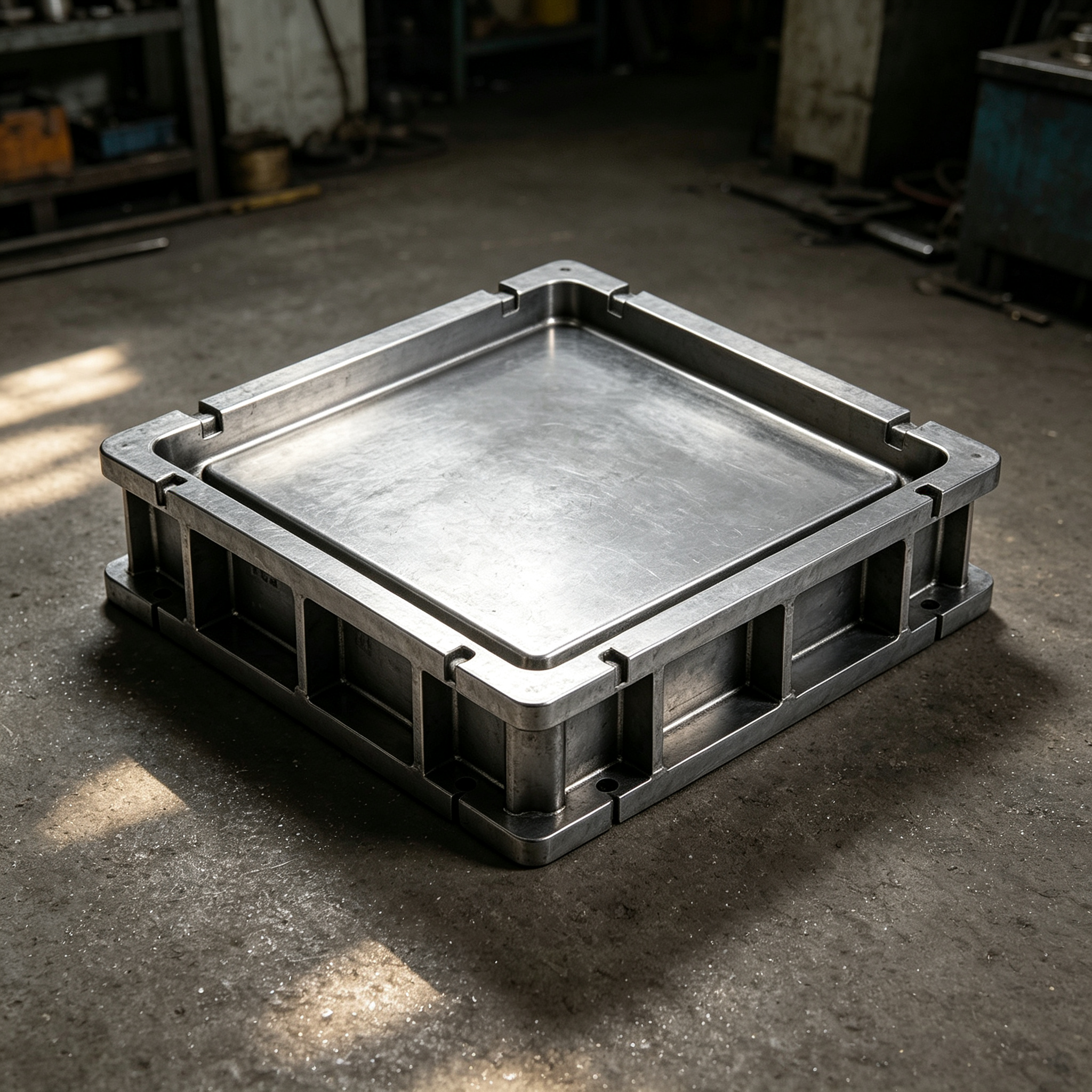

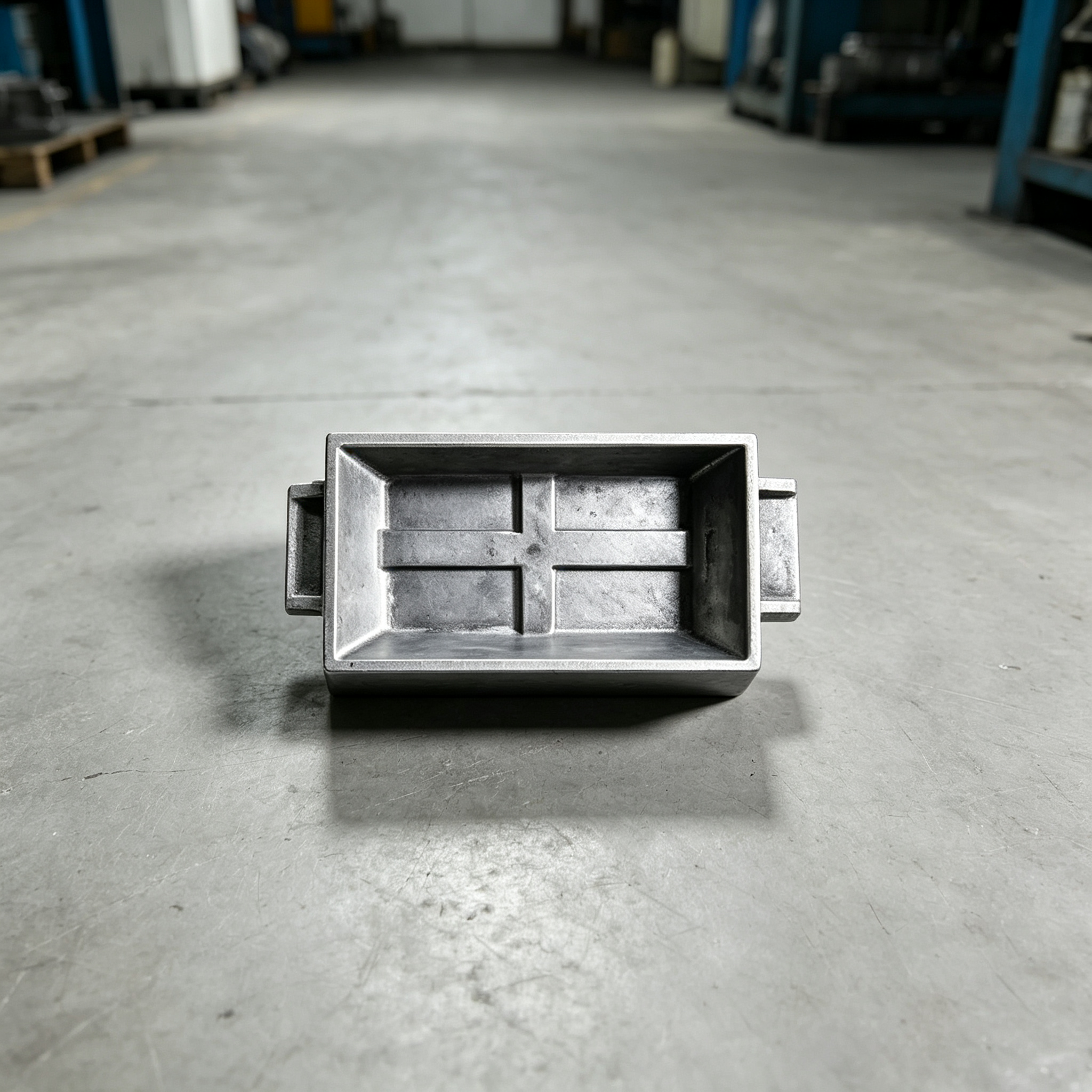

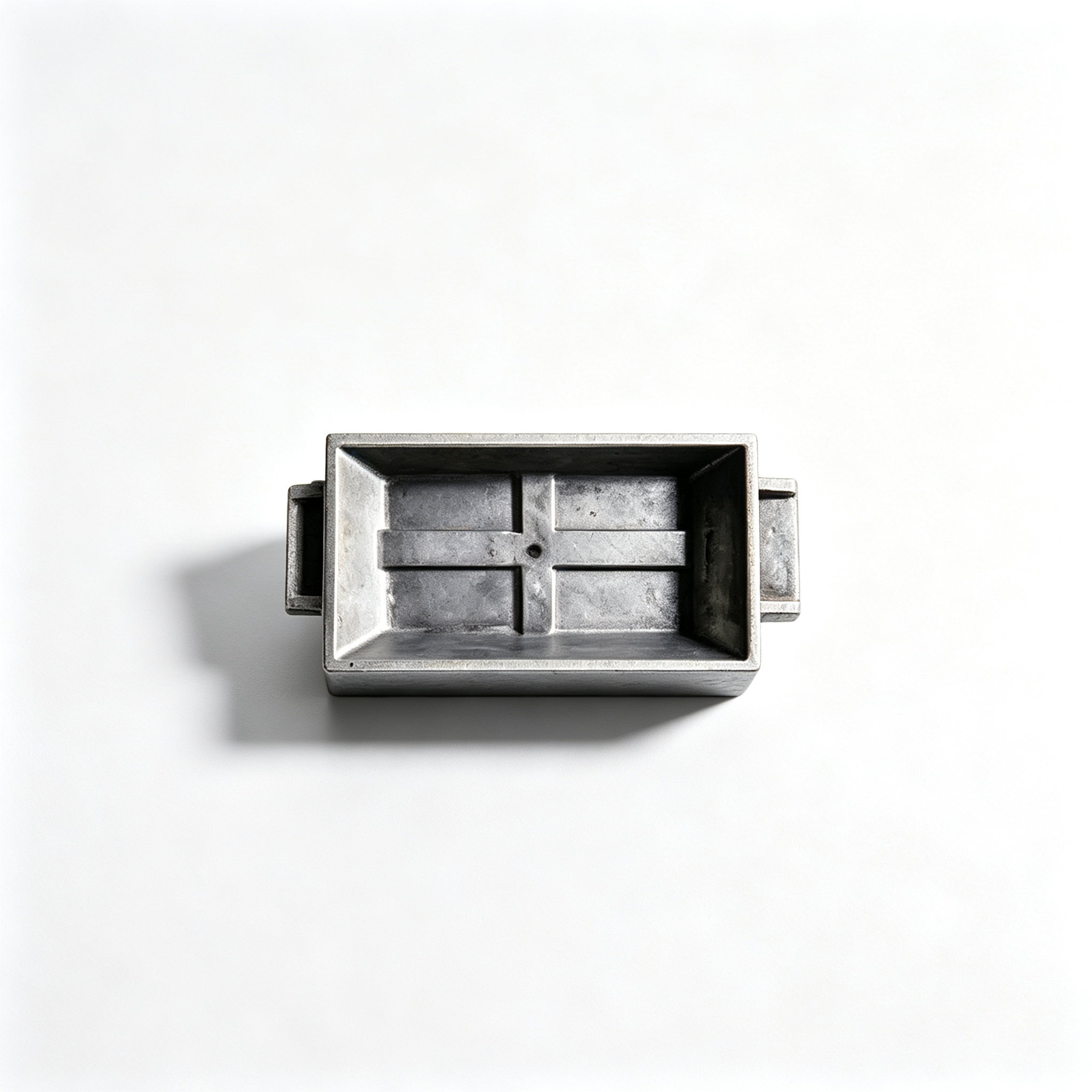

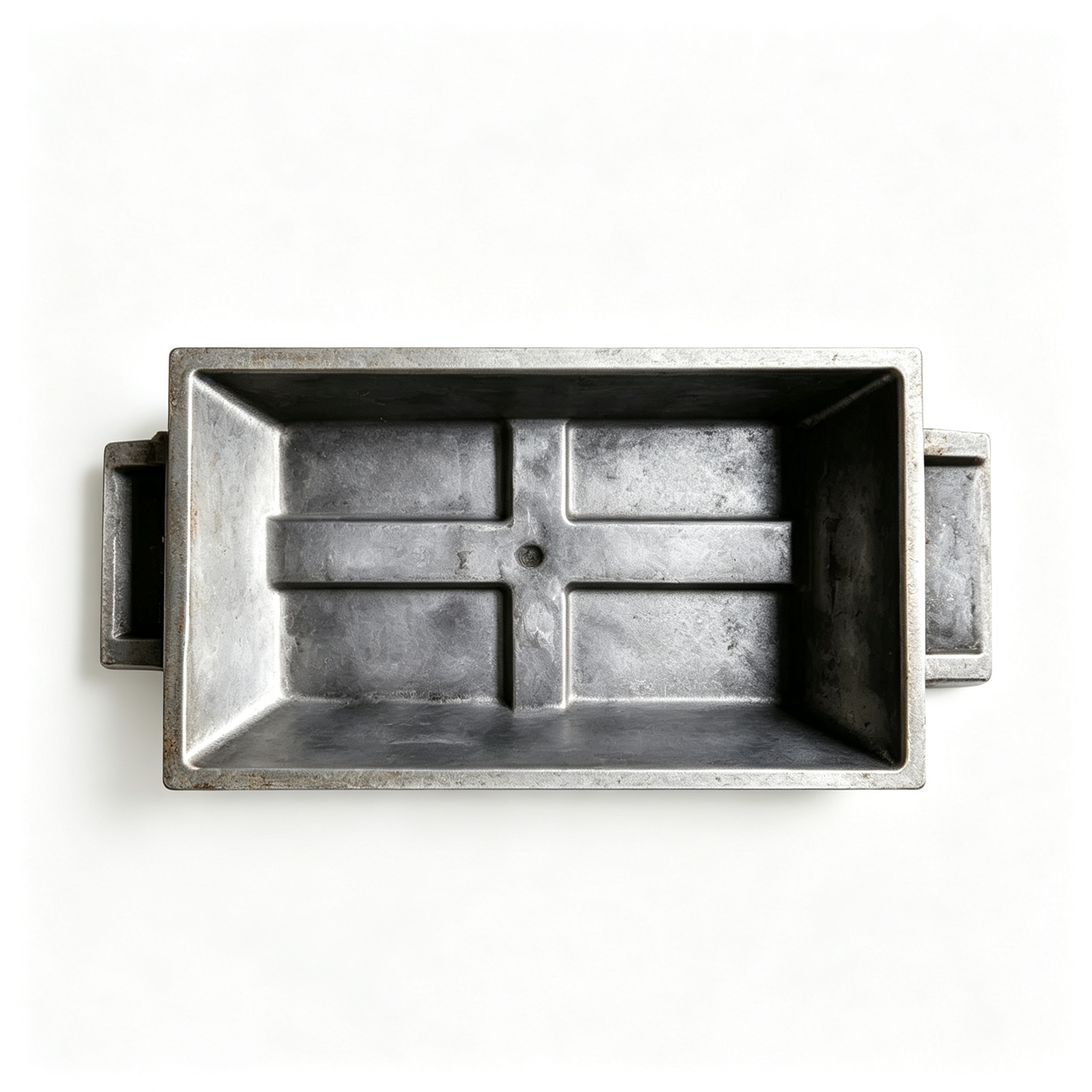

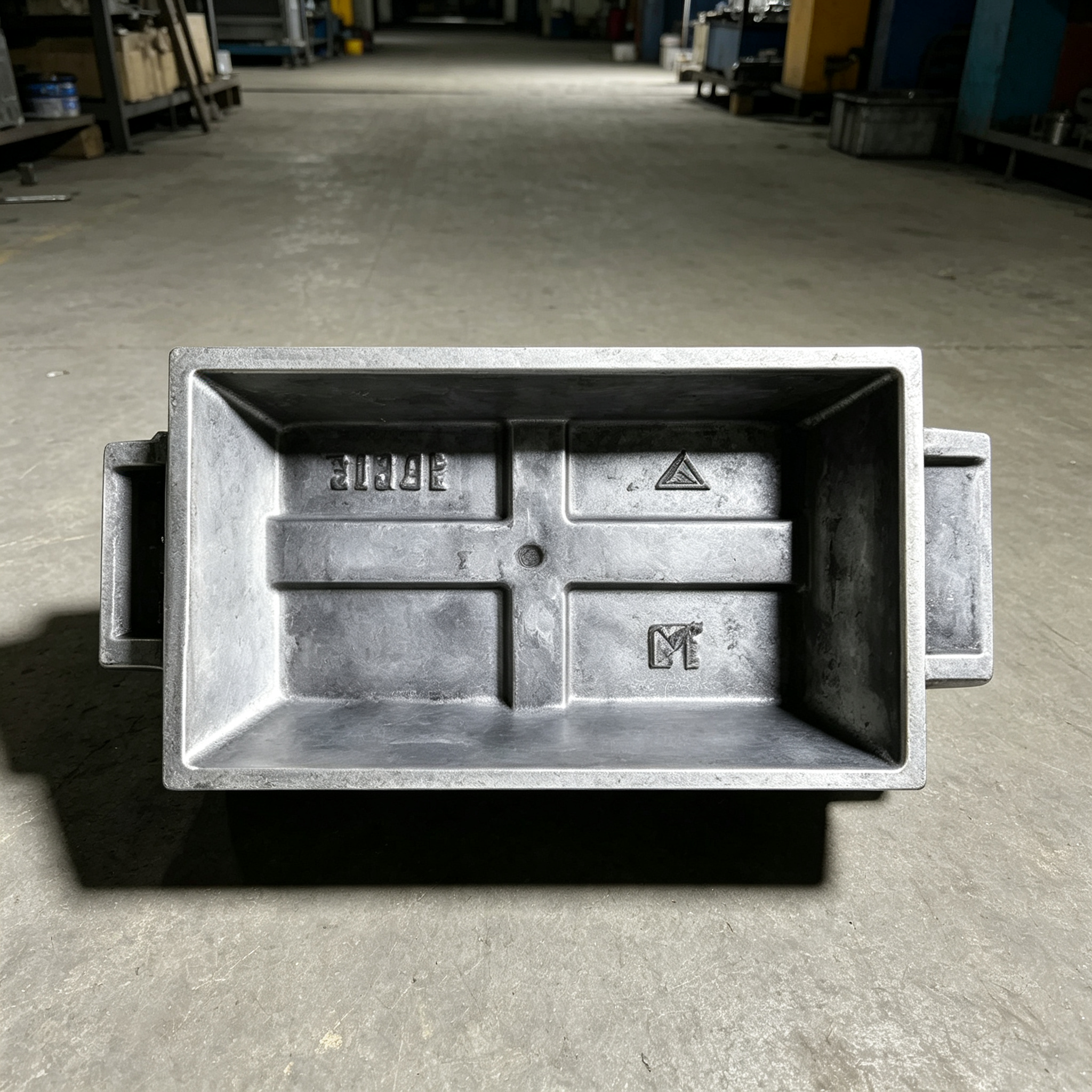

Lead Ingot Casting Mould
Critical consumable component for lead ingot casting machines in secondary lead recycling metallurgical production lines. This mould undertakes forming work for high-temperature molten lead, completing cooling and shaping processes to produce standard specification lead ingot products.
Technical Specifications
Product Name Lead Ingot Casting Mould
Single Ingot Weight Customized 25kg to 50kg
Cavity Quantity Customized 1 to 8 cavities
Main Body Material High heat resistant alloy cast iron
Surface Treatment High temperature anti-adhesion coating optional
Working Temperature Resistance Up to 700°C
Matching Equipment Automatic or semi-automatic lead ingot casting machine
Brand LuFeng
Certification ISO9001 ISO14001 CE
Service Life Extended service life under standardized operation
Key Features
  • Excellent Thermal Shock Resistance: Made of special alloy cast iron optimized for frequent cold-hot alternation environments, preventing cracking or deformation under continuous high-temperature operation.
  • Precise Cavity Dimensions: Each cavity undergoes precision machining to ensure uniform weight, regular shape, and smooth surface finish of lead ingots.
  • Anti-Adhesion Properties: Optional high-temperature coating reduces bonding between molten lead and mould surface, facilitating smooth demoulding.
  • Rigid Structure: Thick wall casting design with reinforced mounting connections ensures stability under heavy-load conditions.
  • Customization Capability: Full-range customization available for single ingot weight, cavity number, dimensions, and installation requirements.
  • Easy Maintenance: Modular design allows for simple disassembly and replacement using common tools.
Working Principle

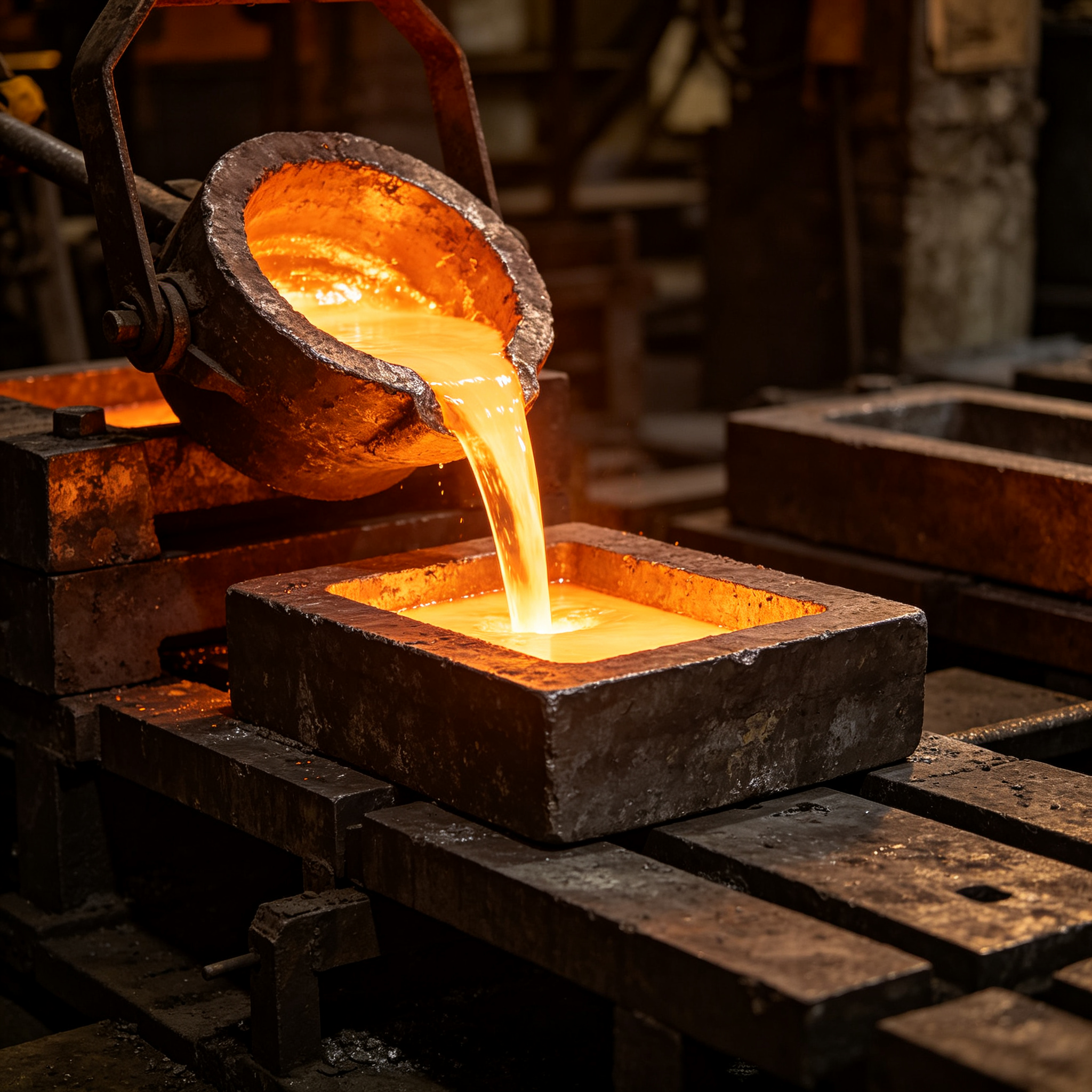

The lead ingot casting mould is fixed on the circulating chain plate of the casting machine. High-temperature molten lead is injected into each cavity through the launder system. As heat transfers to the mould body and cooling devices, the lead solidifies into ingots. At the demoulding station, the mould turns over to release solidified ingots, then returns for the next casting cycle in continuous production.
Core Functions
  • Shaping high-temperature molten lead into standardized solid ingots
  • Withstanding repeated thermal cycling from pouring and cooling processes
  • Matching automatic casting production flows for continuous operation
  • Enabling diversified specification manufacturing through cavity customization
Application Scope
  • Waste lead acid battery secondary lead recycling factories
  • Lead alloy smelting and processing enterprises
  • Non-ferrous metal smelting and metallurgical material processing plants
  • Metallurgical equipment supporting suppliers
Competitive Advantages
  • Strict raw material control for extended service life
  • Precision machining ensuring stable product quality
  • Powerful non-standard custom development capability
  • Short production cycles and reliable spare-part supply
  • Complete after-sales technical service support
About LuFeng Machinery
Founded in 2010, LuFeng Machinery holds ISO9001, ISO14001, and CE certifications. We specialize in research, design, manufacturing, and global sales of complete metallurgical equipment and supporting spare parts for the waste lead acid battery recycling industry. Our product portfolio includes rotary tilting furnaces, vertical lead refining furnaces, lead ingot casting machines, and a full range of metallurgical spare parts. With extensive project experience worldwide, we provide comprehensive services from project consultation to long-term technical support.
