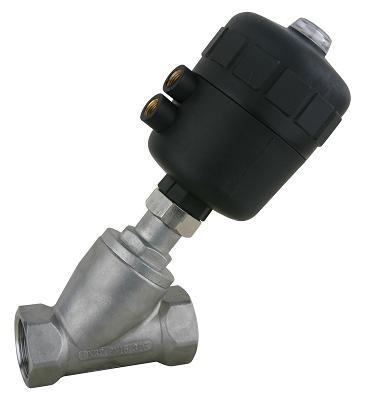

Plastic Actuator Pneumatic Angle Seat Valve
Plastic Actuator Pneumatic Angle Seat Valve
Specifications
Brand Name :
POWERFLOW
Model Number :
2700
Certification :
ISO9001. CE.
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Actuator Material :
Plastic/Stainless steel 304(CF8)/ 316(CF8M)
Working Pressure :
16Bar
Available Size :
DN15-DN100
Air Supply :
2.5 - 8Bar
Standard :
DIN, SMS, ISO, IDF,RJT, 3A, etc
Certificate :
CE
Description

2700 Series Pneumatic Angle Seat Valve with Plastic Actuator and Thread Connection

​1. Features

  • Large flux, low resistance, no water-hammer
  • Y-type shape enlarged the flowing section, which cloud raise the flux by 30% and make flow more smooth
  • Super long working life
  • The stem can adjust and lubricates itself automatically

2. Technical Data

Actuator Material Stainless Steel, Plastic
Valve Body Material AISI 304/316
Seal Material PTFE, PPL
Working Pressure 16Bar
Working Temperature -20-180℃(PTFE); -20-220℃(PPL)
Available Size DN15-DN80
Aailable Connection Thread, Weld, Clamp, Flange
Air Supply 2.5-8Bar
Standard DIN, SMS, ISO, IDF, RJT, 3A, etc

​

3. Application

Plastic Actuator Pneumatic Angle Seat Valve

1. Valve Body 8. Down Space of Actuator
2. Seat 9. Pilot Port
3. Stem 10. Spring Set
4. Body Seal 11. Up Space of Actuator
5. Connection Piece 12. Release Hole
6. Stem Seal 13. Cap Hole
7. Leak Hole

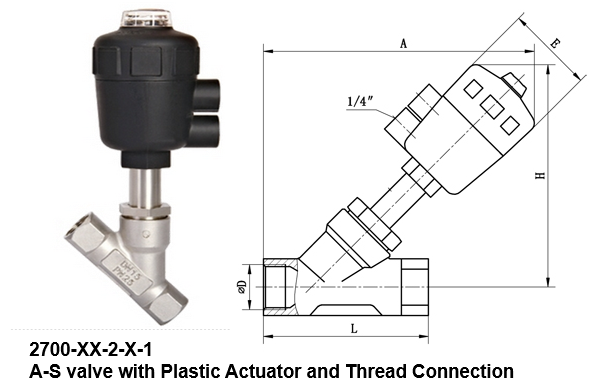

4. Dimension

Plastic Actuator Pneumatic Angle Seat Valve

Model L

A

H

 D E

Actuator

Size
DN10 65 135 110 3/8' 53 40
DN15 85 172 137 1/2' 64 50
DN20 95 178 145 3/4' 64 50
DN25 105 210 165 1' 64 50
DN32 120 220 180 1&1/4' 80 63
DN40 130 228 190 1&1/2' 80 63
DN50 150 268 245 2' 100 80
DN65 185 282 300 2&1/2' 100 80
DN80 220 368 340 3' 126 100
DN100 235 420 395 4' 156 125

5. Type Selection

Plastic Actuator Pneumatic Angle Seat Valve
