Flange Stainless Steel Y Type Pneumatic Angle Seat Valve
Flange Stainless Steel Y Type Pneumatic Angle Seat Valve
Specifications
Brand Name :
POWERFLOW
Model Number :
2700
Certification :
ISO9001. CE.
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Valve Body Material :
Stainless steel 304(CF8)/ 316(CF8M)
Actuator Material :
Plastic/Stainless steel 304(CF8)/ 316(CF8M)
Seal Material :
PTFE/PPL
Working Pressure :
16Bar
Standard :
DIN, SMS, ISO, IDF,RJT, 3A, etc
Certificate :
CE
Description

2700 Series Pneumatic Angle Seat Valve with Stainless Steel Actuator and Flange Connection

​1. Features

  • Large flux, low resistance, no water-hammer
  • Y-type shape enlarged the flowing section, which cloud raise the flux by 30% and make flow more smooth
  • Super long working life
  • Which help the stem adjust and lubricates itself automatically

2. Technical Data

Actuator Material Stainless Steel, Plastic
Valve Body Material AISI 304/316
Seal Material PTFE, PPL
Working Pressure 16Bar
Working Temperature -20-180℃(PTFE); -20-220℃(PPL)
Available Size DN15-DN80
Aailable Connection Thread, Weld, Clamp, Flange
Air Supply 2.5-8Bar
Standard DIN, SMS, ISO, IDF, RJT, 3A, etc

​

3. Application

Flange Stainless Steel Y Type Pneumatic Angle Seat Valve

1. Valve Body 8. Down Space of Actuator
2. Seat 9. Pilot Port
3. Stem 10. Spring Set
4. Body Seal 11. Up Space of Actuator
5. Connection Piece 12. Release Hole
6. Stem Seal 13. Cap Hole
7. Leak Hole

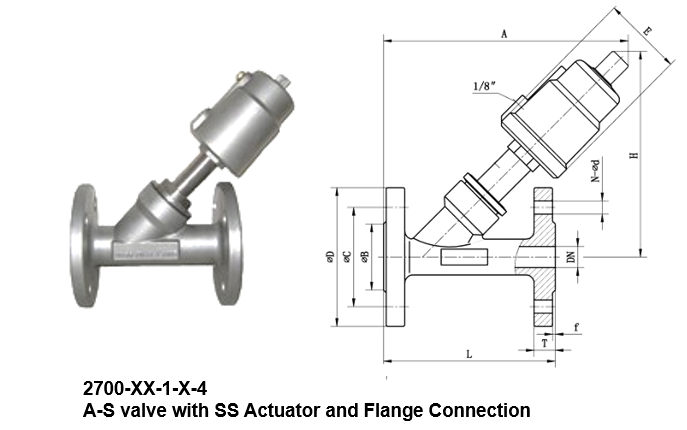

4. Dimension

Flange Stainless Steel Y Type Pneumatic Angle Seat Valve

Model L T f D C B

A

H

 E
DN15 120 14 2 95 65 40 185 145 62
DN20 130 14 2 105 75 50 188 155 62
DN25 140 14 2 115 85 60 218 185 76
DN32 150 16 2 135 100 70 225 195 76
DN40 180 16 2 145 110 80 240 205 76
DN50 195 16 2 160 125 92 265 228 76
DN65 230 18 2 185 145 115 290 264 96
DN80 250 18 2 195 160 130 330 300 114

5. Type Selection

Flange Stainless Steel Y Type Pneumatic Angle Seat Valve
