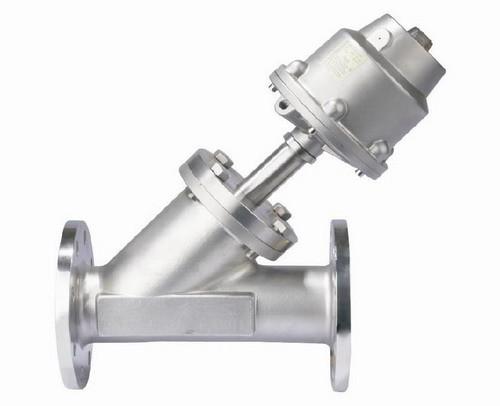

Normal Open NO Angle Seat Control Valve
Normal Open NO Angle Seat Control Valve
Specifications
Brand Name :
POWERFLOW
Model Number :
2710
Certification :
ISO9001. CE.
Place of Origin :
CHINA
MOQ :
1 Nos
Price :
Quotation Offered by Email.
Payment Terms :
T/T
Supply Ability :
50Nos/Week for every single Customer.
Delivery Time :
10-15 Days
Fluid Pressure :
Max 1.6MPa(232psi)
Control Pressure :
0.3-0.8MPa(43.5-116psi)
Control Fluid :
Neutral gas, Air
Body Material :
CF8M/CF8
Fluid Viscosity :
Max 600 mm²/s
Fuild Temp. :
-10-180℃; 25-220℃
Description

2710 Series Normal-open(NO) Pneumatic Angle Seat Valve

​1. Description

Valve is closed(open)with spring force, when the piston is actuated by compressed air, valve is open(closed). For the double acting type, the valve is open and closed by compressed air.

2. Technical Data

Fuild Pressure Max 1.6MPa(232psi)
Control Pressure 0.3-0.8MPa(43.5-116psi)
Control Fluid Neutral gas, Air
Body Material CF8M/CF8
Seals Material CF8
Actuator Size 40mm, 50mm, 63mm, 90mm, 125mm
Applicable Fluid Water, Alcohol, Oil, Fuel, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
Fluid Viscosity Max 600 mm²/s
Fluid Temp. -10-180℃; 25-220℃
Ambient Temp. -10-80℃
Control Type Normal-close, Normal-open, Double-acting
Connection Thread(BSP, BSPT, NPT), Welded, Flanged, Tri-clamp

​

4. Pressure data sheet

  • Normally Open(NC)-Enter Above Seat
Size Thread end Orifice(mm) Kv(m²/h) Actuator(mm) ▲P(MPa) Control Pressure(MPa)
DN10 G3/8'' 13 3.8 40 0-1.6 ≥0.3
50 0-1.6 ≥0.3
DN15 G1/2'' 13 4.7 40 0-1.6 ≥0.3
50 0-1.6 ≥0.3
DN20 G3/4'' 18 9.5 50 0-1.2 ≥0.3
DN25 G 1'' 24 18.1 50 0-0.3 ≥0.3
63 0-1.6 0.45
DN32 G1-1/4'' 31 23.1 63 0-1.4 ≥0.45
DN40 G1-1/2'' 35 32.9 63 0-1.4 ≥0.45
DN50 G 2'' 45 52.8 63 0-0.6 ≥0.45

Suitable for long time valve open demand; avoid water hammer. Taking off the silencer, valve could be changed to double acting-NO type.


5. Selection

Normal Open NO Angle Seat Control Valve
