Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller
Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller
Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller
Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller
Specifications
Model Number :
KF-500C-YC
Control Method :
Automatic & Manual Control
Price :
US$49/pcs
Control Accuracy :
High Precision Pressure Regulation
Supply Ability :
100000pcs
Payment Terms :
T/T
Application :
HVAC / Fresh Air Ventilation / Air Pressure Control
Place of Origin :
China
Fixing hole distance :
60mm(standard)
MOQ :
1pcs
Pressure Range :
0–500 Pa (based on model specification)
Delivery Time :
2-3 weeks
Brand Name :
OEM or neutral (no brand)
Dimension :
86×86×40mm
Description

Smart Differential Pressure Controller For HVAC Fresh Air Systems And Cleanroom Applications

Product Overview:

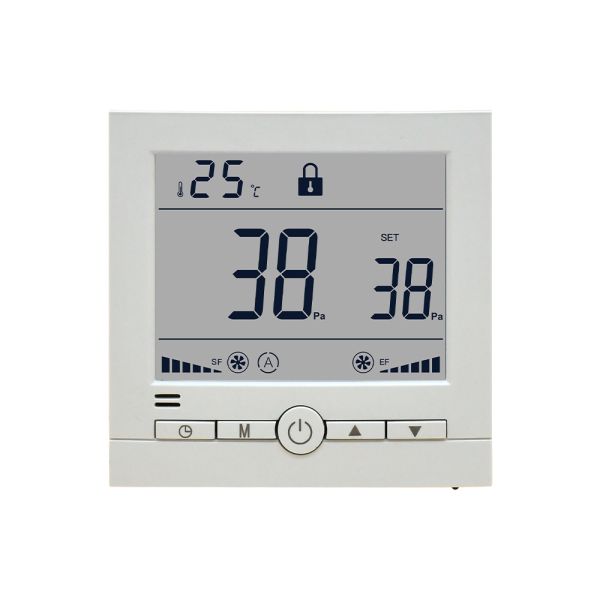

The KF-500C-YC is an intelligent digital differential pressure controller designed for precise indoor pressure management. Equipped with a clear LCD display and intelligent control algorithm, it continuously monitors real-time indoor and outdoor pressure differences and automatically adjusts the fresh air blower operation to maintain a stable pressure balance.

Key Features:

Energy-Efficient Ventilation Control

  • Adjusts fan operation according to actual demand
  • Reduces unnecessary energy consumption while maintaining air quality

Precision Air Pressure Management

  • Maintains required positive or negative pressure environments
  • Helps prevent cross-contamination and unwanted air infiltration

Product Specifications:
Dimension: 86×86×40mm Temperature display range: 0℃——50℃
Fixing hole distance: 60mm(standard) Operating temperature: -10℃ --- +50℃

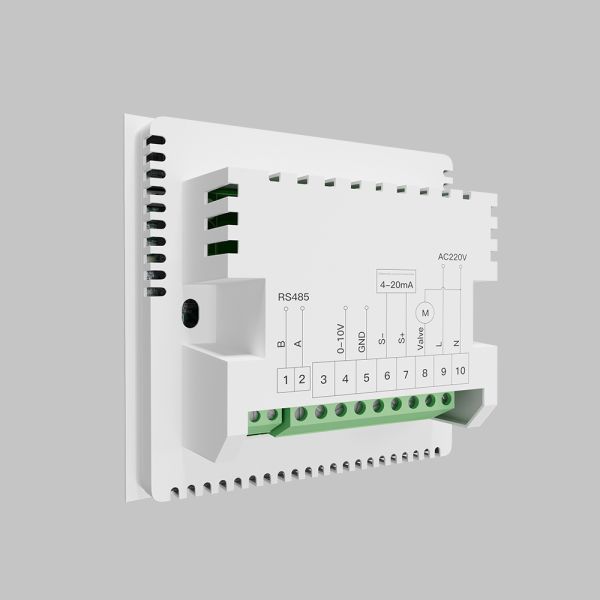

Wiring terminal: Max 2.5 mm2 wire Operating humidity: 5％RH——90％RH (Non-condensing)
Rated voltage: AC110V -- 220V 50Hz Storage temperature: -10℃ --- +60℃
Standby Power: ≤0.2W Storage humidity: ≤60％RH
Control power: ≤200W Life: ≥5 years
Differential pressure range: ±100Pa
Product Images:

Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller

Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller

Cleanroom Smart Differential Pressure Controller HVAC Fresh Air System Controller
