Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control
Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control
Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control
Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control
Specifications
Model Number :
KF-500C-YC
Temperature display range :
0℃----50℃
Price :
US$49/pcs
Rated voltage :
AC110V -- 220V 50Hz
Supply Ability :
100000pcs
Payment Terms :
T/T
Differential pressure range :
±100Pa
Place of Origin :
China
Fixing hole distance :
60mm(standard)
MOQ :
1pcs
Operating temperature :
-10℃ --- +50℃
Delivery Time :
2-3 weeks
Brand Name :
OEM or neutral (no brand)
Dimension :
86×86×40mm
Description

Digital Differential Pressure Controller with LCD Display for Automatic Control and Wall Mounting

Product Overview:

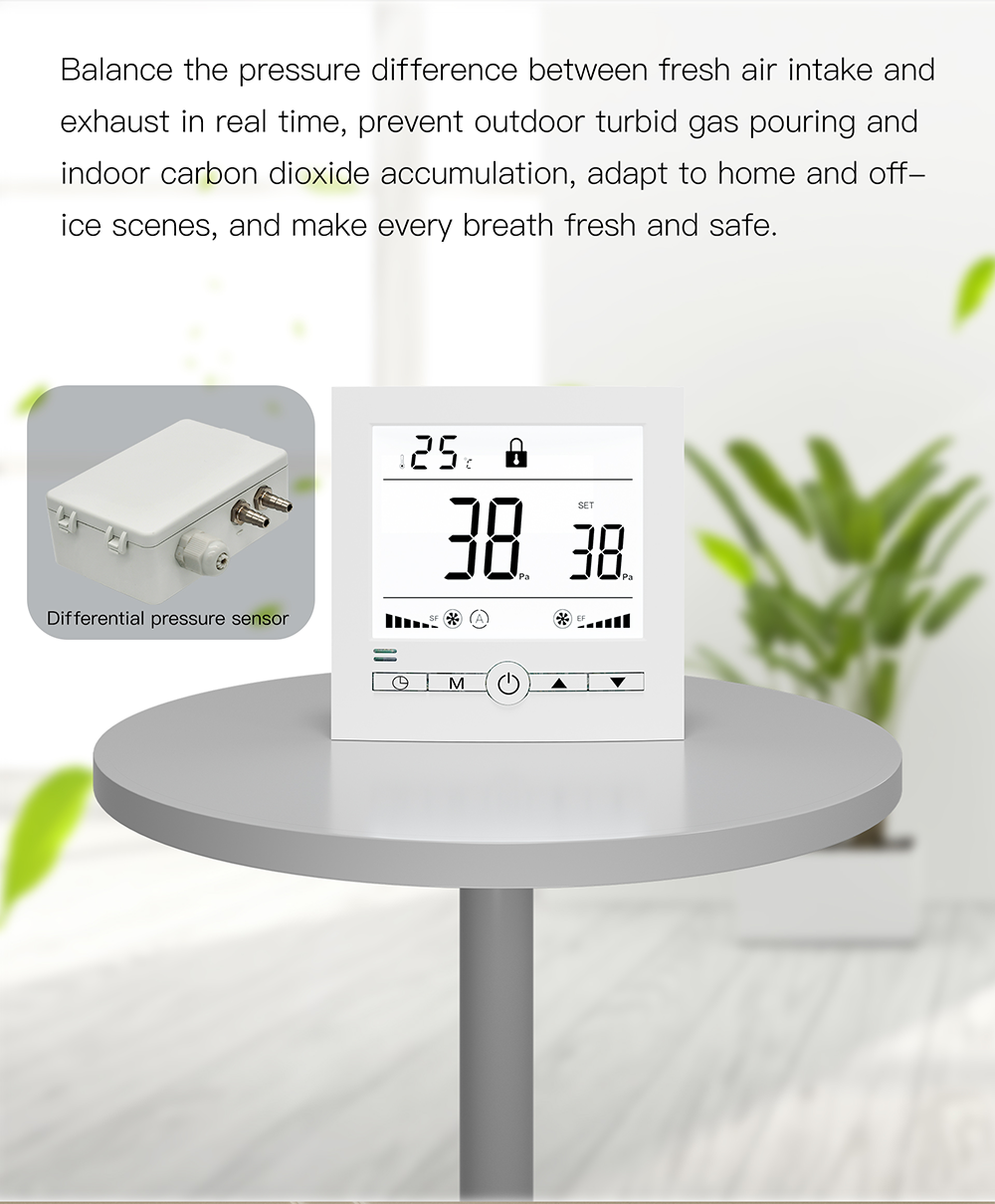

The KF-500C-YC is an intelligent digital differential pressure controller designed for precise indoor pressure management. Equipped with a clear LCD display and intelligent control algorithm, it continuously monitors real-time indoor and outdoor pressure differences and automatically adjusts the fresh air blower operation to maintain a stable pressure balance.

It is suitable for hospitals, commercial and industrial environments to ensure that the indoor pressure difference is maintained at the required constant value, creating a safe and comfortable working environment.

Key Features:
  • Dual Operation Modes

    Automatic Mode: Intelligent adjustment based on detected pressure changes

    Manual Mode: User-controlled operation for flexible management

  • Clear LCD Digital Display

    Large, easy-to-read screen

    Displays current pressure value and preset pressure setting

    Provides intuitive operation status monitoring

Product Specifications:
Dimension: 86×86×40mm Temperature display range: 0℃——50℃
Fixing hole distance: 60mm(standard) Operating temperature: -10℃ --- +50℃
Wiring terminal: Max 2.5 mm2 wire Operating humidity: 5％RH——90％RH (Non-condensing)
Rated voltage: AC110V -- 220V 50Hz Storage temperature: -10℃ --- +60℃
Standby Power: ≤0.2W Storage humidity: ≤60％RH
Control power: ≤200W Life: ≥5 years
Differential pressure range: ±100Pa
Product Images:

Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control

Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control

Digital LCD Display Differential Pressure Controller Wall Mounting For Automatic Control
