Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security
Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security

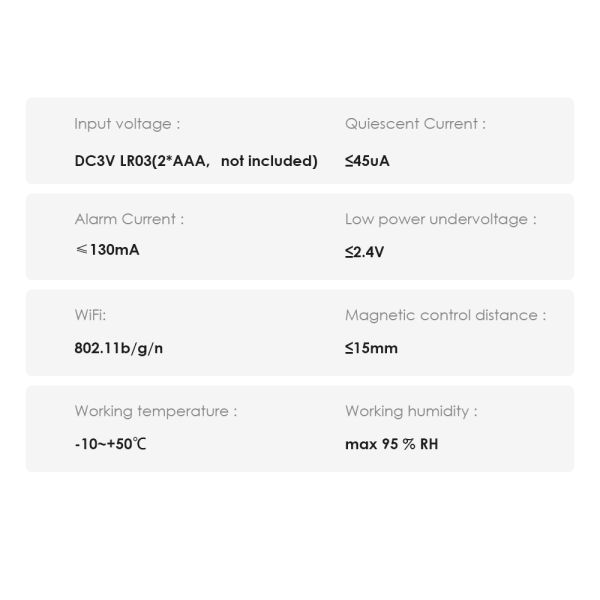

Specifications
Brand Name :
SIXWGH
Model Number :
WHMC-001
Certification :
CE,RoHS,FCC,UL
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
USD+2.8-3.5+piece
Payment Terms :
D/A,D/P,T/T,Western Union,L/C
Supply Ability :
10000+piecex+10days
Delivery Time :
5-10days
Packaging Details :
50×50×20mm Weight: 30g
Sensor Technology :
Magnetic Reed Switch
Wireless Standard :
WiFi 802.11 b/g/n
Operating Voltage :
DC 3V (2 AAA Batteries)*
Quiescent Current :
≤45uA
Alarm Current :
≤130mA
Magnet Gap :
≥15mm Trigger
Operating Temp :
-10°C to +50°C
Humidity Range :
Max 95% RH
Main Body Size :
70mm x 25mm x 20mm
Material :
ABS Plastic
Description

Core Specs - B2B Focus

Feature Specification
Sensor Type Magnetic Hall Effect Sensor
Connectivity WiFi 2.4GHz (No Hub Required)
App Platform Tuya Smart / Smart Life
Response Time <0.5 Seconds (Instant Alert)
Battery Type 2x AAA (LR03) 1.5V
Standby Current ≤45uA (1-Year Battery Life)
Trigger Distance ≥15mm (High Sensitivity)
Integration Alexa / Google Home / IFTTT

Description - Business Pitch
The essential building block for any home security business. This WiFi Door Sensor provides the most cost-effective intrusion detection. Using advanced Hall sensing technology, it triggers an instant alarm on the user's phone the moment a door or window opens by more than 15mm. With Zero False Alarms and ultra-low power consumption (1 year on 2 AAA batteries), it’s the perfect high-volume product for safeguarding homes, shops, and offices.

Wireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home SecurityWireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home SecurityWireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home SecurityWireless 802.11b WiFi Door Detector Sensor Alarm for Smart Home Security

FAQ (Security & Reliability Focus)

  • Q: Does it need a separate hub to work?

    • A: No. This is the WiFi version, which connects directly to the router, lowering the entry barrier for customers compared to ZigBee systems.

  • Q: How fast is the alarm notification?

    • A: It pushes a notification to the smartphone within 1-2 seconds of the door opening, allowing users to react immediately to potential break-ins.

  • Q: What happens if the battery runs out?

    • A: It has a Low Battery Warning. When the voltage drops below 2.4V, it sends a push notification to the App reminding the user to replace the AAA batteries.

  • Q: Can I use it on a metal door?

    • A: Yes, but we recommend adding a small plastic spacer if the magnet is too close to the metal frame to prevent magnetic interference.

  • Q: Is it tamper-proof?

    • A: The App keeps a 24/7 History Record of every open/close event, so you know exactly when someone entered, even if they disabled the notification later.
