Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet
Specifications
Brand Name :
SIXWGH
Model Number :
WH-RT-IR-003
Certification :
CE,RoHS,FCC,UL
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
USD+3.5-5+piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000+piecex+10days
Delivery Time :
5-10days
Packaging Details :
40×40×40mm Weight: 30g
Sensor Element :
High Precision PIR Probe
Wireless Standard :
ZigBee 3.0 (802.15.4)
Operating Voltage :
3V DC
Standby Current :
≤12uA (Ultra Efficiency)
Detection Range :
≤10 Meters
Viewing Angle :
>135 Degrees
Interference Filter :
Air Flow Suppression Algo
Working Temp :
-10°C to +55°C
Material :
ABS UV-Resistant
Installation Height :
2.2m (Recommended)
Description

Core Specs - B2B Focus

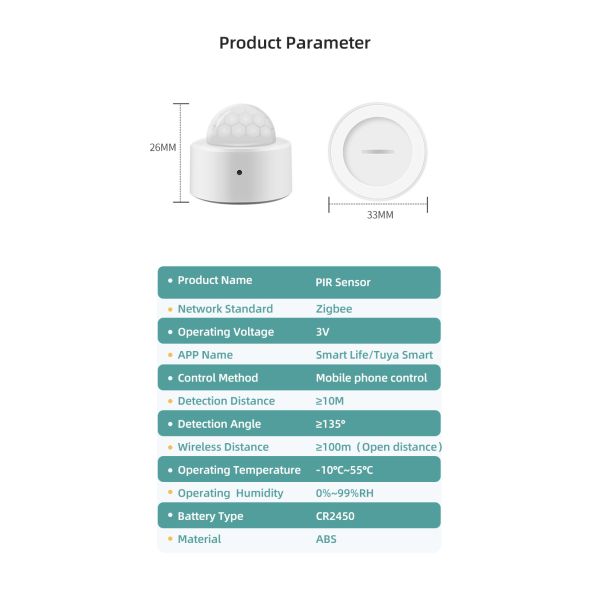

Feature Specification
Sensor Tech PIR + Air Flow Suppression
False Alarm Rate Ultra-Low (Anti-Interference)
Protocol ZigBee 3.0 (Gateway Required)
Detection Angle 135° Wide Angle
Detection Dist. ≥10 Meters (Long Range)
Battery Type CR2450 (1 Year Standby)
Installation Magnetic 360° Rotatable Base
Dimensions Ø33mm x 26mm (Invisible Design)

Description - Business Pitch
The perfect "Invisible Security Guard" for your projects. At only 33mm, this Mini PIR Sensor can be hidden anywhere, making it nearly impossible for intruders to spot and disable. It features advanced algorithms to suppress false alarms caused by hot air flows or small pets, significantly reducing customer complaints. Powered by ZigBee 3.0, it ensures a stable, low-latency connection for critical security alerts, unlike unreliable WiFi sensors.
Home Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti PetHome Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti PetHome Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti PetHome Automation ZigBee 3.0 PIR Motion Smart Home Sensors 135° Wide Angle Anti Pet

FAQ (Security & Technical Focus)

  • Q: How does the "Air Flow Suppression" help with security?

    • A: Traditional PIR sensors often trigger false alarms due to hot air from AC units or curtains moving. This sensor filters out such interference, ensuring alarms are only triggered by real intruders.

  • Q: Is it really "Anti-Pet"?

    • A: Yes, it uses a precision Fresnel lens and algorithm to ignore small pets (under a certain size/weight) moving on the floor, making it ideal for homes with dogs or cats.

  • Q: Why use ZigBee for motion sensors?

    • A: ZigBee sensors wake up and send alerts in milliseconds, much faster than WiFi. They also use less power and don't congest the local network, which is vital for security systems.

  • Q: Can it cover a large living room?

    • A: Yes, with a 135° detection angle and 10-meter range, a single sensor placed in a corner can effectively monitor an entire large room or hallway.

  • Q: How flexible is the installation?

    • A: It comes with a 360° Magnetic Mount. You can stick the base anywhere and rotate the sensor to point exactly where you need detection, avoiding blind spots.
