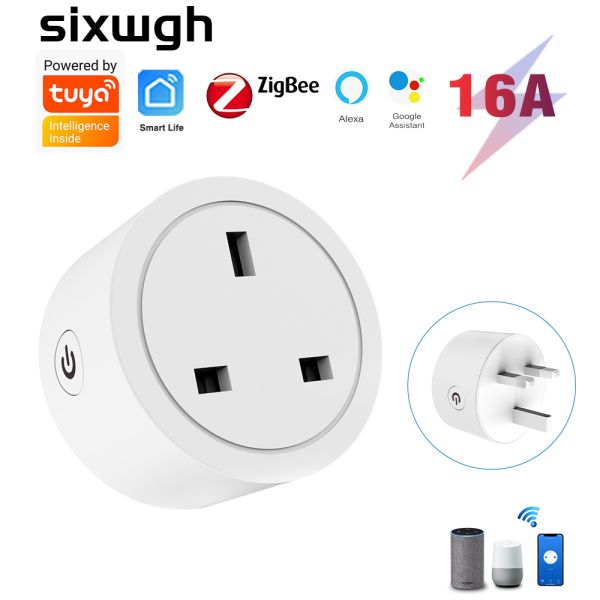

ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard
ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard

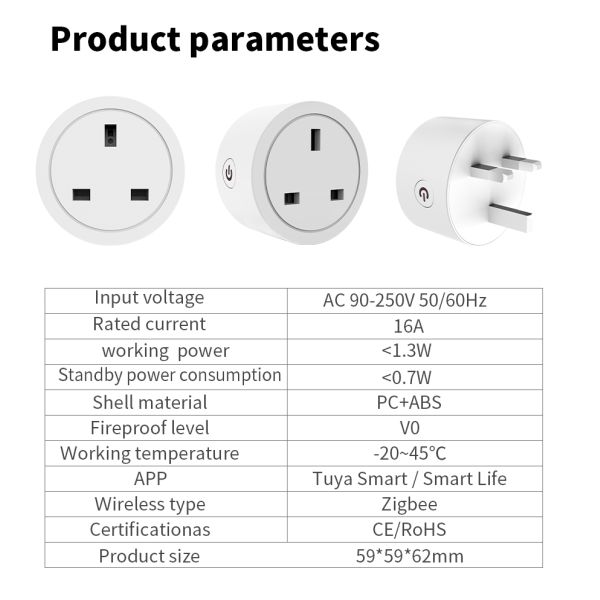

Specifications
Brand Name :
SIXWGH
Model Number :
WHDZ03
Certification :
CE, RoHS, FCC
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
USD+3.8-4.8+piece
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10000+piecex+10days
Delivery Time :
5-10days
Packaging Details :
100pcs/box 9.5kg/box Size:45*30*24cm
Wireless Standard :
ZigBee 3.0 (IEEE 802.15.4)
Network Topology :
Mesh Network (Repeater Mode)
Available Standards :
EU (Type F) / US (Type B) / UK (Type G)
Max Power (EU/UK) :
3680W (16A)
Max Power (US) :
1100W-2200W (10A)
Standby Power :
<0.3W (High Efficiency)
Housing Material :
PC+ABS V0 Fireproof
Hub Compatibility :
Tuya / Smart Life ZigBee Gateway
Working Temp :
-20°C ~ 45°C
Description

Core Specs - B2B Focus

Feature Specification
Protocol ZigBee 3.0 (Stable & Low Latency)
Network Role Router Node (Mesh Signal Repeater)
Gateway Required Yes (Tuya / Smart Life Hub)
Max Load (EU/UK) 16A / 3680W (High Power)
Max Load (US) 10A / 1100W (Standard)
Energy Monitor Real-time KWh Tracking (EU/UK Models)
Material PC V0 Fire Retardant
Certificates CE, RoHS, FCC, EC-RED

Description - Business Pitch
Solve the "device offline" headache in large smart home projects. Unlike WiFi plugs that congest routers, our ZigBee Smart Sockets connect via a gateway to build a robust Mesh Network. Each plug acts as a signal repeater, extending coverage to distant sensors. Available in EU, US, and UK standards, this series is perfect for cross-border wholesalers and installers demanding industrial-grade stability and energy monitoring features.

ZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK StandardZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK StandardZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK StandardZigBee 3.0 Smart Wiring Devices Outlet Plug Mesh Repeater EU US UK Standard


FAQ (Installer & Technical Focus)

  • Q: Why use ZigBee plugs for whole-house projects?

    • A: ZigBee devices don't use the router's WiFi bandwidth. This allows you to install 100+ devices in one home with extreme stability and faster response times (<100ms).

  • Q: Do these plugs extend the network range?

    • A: Yes. As mains-powered ZigBee devices, they automatically act as "Mesh Repeaters," boosting the signal for battery-powered sensors (like door/motion sensors) further away from the hub.

  • Q: Which gateway is compatible?

    • A: They are fully optimized for Tuya ZigBee Gateways (Wired/Wireless) and compatible with standard ZigBee 3.0 coordinators (e.g., Home Assistant via Zigbee2MQTT).

  • Q: What is the "Group Control" feature?

    • A: It allows users (or installers) to group multiple plugs (e.g., "Living Room") and control them all with a single tap or voice command, ideal for complex lighting setups.

  • Q: Do all models have Energy Monitoring?

    • A: The EU (16A) and UK (16A) models support full Energy Monitoring. The US (10A) mini model focuses on compact control. Please check specific SKU details.
