WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports
Specifications
Brand Name :
SIXWGH
Model Number :
WHDZ15
Certification :
CE,RoHS,FCC,UL
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
USD+6-8+piece
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Supply Ability :
10000+piecex+10days
Delivery Time :
5-10days
Packaging Details :
165*95*48mm
Panel Size :
146mm x 86mm
Installation Distance :
120mm (Screw center)
Wiring Mode :
No Neutral (Capacitor) / N+L
Max Current (Socket) :
16A / 250V
Max Load (Switch) :
3-800W / Gang
Wireless Type :
WiFi 2.4G + RF433 (Optional)
Life Mechanical :
100,000 Times
Panel Material :
4mm Tempered Glass
USB Output :
5V 2.1A Total
Certificate :
CE, RoHS
Description

Core Specs - User Focus

Feature Specification
Design Luxury Glass Touch Panel

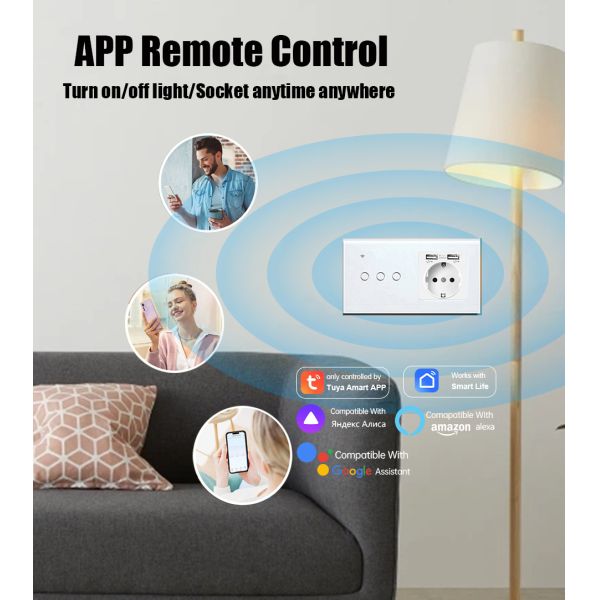

Control App / Touch / Voice
Socket Power 16A High Power
Charging Dual USB Ports
Voice Alexa / Google Home / Alice
Backlight ON/OFF Indicator
Timer Separate Schedules
Installation Fits Double Box

Description - Lifestyle Solution
Simplify your wall, upgrade your life. This sleek Glass Panel combines your light switches and power outlet into one elegant unit. Turn on the living room lights with a gentle touch or ask Alexa to do it. Charge your phone directly via the built-in USB ports—no adapter needed! The tempered glass surface is waterproof, scratch-proof, and easy to wipe clean, keeping your home looking modern and tidy.

WiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB PortsWiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB PortsWiFi Touch Switch Socket Smart Home Panel with No Neutral Wire 16A High Power and Dual USB Ports

FAQ (Installer & Market Focus)

  • Q: Does this fit standard European wall boxes?

    • A: It fits the 146mm standard or double 60mm round boxes widely used in Russia, Germany, and Spain. Please check your wall box distance before ordering.

  • Q: Do I need a neutral wire?

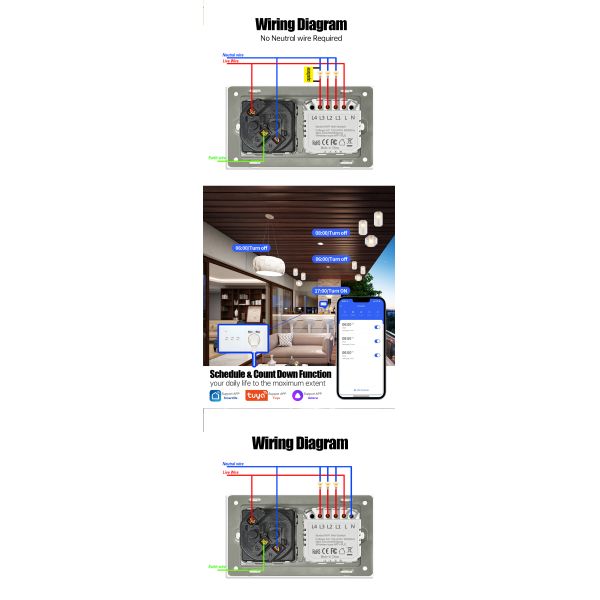

    • A: No! This model supports Single Live Wire installation. Just connect the included capacitor to the bulb to prevent flickering. We also offer a "Neutral + Live" version for new buildings.

  • Q: Can I control the socket and switch separately?

    • A: Yes, in the Tuya/Smart Life App, the light switch and the power socket appear as separate devices, allowing independent control and scheduling.

  • Q: Is the USB charging fast?

    • A: We have two versions: Standard dual USB (2.1A) and the upgraded 20W PD Fast Charging version (Type-C + USB-A) for modern smartphones.

  • Q: What is the maximum power for the socket?

    • A: The Schuko socket is rated at 16A (3500W), safe for high-power appliances like hair dryers, heaters, or vacuum cleaners.
