Ttlock Smart Door Lock Tuya Wifi App Electronic Aluminum Alloy Fingerprint Password

Feature

1.Compatible with various mortise to fit 99% doors. European 2885/3585/ 4585/6085/7085/92;

2.One-Touch-Access Biometric Fingerprint sensor on the reader,360 degree fingerprint recognition; 3.Suitable for sliding door, aluminium alloy glass door, wooden door, metal door, composite door;

4.Zinc alloy material, the shell is strong and can withstand impact;

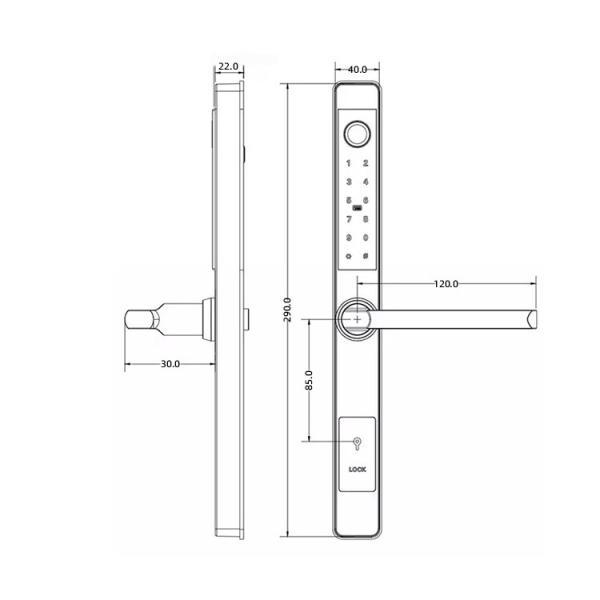

5.Unique stylish smaller panel, 315*42mm, it can be fit most of the wooden metal door or glass door; 6.Support with tuya and smart life app,no need gateway to connect wifi.

7.support remote unlocking , remote check,unlocking records and receive unlocking notice real-time . 8.Patented handle design,suitable for left/right door;

9.Back-up USB external power supply interface, in case the power is dead;

10.Support ODM/OEM; Custom panel logo,color box, IC card,user manual.

1. Products Description

3.
4.
5. Specification

6. Model	D5	Battery	4*AAA
   Finish	black/silver	Lock Size	250*60*20mm
   Static current	≦50uA	Dynamic current	≦180mA
   Administrators number	9	Fingerprint number	50
   Password number	100	RFID Card number	100
   Fingerprint sensor	Semiconductor	Fingerprint identification Angle	360°
   False Rejection Rate	≦0.1%	False Recognition Rate	≦0.0001%
   Reaction Time	≦0.1 Second	Power type	6V
   Emergrncy power	5VDC	Working temperature	-10℃~60℃
   Working Relative Humidity	20%~90%RH	Human vocie	Yes
   Keyboard	Touch standard 12-bit keyboard	Password Length	6-8 digits
   Phantom password	16 digits	Low voltage alarm	4.6+0.2V
   Unlock time	≦1Second	Version 2.0	TT Lock Blue tooth / Hotel
   Version 0.2	8 languages	Version P01	10 languages ( Chinese + French )
   Version 0.3	TUYA ZIGBEE	Version 0.4	TUYA Blue tooth
   Version 0.5	TT Lock WIFI	Version 1.0	TUYA WIFI
