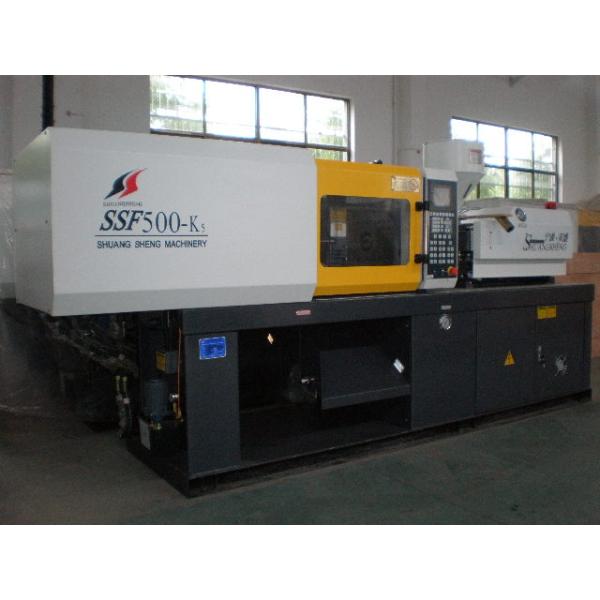

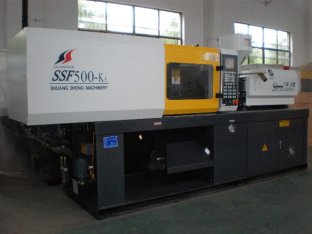

SSF500 Energy -saving plastic injection molding machine
SSF500 Energy -saving plastic injection molding machine
SSF500 Energy -saving plastic injection molding machine
SSF500 Energy -saving plastic injection molding machine
SSF500 Energy -saving plastic injection molding machine
SSF500 Energy -saving plastic injection molding machine
Specifications
Place of Origin :
China
Brand Name :
SSF500
Model Number :
SSF500
MOQ :
1 SET
Packaging Details :
Plywood or Containers
Delivery Time :
40days
Payment Terms :
30% deposit and balanced before shipment
Supply Ability :
80 sets/ Month
Description
Parameters of SSF500 plastic machine
Parameter Unit parameter value (SSF500)
Screw diameter mm A B
28 30
Screw L/D ratio L/D 19 17.7
shot volumn (theoretical) Cm3 70 80
injection weight(PS) g 64 73
plasticizing capacity g/s 6.9 7.7
injection rate g/s 43 49
injection pressure Mpa 192 167
screw speed rmp 200
clamp force KN 500
open stroke mm 250
space between bars (W*H) mm 290*270
max mould height mm 300
min mould height mm 100
ejector stroke mm 65
ejector force KN 20
ejector number PC 1
mould align diameter mm 100
max pump pressure Mpa 16
pump motor power KW 5.5
heating power KW 3.9
machine dimension m 3.2*1.1*1.6
machine weight T 1.9
hopper capacity Kg 20
oil tank capacity L 115
