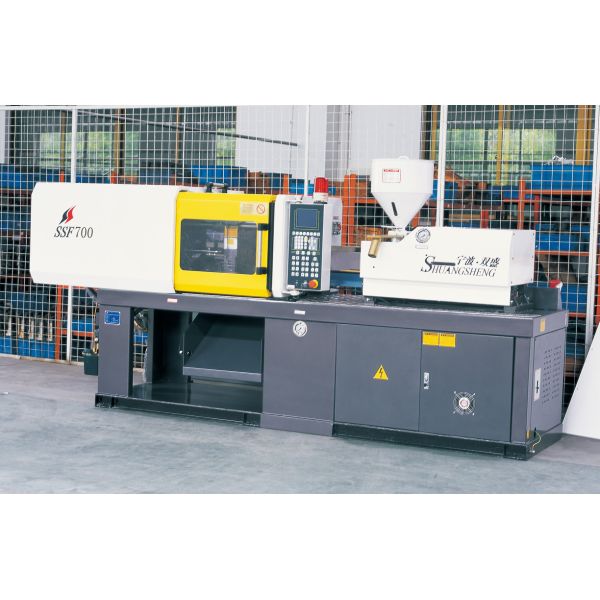

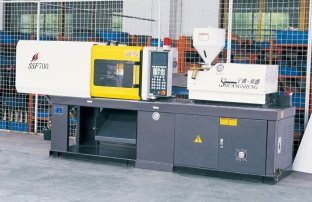

SSF700 Automatic plastic injection molding machine
SSF700 Automatic plastic injection molding machine
SSF700 Automatic plastic injection molding machine
SSF700 Automatic plastic injection molding machine
SSF700 Automatic plastic injection molding machine
SSF700 Automatic plastic injection molding machine
Specifications
Place of Origin :
China
Brand Name :
SSF700
Model Number :
SSF700
MOQ :
1 SET
Packaging Details :
Plywood or Containers
Delivery Time :
40days
Payment Terms :
30% deposit and balanced before shipment
Supply Ability :
80 sets/ Month
Description
Parameters of SSF700 plastic machine
Parameter Unit Parameter Value (SSF700)
Screw diameter mm A B
34 36
Screw L/D ratio L/D 18.8 17.7
shot volumn (theoretical) Cm3 113 127
injection weight(PS) g 103 115
plasticizing capacity g/s 11.6 13
injection rate g/s 86 96
injection pressure Mpa 171 153
screw speed rmp 180
clamp force KN 700
open stroke mm 270
space between bars (W*H) mm 315*300
max mould height mm 320
min mould height mm 150
ejector stroke mm 80
ejector force KN 27
ejector number PC 1
mould align diameter mm 100
max pump pressure Mpa 16
pump motor power KW 7.5
heating power KW 5.1
machine dimension m 3.6*1.2*1.65
machine weight T 2.2
hopper capacity Kg 20
oil tank capacity L 130
