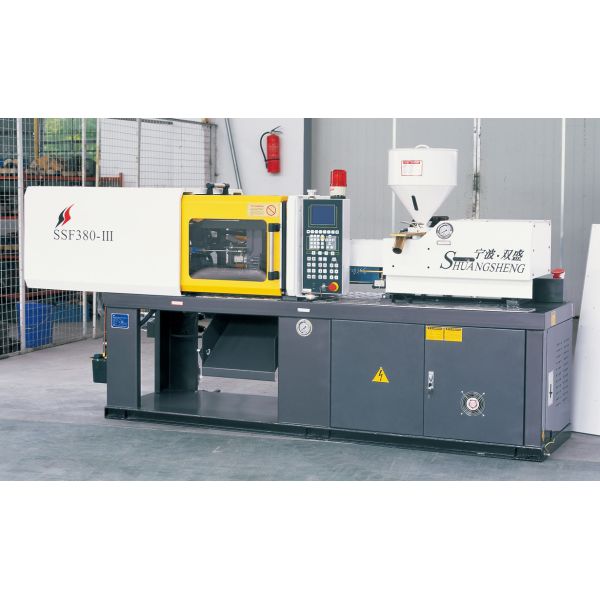

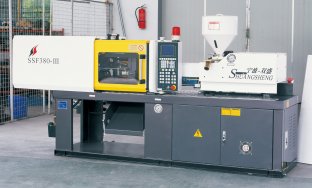

SSF380 Energy -Saving plastic injection molding machine
SSF380 Energy -Saving plastic injection molding machine
SSF380 Energy -Saving plastic injection molding machine
SSF380 Energy -Saving plastic injection molding machine
SSF380 Energy -Saving plastic injection molding machine
SSF380 Energy -Saving plastic injection molding machine
Specifications
Place of Origin :
China
Brand Name :
SSF380
Model Number :
SSF380
MOQ :
1 SET
Packaging Details :
Plywood or Containers
Delivery Time :
40days
Payment Terms :
30% deposit and balanced before shipment
Supply Ability :
100 sets/ Month
Description
Parameters of SSF380 plastic machine
Parameter Unit Parameter Value (SSF380)
Screw diameter mm A B
27 30
Screw L/D ratio L/D 18.4 16.5
shot volumn (theoretical) Cm3 48 58
injection weight(PS) g 44 53
plasticizing capacity g/s 4.3 5.9
injection rate g/s 35 43
injection pressure Mpa 187 151
screw speed rmp 170
clamp force KN 380
open stroke mm 235
space between bars (W*H) mm 240*240
max mould height mm 270
min mould height mm 80
ejector stroke mm 60
ejector force KN 17.5
ejector number PC 1
mould align diameter mm 80
max pump pressure Mpa 14
pump motor power KW 4
heating power KW 3.2
machine dimension m 2.9*1.0*1.4
machine weight T 1.35
hopper capacity Kg 14
oil tank capacity L 90
