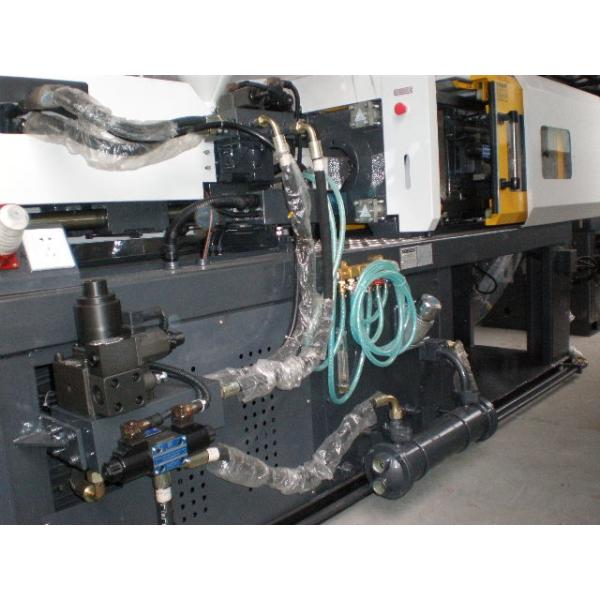

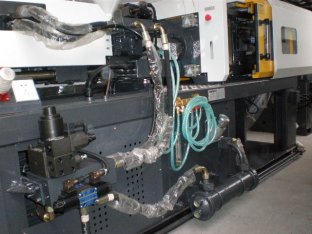

SSF500 Small Sized plastic injection molding machine
SSF500 Small Sized plastic injection molding machine
SSF500 Small Sized plastic injection molding machine
SSF500 Small Sized plastic injection molding machine
SSF500 Small Sized plastic injection molding machine
SSF500 Small Sized plastic injection molding machine
Specifications
Place of Origin :
China
Brand Name :
SSF500
Model Number :
SSF500
MOQ :
1 SET
Packaging Details :
Plywood or Containers
Delivery Time :
40days
Payment Terms :
30% deposit and balanced before shipment
Supply Ability :
80 sets/ Month
Description
Parameters of SSF500 plastic machine
Parameter Unit parameter value (SSF500)
Screw diameter mm A B
28 30
Screw L/D ratio L/D 19 17.7
shot volumn (theoretical) Cm3 70 80
injection weight(PS) g 64 73
plasticizing capacity g/s 6.9 7.7
injection rate g/s 43 49
injection pressure Mpa 192 167
screw speed rmp 200
clamp force KN 500
open stroke mm 250
space between bars (W*H) mm 290*270
max mould height mm 300
min mould height mm 100
ejector stroke mm 65
ejector force KN 20
ejector number PC 1
mould align diameter mm 100
max pump pressure Mpa 16
pump motor power KW 5.5
heating power KW 3.9
machine dimension m 3.2*1.1*1.6
machine weight T 1.9
hopper capacity Kg 20
oil tank capacity L 115
