IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG1206FI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Input Voltage :
12~57 V DC
Ethernet Port :
6pcs
MAC Address Table :
2K
Switching Capacity :
12Gbps
Safety Class :
IP30
Fiber Port :
2 SFP Fiber Ports
Description

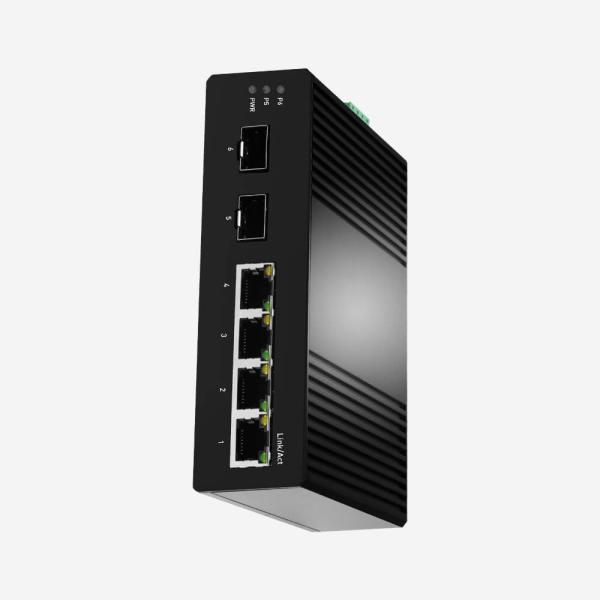

Industrial Ethernet Switch With 2 Gigabit Fiber Ports And 4 Gigabit RJ45 Ports SR-SHG1206FI

Industrial Ethernet Switch With 2 Gigabit Fiber Ports And 4 Gigabit RJ45 Ports

Description Of The Best Unmanaged Ethernet Switch:

The SR-SHG1206FI is an industrial Ethernet switch with 10/100/1000 Mbps 4 Ethernet ports and 2 10/100/1000 Mbps adaptive SFP fiber ports. Small size (135 mm *99.7 mm *38 mm), better adapted to industrial environments.

The Industrial unmanaged switch is built to withstand harsh industrial environments, with a working humidity range of 0%-95%RH. This means that it can operate effectively even in environments with high humidity levels.

Features Of The Best Unmanaged Gigabit Switch:

  • Provide 4 10/100/1000Mbps RJ45 ports and 2 10/100/1000Mbps SFP fiber ports.
  • Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab.
  • IP30 protection reduces the effects of dust.
  • Aluminum alloy shell, sturdy and durable.
  • Multiple mounting options, such as DIN rail mounting and wall mounting.

Product Spectification Of The Best Unmanaged Network Switch:

SR-SHG1206FI
Power Supply 12~ 57 VDC/ 2.5A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 4×10/100/1000Mbps RJ45 ports, 2×SFP ports
Indicators 4 status indicators Link/ACT, 2 SFP fiber port indicators (Link), PWR
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 135*99.7*38 mm
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Installation DIN rail/wall mount
DIP switch

Support one-click ring network configuration, one-click VLAN

isolation configuration
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5

Product Application Of The 4 Port Unmanaged Switch:

IP30 Rate, CE ROHS Industrial Gigabit Unmanaged Ethernet Switch With 2 SFP Fiber Ports 4 RJ45 Ports
