IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG1210FPI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Dimension :
155*114.1*51.7 mm
Poe Standard :
IEEE802.3 Af/at
MAC Address Table :
4K
Switching Capacity :
20Gbps
Forwarding Rate :
14.88Mpps
Transmission Rate :
10/100/1000Mbps
Description

Switch Poe Gigabit, Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports And 2G SFP Ports SR-SHG1210FPI

Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports And 2G SFP Ports

Description Of The Unmanaged Industrial Ethernet Switch:

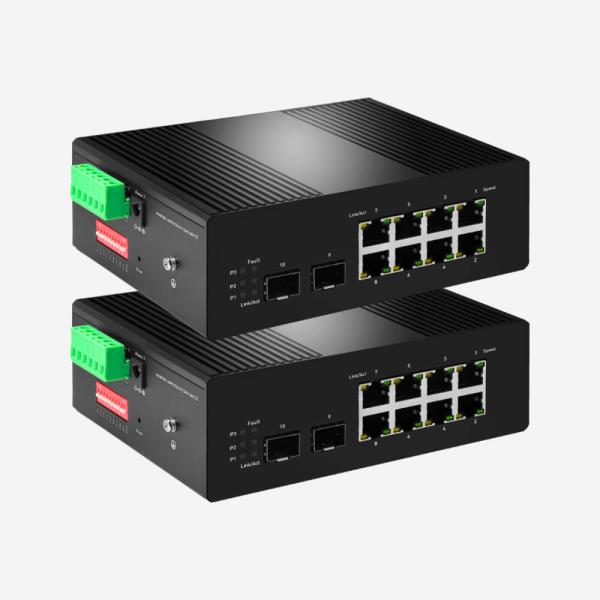

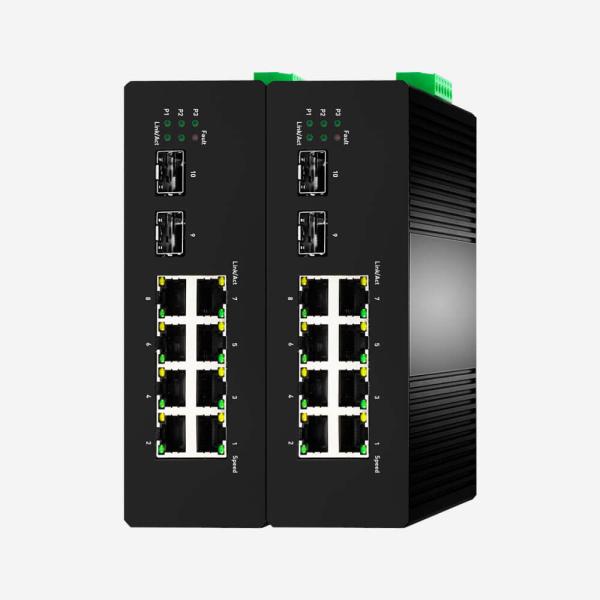

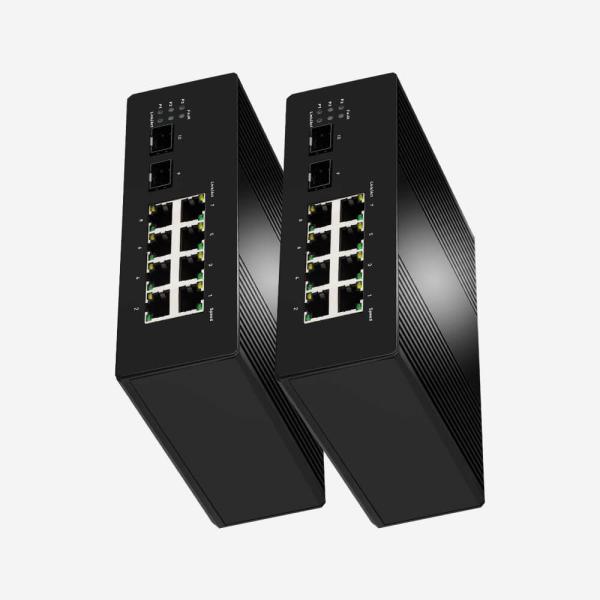

The SR-SHG1210FPI is an industrial Ethernet unmanaged PoE switch with eight 10/100/1000 Mbps PoE ports and two 10/100/1000 Mbps SFP fiber ports. It is suitable for security monitoring, wireless networking, fiber access and other application scenarios.

Features Of The Industrial Unmanaged Switch:

  • Provide 8 10/100/1000Mbps RJ45 ports and 2 10/100/1000Mbps SFP fiber ports.
  • Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.3af,IEEE802.3at.
  • 8 POE ports support 802.3af/at,per port up to 30W Poe power budget.
  • Industrial grade working temperature is -40℃~75℃.
  • EMC high protection level, no fear of various harsh environments.

Product Spectification Of The Industrial Ethernet Switch 8 Port :

SR-SHG1210FPI
Power Supply 44~ 57 V DC/ 3A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at
Ports 8×10/100/1000Mbps PoE ports +2×SFP ports
Indicators 8 status indicators Link/ACT, 8 speed indicators, 2 SFP port indicators (Link), PWR
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 155*114.1*51.7 mm
MAC Address Table 4K
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Installation DIN rail/wall mount
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5

Product Application Of The Switch Poe Industrial :

IEEE802.3 Af/At Industrial Gigabit Ethernet Switch With 8 Gigabit PoE Ports 2G SFP Ports
