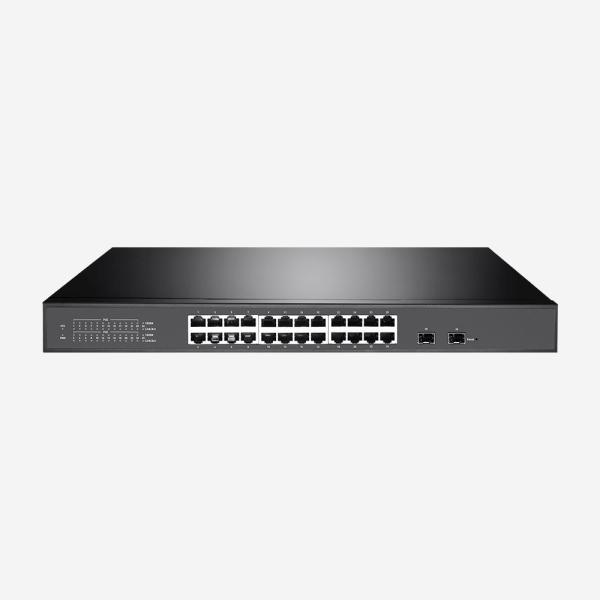

IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
Specifications
Brand Name :
Sirivision
Model Number :
SG2226FP
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Delivery Time :
5-8 work days
Certification :
CE, ROHS, FCC, UKCA
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Packaging Details :
1pc in box, 1pc Warranty Card in box.
Product Name :
24GE 2SFP Easy Smart Gigabit PoE Switch
Total Power :
400 W
PoE Power :
380 W
PoE Port :
24pcs
Fiber Port :
2
RJ45 Ports :
24
Description

IEEE 802.3af Standards Easy Smart Gigabit Switch With 24 PoE Ports And 2 SFP Fiber Ports SG2226FP

Easy Smart Gigabit PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports SG2226FP

Description Of The 24 Port Poe Network Switch:

The SR-SG2226FP is a Gigabit Web Smart Managed Switch with 24 Gigabit RJ45 ports and 2 Gigabit SFPs, all RJ45 ports support 802.3af/at (PoE+) standard and support up to 30W per port for a total of 400W.


The SR-SG2226FP supports abundant L2 management features such as 802.1Q VLAN, port isolation, port mirroring, QOS, storm control, etc. With the new hardware and software platform, the system provides users with new technical features and solutions in terms of secure access policy, multi-service support, and easy management and maintenance.

Features Of The Layer 2 Poe Switch:

  • Support IEEE 802.3i, 802.3u, 802.3ab, 802.3z,802.3x, 802.3at, 802.3af/at, 802.3az.
  • Provide 24 10/100/1000Mbps RJ45 ports, 2 SFP fiber ports.
  • 24 POE ports support 802.3af/at, per port up to 30W with 380W Poe budget.
  • IP30 protection can reduce the impact of dust.
  • Support the port POE power-off function, you can turn off or turn on the POE power supply function at will, and support the Watch Dog watchdog function.
  • Support 8K MAC address.

Product Spectification Of The Switch Manageable 24 Port:

SR-SG2226FP
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az,802.3at,802.3af
Ports 24×10/100/1000Mbps RJ45+2×SFP
Indicators

Electrical port indicators, SFP fiber port indicators, power input indicator,

system running indicator.
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
Dimensions 440*290*44.5 mm
PoE port 24 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
PoE power 380W
Total power 400W
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 52Gbps
Packet Forwarding Rate 38.688Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 10KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)		 • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS


Product Application Of The Switch Poe Manageable:

IEEE 802.3af Easy Smart PoE Switch With 24 PoE Ports And 2 SFP Fiber Ports
