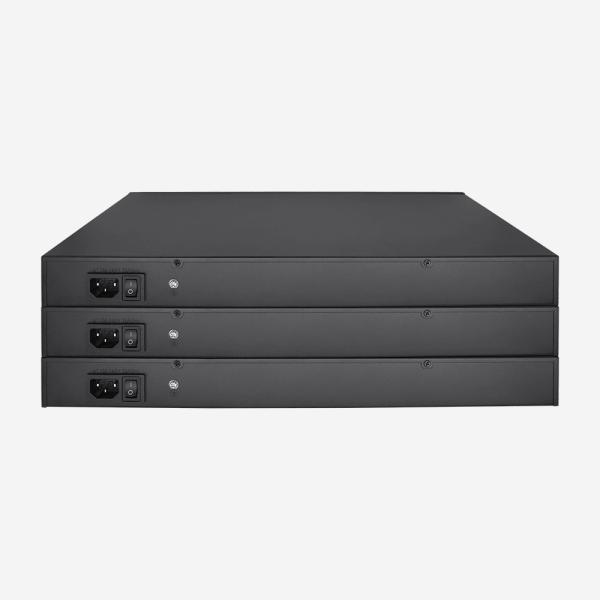

8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SG2428FCP
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
24G 4SFP Smart Poe Switch
SFP Fiber Port :
4 Ports
MAC Address Table :
8K
Total Power :
400 W
Manage :
Layer 2
Jumbo Frame :
10K
Description

24 RJ45 Ports Smart Poe Switch With 4 SFP Fiber Ports SR-SG2428FCP

Easy Smart Full Gigabit PoE Switch With 24 10/100/1000M PoE Ports, And 4 SFP Fiber Ports

Description Of The Managed Switch:

SR-SG2428FCP is an smart managed PoE switch with 24 10/100/1000Mbps RJ45 ports, 4 Gigabit Combo ports and 4 SFP fiber ports.24 RJ45 ports can support PoE power supply, IEEE 802.3af, IEEE 802.3af compliant. Provides port/802.1p/ DSCP-based QoS to keep latency-sensitive traffic running smoothly and without jitter.

Features Of The Poe Switch 24 Port:

  • 24 POE ports support 802.3af/at, per port up to 30W and 380W Poe budget in total.
  • Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az, IEEE802.3af, IEEE802.3at.
  • Support green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet)
    management to optimize power consumption.
  • Provide 24 10/100/1000Mbps Auto-sensing RJ45 ports, 4 1000Mbps SFP fiber ports, and 4 1000Mbps COMBO ports.
  • Full-duplex flow control conforms to IEEE 802.3x standard, and half-duplex adopts Backpressure standard.
  • Provide convenient and easy-to-use WEB visual management, support MQTT cloud.

Product Spectification Of The Unifi Managed Switch:

SR-SG2428FCP
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z
Ports

24 10/100/1000Mbps RJ45 ports, 4 Gigabit sfp fiber ports
Indicators

Electrical port indicators, SFP fiber port indicators, power input indicator,

system running indicator.
Network
medium		 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
Dimensions 440*290*44.5 mm
PoE port 24 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
PoE power 380 W
Total power 400 W
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.664Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 10KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)		 • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS

Product Application Of The Switch Enterprise 24 Poe:

8K MAC 24 Ports Smart Poe Switch With 4 Combo Ports 4 SFP Fiber Ports
