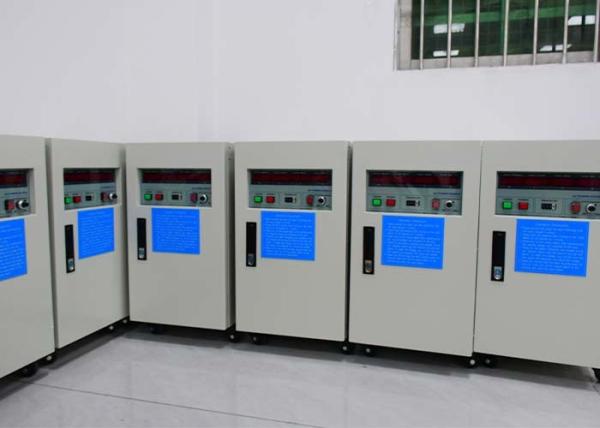

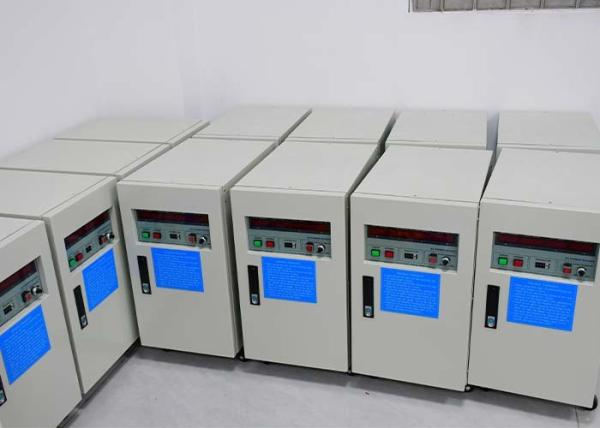

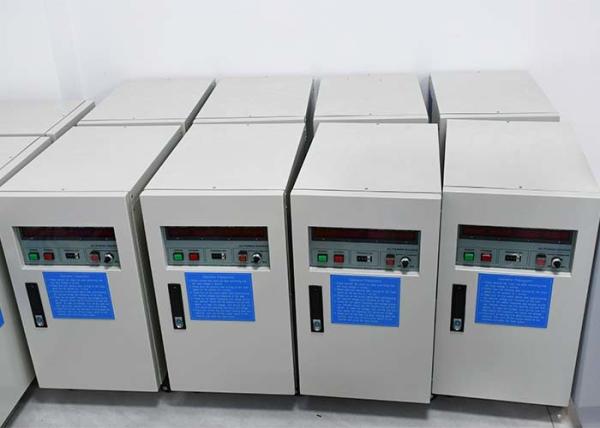

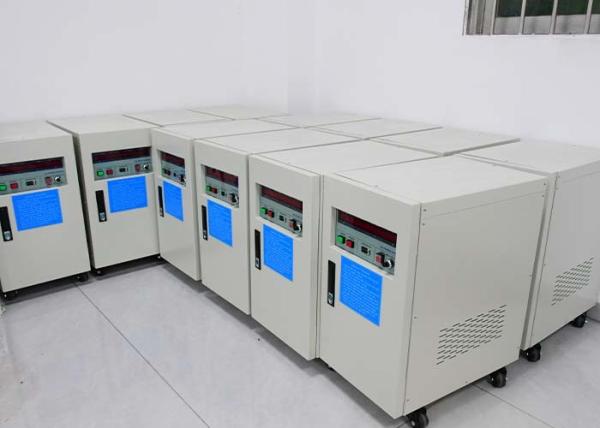

Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Single Phase Programmable AC Power Source 5KVA – 0-300V 40-499.9Hz LED Display
Specifications
Brand Name :
Sinuo
Model Number :
SNP-5KVA
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Power Capacity :
5KVA
Input Phase :
Single phase
Voltage :
220V±15%
Waveform :
SINEWAWE
Low gear maximum current (A) :
42A (0-150V)
High gear maximum current (A) :
21A (150-300V)
Low gear voltage :
0-150V
High gear voltage :
0-300V
Description

Single Phase Programmable AC Power Source 5KVA – 0-300V, 40-499.9Hz LED Display

Product Overview:

This 5KVA programmable AC power source is designed to meet a wide range of industrial, R&D, and laboratory power supply needs. It offers high-precision, high-reliability performance, with flexible voltage and frequency adjustment, making it ideal for electrical testing, load simulation, and power environment evaluation.

Whether you need lean manufacturing support, load optimization, or high-performance testing, this power supply system delivers safe, efficient, and reliable power to match your application.

Key Features:

Wide Voltage Range: 0–150V (low gear), 0–300V (high gear), continuously adjustable
Flexible Frequency Output: 50Hz, 60Hz, or 40–499.9Hz continuously adjustable
High Capacity: Can withstand instantaneous currents up to 3× rated current
Fast Protection: One-key emergency stop; response time ≤2ms
Comprehensive Protections: Includes overvoltage, overcurrent, overload, undervoltage, short circuit, overtemperature
High Precision Control: ≤0.01% frequency stability, <2% waveform distortion
User-Friendly Display: Digital LED interface with 4-digit voltmeter, ammeter, wattmeter, and frequency meter

Technical Parameters:

Item Parameter
Output capacity 5KVA
AC input
Input Phase Single phase
Waveform SINEWAWE
Voltage 220V±15%
Frequency fluctuation range 50 or 60HZ±10%
power factor ﹥0.9
AC output
Output Phase Single phase
Waveform SINEWAWE
Low gear voltage 0-150V continuously adjustable
High gear voltage 0-300V continuously adjustable
Frequency 50Hz, 60Hz, 40-499.9HZ continuously adjustable
Frequency stability ≤0.01%
High gear maximum current (A) 21A (150-300V)
Low gear maximum current (A) 42A (0-150V)
Whole machine performance
Power regulation rate ﹤1%
Load regulation rate ﹤1%
Waveform distortion ﹤2% (under line resistive load)
Insulation resistance DC500V≥20MΩ
Withstand voltage insulation AC 1800V 5mA/1 min
Efficiency ﹥85%
Response time ≤2ms
Crest Factor 3:1
Protection device With multiple protections such as overvoltage, overcurrent, overload, input undervoltage, overtemperature, short circuit, etc.
Display
Display interface Digital LED display
Voltage 4 digits, digital voltmeter, resolution 0.1V
Current 4 digits, digital ammeter, resolution 0.1A
Power 4 digit, digital wattmeter
Frequency 4 digit number, digital frequency meter
Equipment dimensions H*D*W 675*530*350
Equipment weight 70kg
