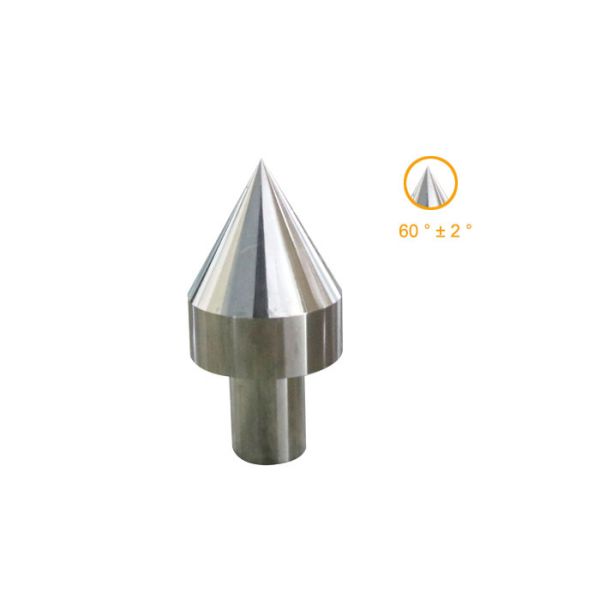

75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
75g Test Punch With 60° Conical Tungsten Carbide Tip IEC60335-2-24 Clause 22.116
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-28
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
100 pcs per month
Delivery Time :
3~5 Days
Packaging Details :
Aluminium Box
Standard :
IEC 60335-2-24
Clause :
22.116
Puch Mass :
75g±5g
Tip Angle :
60°±2°
Material :
Tungsten carbide
Shape :
Conical
Description

IEC60335-2-24 Clause 22.116 75g Test Punch with 60° Conical Tungsten Carbide Tip

Standards & Clauses:

Conforms to IEC60335-2-24 clause 22.116, IEC 60598-2-3 clause3.6.5, IEC 60335-2-6 clause 22.120 and etc.

Samples and Restrictions:

Accessible glass panels of household appliances, electrical accessories, lamps, etc.

Application:

It is used for the shattering test of accessible glass panels.

Test Process:

The sample under test is brolen by means of a test punch having a head with a mass of 75 g ±5 g and a conical tungsten carbide tip with an angle of 60°±2°. The punch shall be positioned approximately 13 mm in from the longest edge of the glass at the midpoint of that edge. The punch is them hit by a hammer so that the glass breaks.

Structure:

Item Parameters
Mass 75g ± 5g
Tip angle 60 ° ± 2 °
Tip shape Conical
Material Tungsten carbide
