IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
Specifications
Brand Name :
Sinuo
Model Number :
SN1102D
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
20 days
Packaging Details :
Plywood Case
Applied Standard :
IEC 60335-2-30
Applied Clause :
Clause 11.2 Figure 103
Material :
Black Plywood
Dimensions :
760 × 470 × 470 mm
Plywood Thickness :
Approx. 20 mm
Hole Diameter :
15 mm
Description
IEC 60335-2-30 Room Heater Test Corner for Surface Temperature Rise Test
The IEC 60335-2-30 Test Corner is a specialized testing structure designed to evaluate the surface temperature rise of electric room heaters during heating tests. The equipment is manufactured in strict accordance with Clause 11.2 and Figure 103 of IEC 60335-2-30 (2009 + A1:2016 + A2:2021).
This test corner simulates the corner environment of a room, allowing laboratories and manufacturers to measure the temperature rise on surrounding walls and floor surfaces when heaters operate under normal conditions. It is widely used for safety compliance testing of household heating appliances, including convection heaters, fan heaters, panel heaters, and radiant heaters.

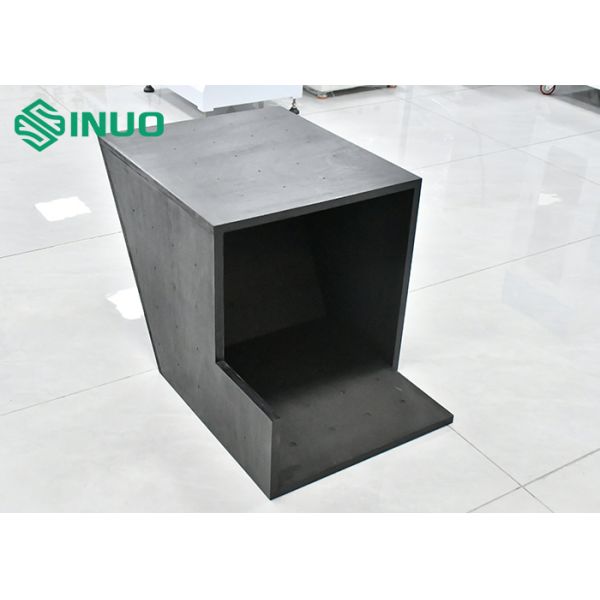

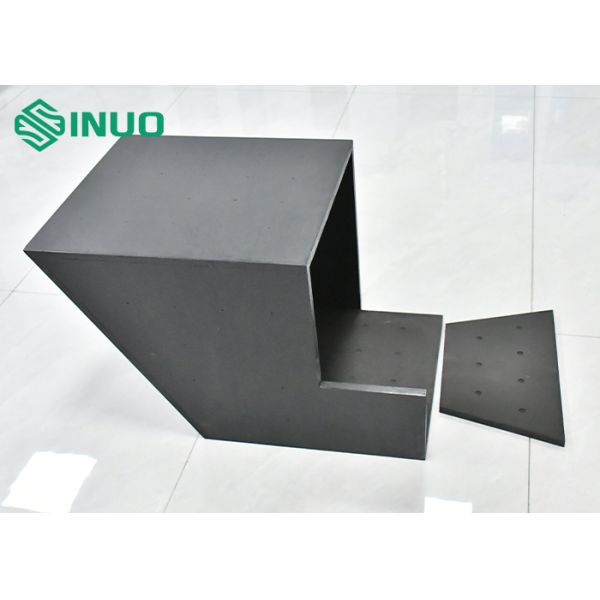

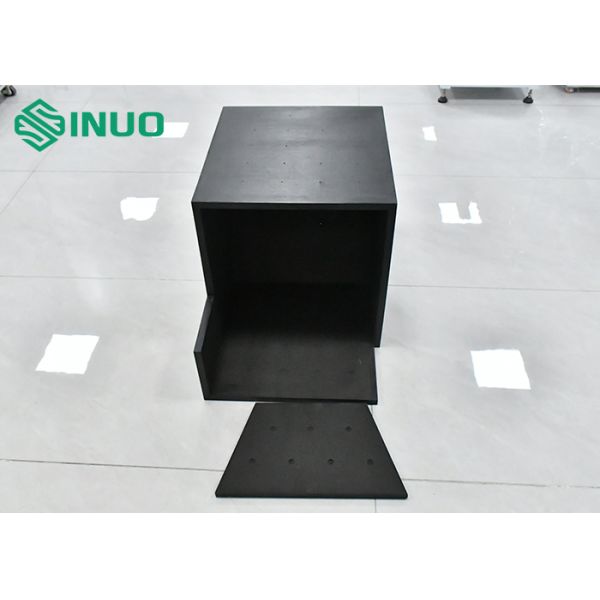

The structure is made of high-quality plywood painted in dull black, which minimizes reflection and ensures accurate heat absorption during testing. The evenly distributed drilled holes allow for flexible thermocouple placement, enabling precise temperature monitoring across the test surfaces.
Applications
The test corner is mainly used in safety testing laboratories, appliance manufacturers, and certification bodies to verify compliance with international standards.
Key Features
  • Compliant with IEC Standard: Designed according to IEC 60335-2-30 Clause 11.2 and Figure 103 requirements.
  • Realistic Room Corner Simulation: Simulates a room corner structure including floor and two walls, enabling accurate heater testing.
  • Dull Black Coating: Both the inside and outside surfaces are painted matte black to ensure consistent thermal absorption.
  • Flexible Thermocouple Installation: Pre-drilled holes arranged at 10 cm intervals allow convenient placement of temperature sensors.
  • Durable Construction: Built with approximately 20 mm thick plywood, ensuring structural stability and long service life.
Technical Specifications
Item Specification
Standard IEC 60335-2-30:2009 + AMD1:2016 + AMD2:2021
Dimensions 760 × 470 × 470 mm
Material Plywood
Plywood Thickness Approx. 20 mm
Drilling Interval 100 mm
Hole Diameter 15 mm
Surface Treatment Painted black inside and outside
