IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
Specifications
Brand Name :
Sinuo
Model Number :
SN1901C
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 per month
Delivery Time :
30 Days
Packaging Details :
Plywood case
Pressure Range :
0–2000 N
Load Sensor Accuracy :
Class 0.5
Test Frequency :
10–20 cycles/min
Cylinder Diameter :
Φ50 mm
Cylinder Stroke :
125 mm
Force Time :
0–99.9 s adjustable
Cycle Counter :
0–999999 programmable
Opening Angle :
≥70° adjustable
Description
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine

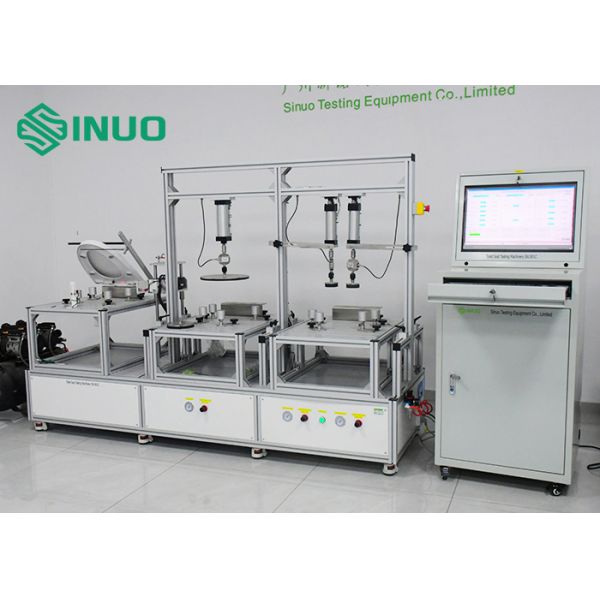

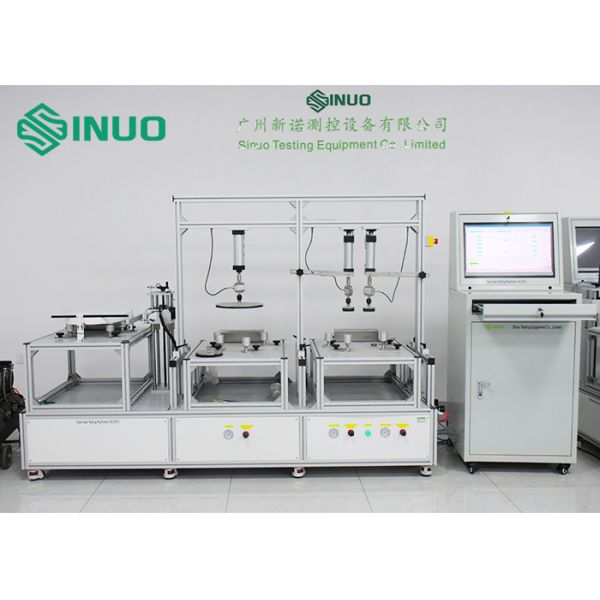

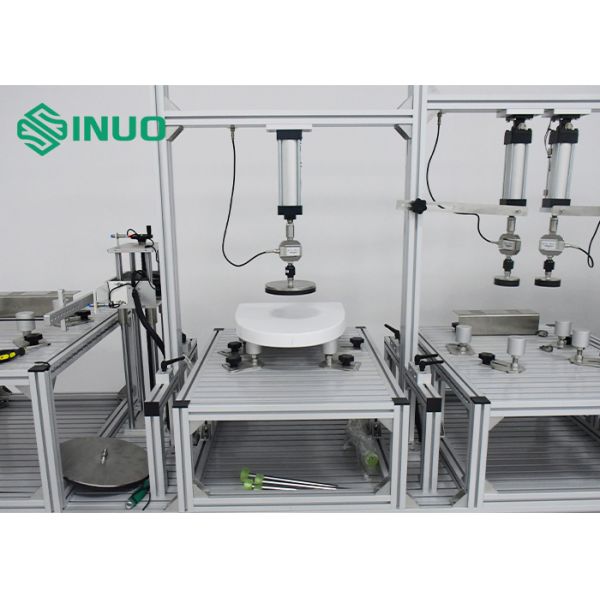

The Toilet Seat Cover Mechanical Strength and Durability Testing Machine is specially designed to evaluate the mechanical performance and service life of toilet seats and covers used in intelligent toilet appliances and sanitary products. This equipment simulates real operating conditions including opening and closing cycles, impact loads, static pressure, and side forces to verify the structural reliability of toilet seat assemblies.
Developed in accordance with IEC 60335-2-84 requirements, this testing system ensures that toilet seat components used in household and similar appliances meet international safety and durability standards. The machine features a servo motor drive system combined with computer and software control, enabling precise control of force, motion angle, and testing cycles.
Main Test Functions
  • Opening and Closing Life Cycle Test: Repeatedly opens and closes toilet seat and cover to preset angles to simulate long-term daily usage, evaluating hinge durability and structural stability
  • Slow Closing Performance Test: Measures closing time to evaluate damping mechanism and soft-closing performance
  • High Pressure Test: Forces seat cover to open and close repeatedly under controlled conditions to assess slow-drop mechanism reliability
  • Static Load Strength Test: Applies vertical load through steel and rubber pressing device to simulate user weight
  • Impact Resistance Test: Applies repetitive dynamic loads to toilet seat surface at specified frequency
  • Side Force Durability Test: Applies up to 890 N force alternately to both sides of seat to simulate uneven loads
Key Features
  • Designed according to IEC 60335-2-84 international testing standard
  • Computer and software control system for easy parameter setting
  • High-precision servo motor drive ensures stable motion control
  • Multiple independent test stations for improved testing efficiency
  • Adjustable test parameters including force, angle, and cycle times
  • High accuracy load sensor (0-2000N, class 0.5)
  • Strong aluminum frame structure for long-term laboratory use
  • Automatic data recording and real-time monitoring
Technical Specifications
Parameter Specification
Test Stations Three independent stations
Pressure Range 0-2000 N
Load Sensor Accuracy Class 0.5
Test Frequency 10-20 cycles/min
Cylinder Diameter Φ50 mm
Cylinder Stroke 125 mm
Force Angle Adjustable
Force Time 0-99.9 s adjustable
Opening Angle ≥70° adjustable
Motor 400 W servo motor
Control Method Computer + software control
Structure Aluminum frame with test platform
Cycle Counter 0-999999 programmable
Power Supply AC220V 60Hz
Equipment Size Approx. 2500 × 700 × 1400 mm
Frequently Asked Questions
What standard is used for toilet seat mechanical strength testing?
The testing equipment is designed according to IEC 60335-2-84, which specifies safety requirements for toilet appliances and their mechanical components.
What tests can this machine perform?
The machine can perform opening and closing durability tests, slow closing performance tests, static load tests, impact resistance tests, and side force strength tests.
What control system does the equipment use?
The equipment uses a computer and dedicated software control system, allowing precise parameter adjustment and automatic data recording.
Who typically uses this equipment?
The machine is widely used by toilet seat manufacturers, appliance laboratories, and certification testing institutions.
Product Images
IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine IEC 60335-2-84 Toilet Seat Cover Mechanical Strength & Durability Test Machine
