IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
IEC 60335-2-84 Toilet Seat Testing Machinery With Computer Control Opening And Closing Test
Specifications
Brand Name :
Sinuo
Model Number :
SN1901OC
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 per month
Delivery Time :
35 days
Packaging Details :
Plywood Case
Test station :
3 workstations
Drive Method :
Servo motor
Opening Angle :
0–90.00°, adjustable
Opening/Closing Speed :
0.5–1.0 s (adjustable)
Soft-Close Time Resolution :
0.01 s
Cycle Counter :
0–999,999,999 cycles
Standard :
IEC 60335-2-84
Clause :
21.103.1&21.103.2
Description

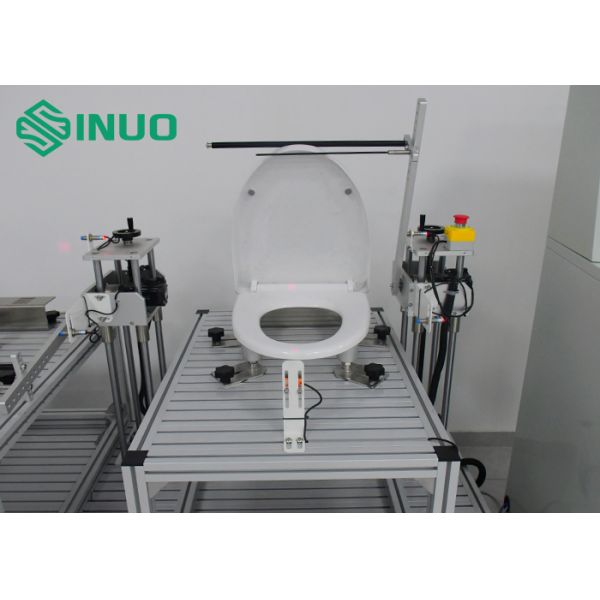

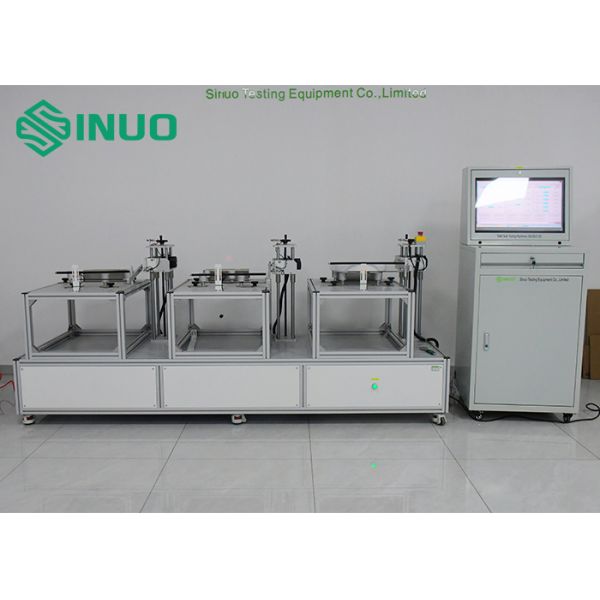

IEC 60335-2-84 Toilet Seat Testing Machinery
Computer-controlled opening and closing test equipment designed to evaluate the mechanical strength and durability of toilet seats under repeated stress conditions during normal use.
Product Overview
This testing machinery complies with IEC 60335-2-84 "Household and similar electrical appliances - Safety - Part 2-84: Particular requirements for toilet appliances" clauses 21.103.1 & 21.103.2. It verifies whether toilet seats possess adequate mechanical strength and are constructed to withstand repeated mechanical stresses expected during normal operation.
Technical Specifications
Test Stations Three independent stations operating simultaneously (opening/closing, slow falling, and forced opening/closing tests)

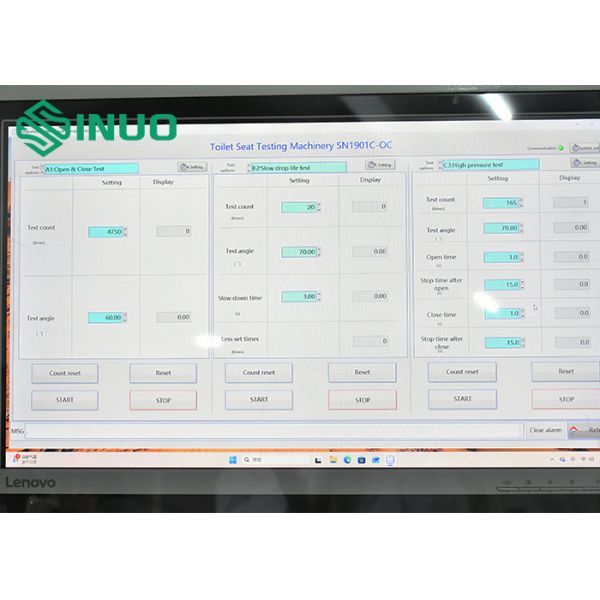

Control Method Computer with software control
Drive Mechanism Servo motor drive for opening/closing, slow falling, and forced pressure tests (fixtures require replacement)
Test Frequency 10-20 times/minute
Opening/Closing Angle ≥70° (adjustable)
Opening/Closing Time 0-99.9 seconds (adjustable)
Drive Motor Servo motor + gearbox
Structure Industrial aluminum frame with platform
Dimensions Approximately 2500 × 700 × 1400 mm
Test Duration 0-999,999 cycles (programmable)
Power Supply AC220V, 50Hz, 2KW
Testing Capabilities
  • Opening and closing cycle testing of seat rings
  • Slow-falling function life testing
  • Forced opening and closing endurance testing
