IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester
IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester
Specifications
Brand Name :
Sinuo
Model Number :
SN2910
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood case
Test stations :
Single station
Control mode :
PLC intelligent control
Specimen size :
Length 200 ± 5 mm, placed on base plate
Drive mode :
Motor drive
Force range :
10–4894 N
Test speed :
10–250 mm/min
Test stroke :
0–600 mm
Compression block :
(50 ± 0.5) × 50 × 50 mm
Description

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester



Product information:


Applicable Standards: IEC 61386-1:2017 <Conduit systems for cable management – Part 1: General requirements> Clause 10.2

Specimens & Scope: Suitable for metal, non-metallic and composite conduits used to protect and manage insulated wires and/or cables for electrical or communication systems up to AC 1000 V and/or DC 1500 V.

Test Purpose: To evaluate whether the mechanical performance of conduits after compression meets the standard requirements.

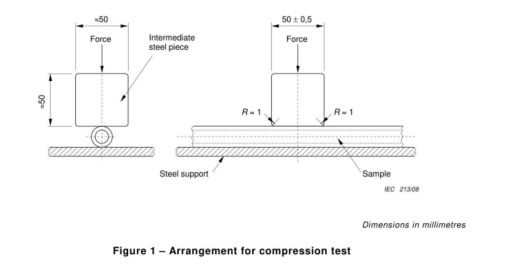

Test Principle:

A PLC control system drives the motor to apply force via a sensor. The sensor is connected to a steel block of (50 ± 0.5) × 50 mm.

The specified force is applied to the specimen within (30 ± 3) s and maintained for (60 ± 2) s. The outer diameter of the specimen is measured during loading, and the deformation shall not exceed 25% of the original outer diameter.

After unloading, the device automatically returns. After (60 ± 2) s, the outer diameter is measured again, and the deformation shall not exceed 10% of the original outer diameter.

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester

Technical parameters:


No.

Item

parameters

1

Power supply

AC 220 V ±10%, 50–60 Hz

2

Test stations

Single station

3

Control mode

PLC intelligent control, touch screen operation

4

Specimen size

Length 200 ± 5 mm, placed on base plate

5

Drive mode

Drive mode

6

Force range

10–4894 N, Resolution 0.1 N, Accuracy class 2.5, compliant with the force values specified in Table 4 of the standard.

IEC 61386-1:2017 Clause 10.2 Conduit Compression Resistance Tester

7

Stroke

0–600 mm

8

Test speed

10–250 mm/min, adjustable

9

Compression block

(50 ± 0.5) × 50 × 50 mm (L × W × H), bottom edges chamfered R1

10

Base plate

Steel plate ≥ 10 mm, size 500 × 500 mm

11

Constant force time

0–999.9 s, presettable

12

Test procedure

(30 ± 3) s loading → (60 ± 2) s constant force → release

13

Conduit diameter measurement

Manual

14

Dimensions

approx. 1000 × 600 × 1350 mm (W × H × D)

15

Weight

150 kg

16

Operating Environment

temperature: 23 ± 2 °C
Humidity: 30%–90% RH
