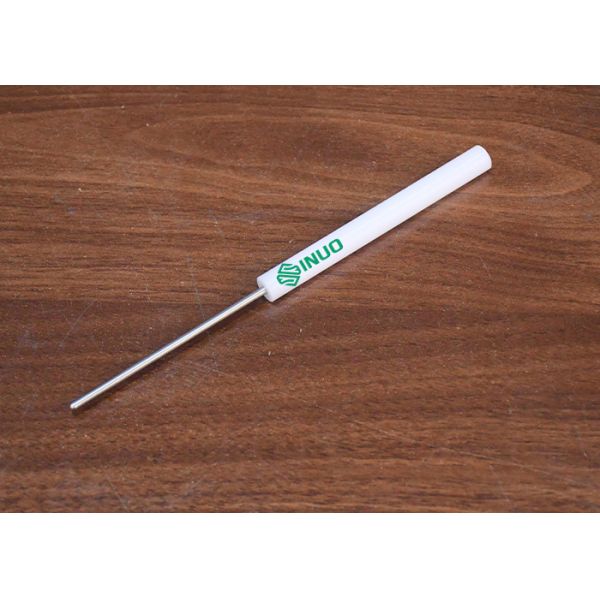

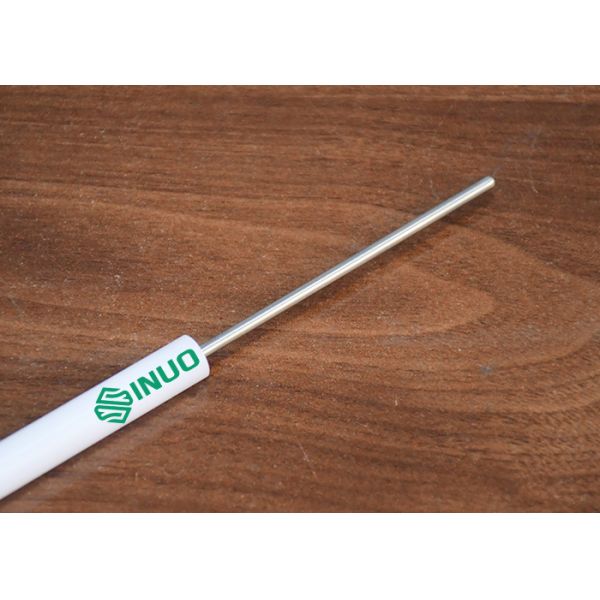

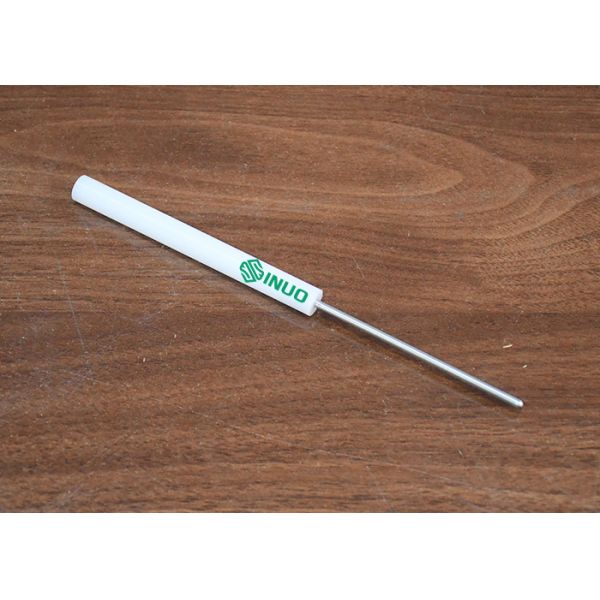

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN2126
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
3 Days
Packaging Details :
Aluminium Box
Applied Standard :
IEC 60884-1
Applied Clause :
Clause 24.12
Diameter :
3mm
Radius :
1.5 mm
Probe Material :
Stainless steel
Handle Material :
Nylon
Description

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing

Product Description:

The 3mm Test Rod is a precision-engineered test probe designed in full compliance with IEC 60884-1:2022, Clause 24.12, specifically for evaluating the mechanical strength and effectiveness of barriers in plugs and socket-outlets.

Manufactured from high-quality steel, the rod features a 3 mm cylindrical body and a hemispherical tip with a 1.5 mm radius, ensuring accurate and repeatable test results. During testing, the rod is applied perpendicularly to the mounting surface at the most unfavorable position for 10 seconds, using a force equal to 1.5 times the maximum plug withdrawal force, as required by the standard.

This test rod is widely used by testing laboratories, certification bodies, and manufacturers to verify product compliance, safety, and reliability before certification or market release.

Key Features:

Fully compliant with IEC 60884-1:2022 Clause 24.12

Precision-machined steel structure for durability and accuracy

Hemispherical end design ensures standardized force application

Suitable for plug and socket-outlet barrier strength verification

Reliable tool for routine inspection and type testing

Technical Parameters:

Parameter Specification
Rod Diameter 3 mm
End Shape Hemispherical
End Radius 1.5 mm
Material Steel
Applicable Standard IEC 60884-1:2022 Clause 24.12

The test probe doesn’t have built-in force, if specific applied force required, the test probe should work together with a force gauge. At the end of our probe handle, there is a M6 thread hole to match the force gauge. Showing as following reference picture:

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing

IEC 60884-1 Clause 24.12 3mm Test Rod for Plug Barrier Strength and Accessibility Testing

Notice:

1. Please do not damage the appliance shape (such as scratching, bending, etc.).

2. Prevented from dust and moisture environment, in order to avoid the oxidation to affect the dimensional accuracy.

3. Be careful of electric shock.
