IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
IEC 60950 Clause 2.3.5 Switch Life Testing Machine 130A Test Generator
Specifications
Brand Name :
Sinuo
Model Number :
SN130A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
L/C, , T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
15 Days
Packaging Details :
Carton Box
Applied Standard :
IEC 60950
Applied Clause :
Clause 2.3.5
Output Voltage :
120V±2V
Output Frequency :
50Hz/60Hz±2words
Internal Impedance :
1200Ω±2%
Output Power :
25W
Description

IEC 60950 130A 120V 50Hz/60Hz Test Generator with 1200Ω Internal Impedance

Product Overview:

The 130A test generator is designed and manufactured according to the requirements of IEC60950 clause 2.3.5.

It can simulate voltage standards (50Hz or 60Hz) in different regions to meet the test requirements. The instrument is designed with a stable signal source and a large and medium power matching circuit to meet the output requirements under large loads.

Input Characteristics:

Input voltage AC 120V±10%
Input frequency 50Hz/60Hz
Working environmental Temperature:-20℃～40℃, Humidity: < 80％ RH
Power fuse 4A
Dimensions Approx. 408mm (L) * 320mm (D) * 180mm (H)

Technical Index:

Output voltage 120V±2V
Output frequency 50Hz/60Hz±2words
Internal impedance 1200Ω±2%
Function With commutation connection requirements
Output power 25W

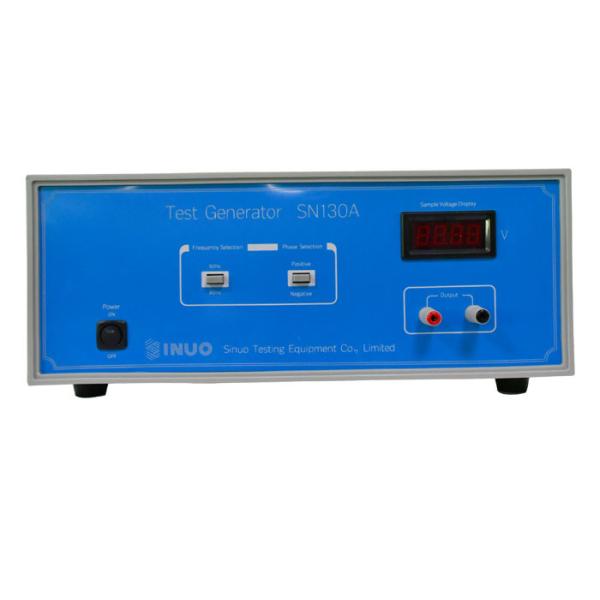

Instructions of Panel :

①: Power switch (POWER)
②: Output frequency selection
③: Commutation selection
④: Output voltage display
⑤: Output voltage terminals
