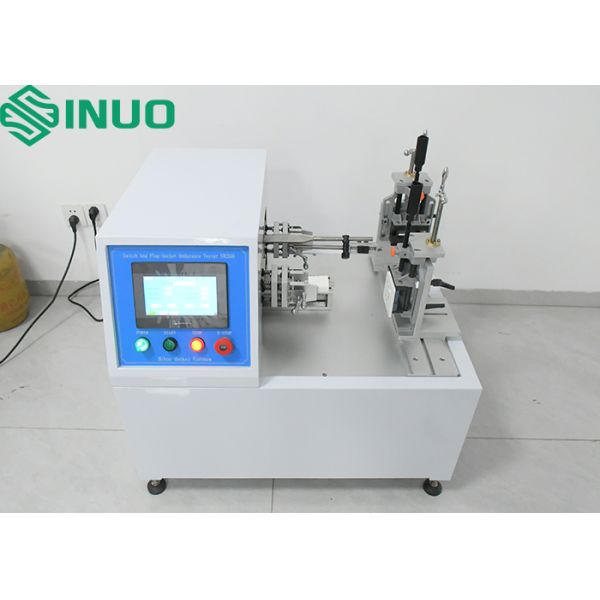

IEC 60669-1:2007 Plugs Socket-outlets Switches Endurance Test Equipment



Product overview:


Standard:

IEC 60884-1:2006 Plugs and socket-outlets for household and similar purposes-Part 1: General requirements- Clauses 20 and 21

IEC 61058-1:2008 Switches for appliances - Part 1: General requirements- Clause 17

IEC 60669-1:2007 Switches for household and similar fixed electrical installations-Part 1: General requirements- Clauses 18 and 19

IEC 60320-1:2007 Appliance couplers for household and similar general purposes-Part 1: General requirements- Clauses 19 and 20

Specimens & Limitations:

Applicable to plugs, socket-outlets, appliance couplers, switches, and similar electrical accessories from various countries

Application:

Used for testing the making and breaking capacity, breaking capacity, and normal operating life of switches for household and similar fixed electrical installations, plugs and socket-outlets, and appliance couplers.

It evaluates whether the products can withstand mechanical wear and electrical fatigue in normal use, checks for contact sticking, permanent closure or permanent disconnection, and examines excessive wear or other harmful consequences.

Testing Principle:

The device uses a servo motor-driven mechanism to perform repeated linear pressing, toggling, or rotating actions on the specimen, while simultaneously conducting load switching tests. The make/break time, test speed, stroke, and rotation angle can be preset via a touch screen.

Structure & Features:

Integrated frame structure

Servo motor drive, precision ball screw, and synchronous belt transmission

7-inch color touch screen for user-friendly operation and comprehensive digital display

PLC intelligent control system

Three-axis adjustable fixture, suitable for push-button, toggle, rocker, and rotary switches, as well as plug and socket endurance testing

Technical parameters:

Model

SN2116

Workstations

2 stations, 2 linear synchronous stations

Electrical Control

PLC intelligent integrated control, operated via 7-inch HMI touch interface

Drive Mode

Servo motor

Specimen Clamping

Mechanical clamping, 3-axis adjustable fixture to position the clamping point

Replaceable Mechanisms

Universal fixture, push rod for push-button switches, toggle switch mechanism, rocker switch pulley mechanism

Linear Stroke

0–150 mm, presettable

Make Time

0–99.9 s, presettable

Test Speed

15 cycles/min, 7.5 cycles/min, or 30 cycles/min, presettable

Test Cycles

0–999,999 cycles, programmable

Load

External connection, 2 wiring terminals

Optional Notes

Rotary switch testing requires selecting the rotary station; linear station can test push-button, toggle, rocker (boat) switches, appliance couplers, and plugs/sockets

Test Items

Switch making and breaking capacity test

Switch normal operation endurance test

Plug and socket breaking capacity test

Plug and socket normal operation endurance test

Appliance coupler breaking capacity test

Appliance coupler normal operation endurance test

Dimensions & Weight

Approx. 800 × 800 × 800 mm (W × D × H)
Weight: 130 kg

Power supply

AC220V ±10% / 50–60 Hz

Operating Environment

Ambient temperature: 0–40 °C
Humidity: 30%–90%
