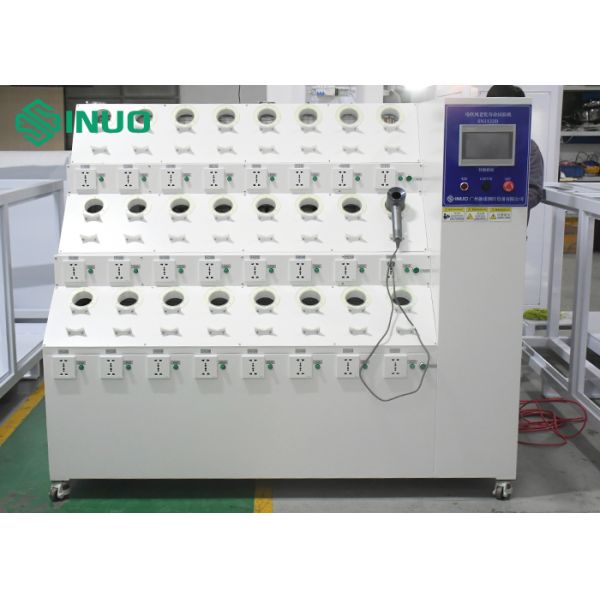

IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
IEC 61855 Compliant Hair Dryer Aging Test Machine with 24 Test Stations and PLC Intelligent Control
Specifications
Brand Name :
Sinuo
Model Number :
SN1122D
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Control System :
PLC intelligent control
Operation Interface :
7-inch color HMI touch screen
Test Stations :
24 stations (customizable)
Station Grouping :
8 stations per group, 3 layers
Timer Range :
0–9999 hours
Operating Temperature :
23 ± 2 ℃
Cooling Method :
Multiple internal exhaust fans
External Exhaust :
Customer-installed ducting required
Description

IEC 61855 Hair Dryer Aging And Life Test Machine For Performance And Durability Testing

Product Overview:

The Hair Dryer Aging and Life Test Machine is a professional test system designed for durability, high-temperature aging, and electrical on/off life testing of hair dryers and hot-air hair styling appliances.

The equipment simulates real daily operating conditions by programmable power cycling and real-time electrical monitoring, enabling long-term reliability evaluation of products under continuous thermal and electrical stress.

It fully complies with GB/T 23106-2024, QB/T 1876-2023, and IEC 61855:2022, making it ideal for manufacturers, R&D laboratories, and quality inspection institutes.

Applicable Products:

Handheld hair dryers

Hair styling appliances with heating airflow

Similar household hair care appliances

Test Purpose & Principle:


Test Purpose

  • The aging test evaluates:
  • High-temperature endurance during continuous operation
  • Electrical durability under repeated power ON/OFF cycles
  • Switch failure conditions such as short circuit and open circuit

Test Principle

  • ON/OFF time cycles are freely programmable to simulate real usage
  • Electrical current is monitored in real time
  • Any failure (open circuit or short circuit) is automatically detected and recorded
  • Products are started in time-sequenced operation to avoid inrush current impact on the factory power grid

Main Features:

PLC intelligent control system

Independent control for each test station

Real-time display of current, voltage, power, time, and cycle count

Automatic alarm and recording upon product failure

Long-term unattended testing capability

Efficient internal heat dissipation structure

Technical Parameters:

Item Specification
Model SN1122D
Control System PLC intelligent control
Operation Interface 7-inch color HMI touch screen
Test Stations 24 stations (customizable)
Station Grouping 8 stations per group, 3 layers
Power Supply AC 220V, 50Hz
External Power for DUT Provided by customer (75 kW VFD power source)
Timer Range 0–9999 hours
Operating Temperature 23 ± 2 ℃
Humidity Range 30%–90% RH
Machine Dimensions (W×D×H) 1800 × 550 × 1500 mm
Machine Weight Approx. 150 kg

Safety & Protection:

Function Description
Alarm System Over-current alarm, test completion alarm
Protection Short circuit, over-current, over-voltage protection
Leakage Protection Residual current circuit breaker (RCCB)
Fault Handling Automatic stop and alarm upon DUT failure

Exhaust & Heat Dissipation:

Item Description
Internal Structure Thermal isolation air channels
Cooling Method Multiple internal exhaust fans
External Exhaust Customer-installed ducting required
