Specifications
Brand Name :
Sinuo
Model Number :
SN335-2D
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Applicable Sample :
Hair dryer
Control & Operation :
Manual control
Data Recording :
Automatic recording
Data Export :
Downloadable wind speed data
Impeller Diameter :
Φ100 mm (aluminum)
Measurement Range :
0.3 – 35 m/s
Resolution :
0.01 m/s
Accuracy :
±(0.02 m/s + 1% of reading)
Description
Hair Dryer Air Volume Test System with High-Precision Anemometer for Airflow Measurement
The Hair Dryer Air Volume Test System is a customized airflow measurement solution designed for hair dryers and similar air-blowing appliances.
Product Overview

The system measures wind speed by connecting the test sample to a sealed airflow pipe equipped with a high-precision anemometer, allowing wind speed data to be read directly from the anemometer host.
It features simple operation, high measurement accuracy, excellent repeatability, and high testing efficiency, making it ideal for product development, performance verification, and quality control.

The air volume measurement is performed using a Germany-imported Testo high-precision anemometer, ensuring reliable and accurate test results.
The pipe is sealed at both ends, effectively eliminating operator interference with the airflow field and improving data consistency.

Equipment Principle & Structure

Working Principle

The airflow generated by the test sample passes through a sealed pipe, and the wind speed is directly measured by the anemometer installed in the pipe, as illustrated in Figure 1.
The anemometer captures real-time airflow velocity and records the data for further analysis.


Equipment Structure

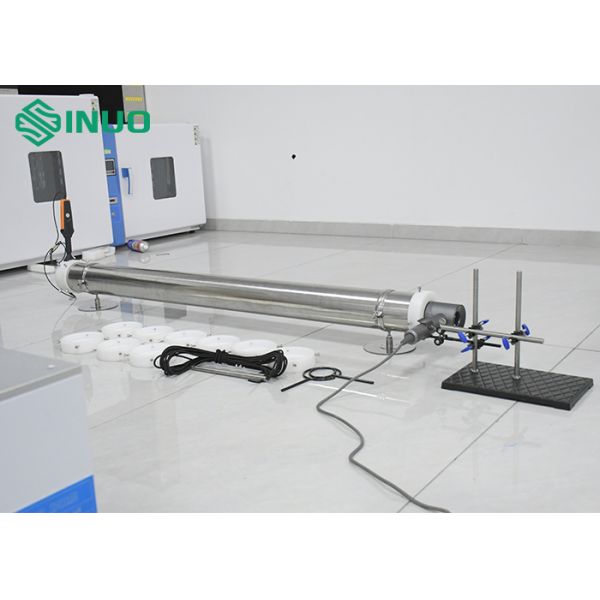

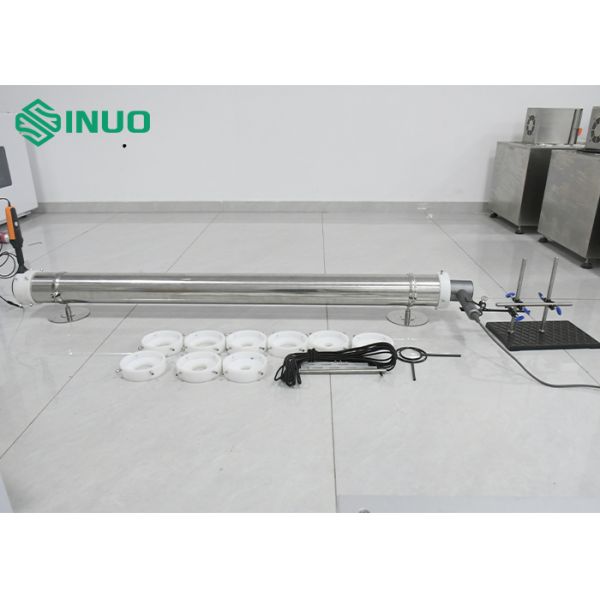

As shown in Figure 1, the system mainly consists of:

Hair Dryer Air Volume Test System with High-Precision Anemometer for Airflow Measurement

  1. Sample mounting bracket
  2. Sealing adapter
  3. Airflow pipe
  4. Wind speed acquisition unit (anemometer)

Structural Details:

  • The sample mounting bracket includes a Z-axis adjustable lifting mechanism and a dedicated sample fixture.
  • The sealing adapter connects the sample outlet to the pipe and supports air outlet diameters from 35 mm to 70 mm, with adapters available in 5 mm increments.
  • The pipe has an inner diameter of approximately Φ110 mm (final size determined by the anemometer dimensions) and a length of 1500 mm.
  • A support frame ensures the pipe remains horizontally aligned during testing.
  • The anemometer is a Testo brand impeller-type wind speed sensor, imported from Germany, with a Φ100 mm aluminum impeller.


Test Procedure:


Connect the anemometer to the pipe in advance and ensure all interfaces are properly sealed.

Install the test sample:

Select the appropriate sealing adapter

Fix the sample on the mounting bracket

Connect the sample air outlet to the pipe via the sealing adapter

Seal the joint using dedicated sealing tape

Power on the anemometer and then start the power supply of the test sample.

Measure and monitor the wind speed in real time.

Download and export wind speed data for the selected test period.

Technical Specifications
Item Specification
Model SN335-2D
Applicable Sample Hair dryer and similar air-blowing products
Input Power AC 220V, 50Hz
Control & Operation Manual control
Data Recording Automatic recording by anemometer
Data Export Downloadable wind speed data



Anemometer System:


Item Specification
Anemometer 1 set
Brand Testo (Germany)
Main Unit Testo 440
Probe Testo 9430
Impeller Diameter Φ100 mm (aluminum)
Measurement Range 0.3 – 35 m/s
Resolution 0.01 m/s
Accuracy ±(0.02 m/s + 1% of reading)


Mechanical Structure:


Item Specification
Sample Mounting Bracket Z-axis lifting mechanism with sample fixture
Sealing Adapter Range 35 mm – 70 mm (5 mm increments)
Pipe Inner Diameter Approx. Φ110 mm
Pipe Length 1500 mm
Base Plate Integrated horizontal base plate for pipe and sample fixture
