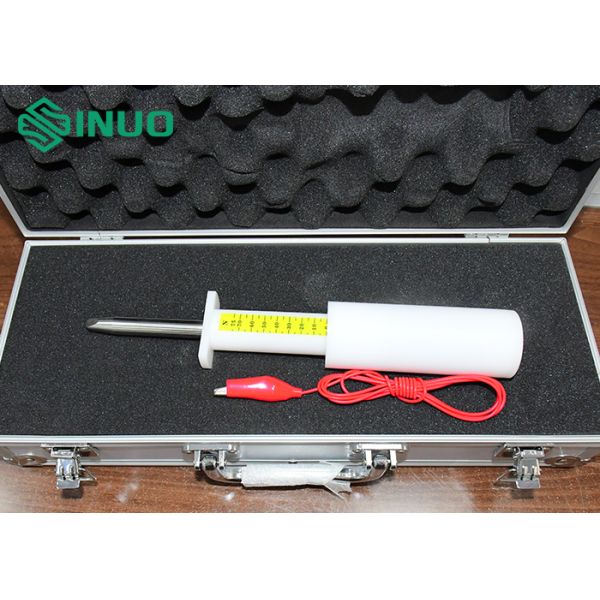

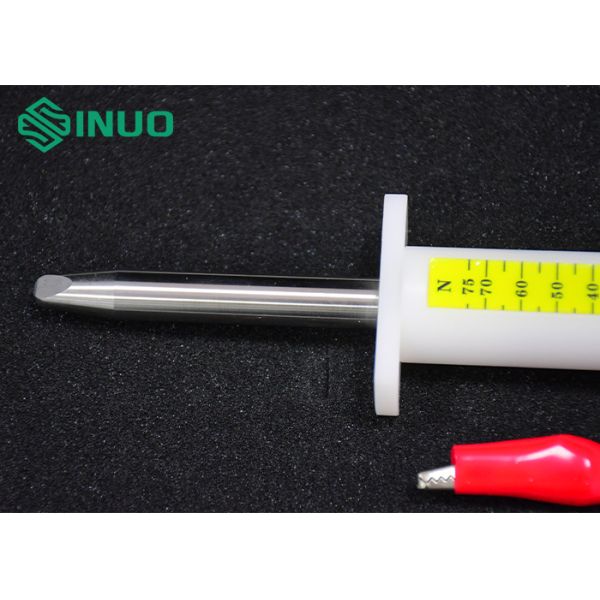

IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-7T
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 pcs per month
Delivery Time :
3~5 Days
Packaging Details :
Aluminium Box
Applicable Standard :
IEC 61032
Force Range :
0–75 N
Tip Length :
19.95–20.00 mm
Guard Diameter :
Ø50 mm
Overall Probe Length :
80 ± 0.2 mm
Cylindrical Tip Radius :
R2 ± 0.05 mm
Spherical Tip Radius :
R4 ± 0.05 mm
Guard Thickness :
5 ± 0.5 mm
Description

IEC 61032 Test Probe 11 With Equipped 75 N Force Dynamometer Safety Compliance Tool

Product Overview:

The IEC 61032 Test Probe 11 equipped with a 75 N dynamometer is a specialized safety evaluation tool engineered for precise verification of protective barriers in electrical and electronic devices. Designed in strict accordance with the IEC 61032 Figure 7 standard, this test probe helps ensure that enclosures and openings in equipment prevent accidental contact with hazardous live parts during normal operation and handling.

This test probe is built to simulate a human finger and applies controlled forces to examine openings and barriers, helping to meet safety requirements found in IEC 61032 as well as related global standards like IEC 60884-1, IEC 60669-1, and IEC 60335-1. It is ideal for testing sockets, appliance housings, or other electrical products to confirm effective protection against unintended finger access.

Technical Parameters:

Parameters /Model SN2210-7T
Name Test Probe 11 with Dynamometer
Probe Tip Length (mm) 19.95-20.00
Probe Length with Tip (mm) 80±0.2
Probe Tip Cylindrical Radius (mm) R2±0.05
Probe Tip Spherical Radius (mm) R4±0.05
Probe Tip Cylindrical Angle (°) 37o 0 -10’
Probe Tip Spherical Angle (°) 14 o 0 -10’
Probe Diameter (mm) Ф12 0 -0.05
Guard Diameter (mm) Ф50
Guard Thickness (mm) 5±0.5
Built-in dynamometer With force of 0-75N, resolution of 5N

Key Functions & Features:

Integrated 75 N Force Measurement: Includes a built-in dynamometer with 5 N resolution that measures applied force during testing.

Anti-Shock Capable: Designed with a banana plug interface, allowing use in anti-electric shock verification where applicable.

Robust Construction: Precision-manufactured probe geometry ensures reliable and repeatable testing results.
