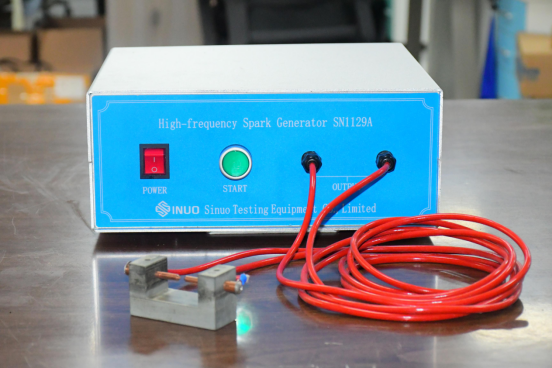

IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
Specifications
Brand Name :
Sinuo
Model Number :
SN1129A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
20 Days
Packaging Details :
Carton
Spark Length :
About 3mm
Spark Energy :
At least 0.5J
Spark Generation Mode :
Bipolar output
Peak Voltage :
±7kv
Current :
40mA; 20kHz
Ignition Distance :
2-5mm adjustable
Description

IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length



Product information:


Standard: Conforms to IEC 60335-2-6 clause 22.111, etc.

Application: It is used to check whether flammable gases are emitted from the vents during the cleaning process of pyrolytic self-cleaning ovens and whether there is an ignition hazard.

Technical parameters:


Spark length

About 3mm

The energy of each spark

At least 0.5J

Spark generation mode

Bipolar output

Peak voltage

±7kv

Current

40mA; 20kHz;

Ignition distance

2-5mm adjustable

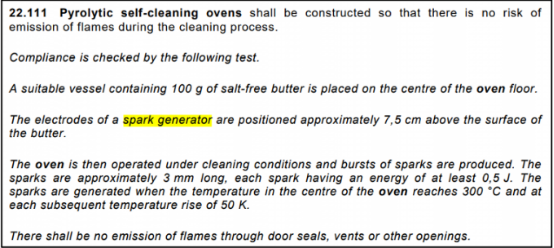

Standard pictures:

IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length

IEC 60335-2-6 High-Frequency Spark Generator 3mm Spark Length
