TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN1612
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 per month
Delivery Time :
30 Days
Packaging Details :
Plywood case
Test Station :
Single station
Control Method :
PLC control
Platform size :
400mm*400mm
Temperature channel :
4 channels
Heating temperature :
Rt~ 100 °C
Test time :
0-99H99M99S
Description
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
This equipment complies with the test standard requirements of Clause 10.7 according to TZS 683:2022 and Clause 14.8 according to ES 573:2021.
Testing Procedure
  1. The utensil shall be filled with water at 23°C + 2°C up to 90% of its nominated capacity, and the lid (if provided) placed in position.
  2. The water shall be heated using an electric heating coil immersed in the water, so as to reach boiling point within 15 minutes to 20 minutes.
  3. The temperature of the handle shall be measured not less than 15 minutes after the water starts to boil, by means of thermocouples fixed to points A and B indicated in figure 1.
  4. The temperature shall be recorded and compared with those specified.
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
Figure 1: Thermocouple placement diagram
Technical Specifications
Parameter Specification
Control PLC control, 7" touch screen operation
Station Single station
Platform size 400mm × 400mm
Temperature recording channel 4 channels (A point, B point, Ambient temperature, Reserve)
Heating temperature Rt ~ 100°C
Temperature measuring method By means of thermocouples fixed to points A and B indicated in figure 1
Test time 0-99H99M99S, can be preset on touch screen
Electric heating coil Electric heating coil material: copper. The electric heating coil can be immersed in water. The electric heating coil on/off will be controlled to be capable of heating water till boiling through duration time from 15 min to 20min

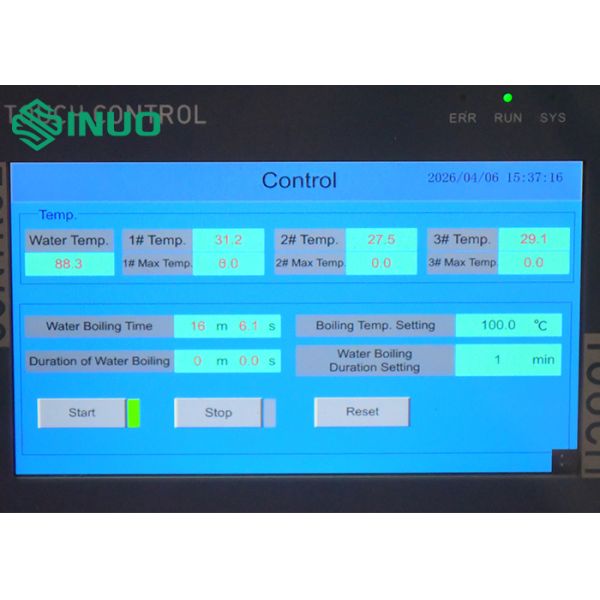

Temperature recording Touch screen display, Temperature and time can be displayed
Power supply AC220V, 50Hz, 3kW
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus

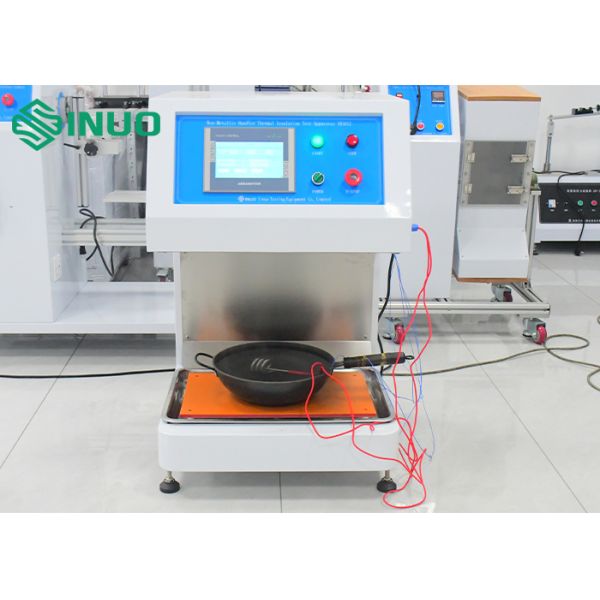

Front view of test apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus

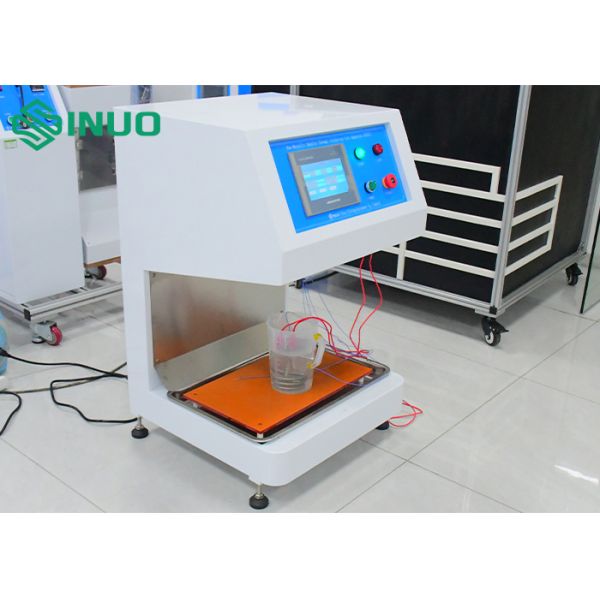

Side view of test apparatus
TZS 683:2022 Clause 10.7 Non-Metallic Handles Thermal Insulation Test Apparatus
