IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
Specifications
Brand Name :
Sinuo
Model Number :
SN2901
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Applicable Standards :
IEC61386-1:2017
Test stations :
Single station
Control mode :
Manual
Specimen length :
100 ± 5 mm
Load weights :
0.5 N, 1 N, 2 N and 4 N
Steel rod :
Ø6 ± 0.1 mm
Description
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
This manual load heat resistance tester is designed to evaluate whether non-metallic and composite conduits meet standard requirements for heat resistance under specified load conditions.
Applicable Standards & Scope
Compliant with IEC61386-1:2017 clause 12.2. Suitable for testing metal, non-metallic, and composite conduits or fittings for electrical or communication systems up to AC 1000 V and/or DC 1500 V.
Test Principle

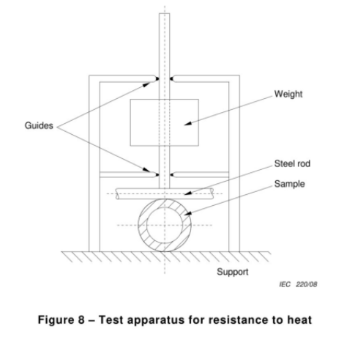

Stacked weights apply different loads via a steel rod onto the specimen. The test must be performed in conjunction with a high-temperature chamber to evaluate heat resistance properties.
IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
Technical Specifications
Parameter Specification
Test Stations Single station
Control Mode Manual
Specimen Length 100 ± 5 mm
Load Capacity

0.5 N (self-weight of guide rod), plus slotted hook weights of 0.5 N, 1 N, 2 N and 4 N (one each)

IEC61386-1 Manual Load Heat Resistance Tester with 0.5-4N Weights
Steel Rod Ø6 ± 0.1 mm
Overall Dimensions approx. 200 × 200 × 500 mm (W × H × D)
Weight 30 kg

Optional Configuration
Non-metallic and composite conduits require testing in a high-temperature chamber under conditions specified in Standard Table 2, with maximum temperature tolerance of ±2°C. The high-temperature chamber is available as an optional accessory.
Note: This equipment is designed for laboratory testing of conduit heat resistance in accordance with international standards.
