Specifications
Brand Name :
Sinuo
Model Number :
SN1915
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Test stations :
Single station
Drive mode :
Servo motor drive
Bending angle :
0–360° adjustable
Bending speed :
0–60 cycles/min
Bending cycles :
0–999,999
Specimen clamping :
Mechanical clamping
Description

IEC61386-1 Flexible Conduit Bending Tester 0-360° Adjustable



Product information:


Applicable Standards:
IEC61386-1:2017clause 10.5

IEC61386-23:2021clause 10.5

Specimens & Scope: Suitable for metal, non-metallic and composite conduits or fittings for electrical or communication systems up to AC 1000 V and/or DC 1500 V.

Test Purpose: To evaluate whether conduit fittings with terminations meet the mechanical performance requirements for bending resistance.

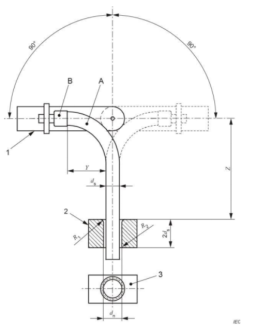

Test Principle: A servo motor drives a rotary table to bend the flexible conduit left and right at a specified speed and angle. The machine stops automatically when the preset number of cycles is reached.

IEC61386-1&23 Flexible Conduit Bending Tester 0-360° Adjustable

Equipment Structure:

Servo motor drive with large aluminum mounting plate for large specimens, ensures the swing axis aligns as closely as possible with the cable entry point of the fitting, minimizing lateral displacement of the cable and load.

Technical parameters:

No.

Item

parameters

1

Power supply

AC 220 V ±10%, 50–60 Hz, 0.75 kW

2

Test stations

Single station

3

Electrical control

PLC integrated control with 7-inch HMI touch screen

4

Drive mode

Servo motor drive

5

Specimen clamping

Mechanical clamping, adjustable clamping position

6

Bending angle

0–360° adjustable (preset options: ±30°, ±45°, ±60°, ±90°)

7

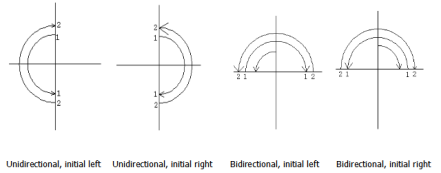

Bending direction

IEC61386-1&23 Flexible Conduit Bending Tester 0-360° Adjustable

8

Bending speed

0–60 cycles/min (presettable; default 40 cycles/min)

9

Bending cycles

0–999,999 presettable (default 5,000 cycles)

10

Support blocks

Height Z: adjustable 0–300 mm

Center spacing: adjustable 0–100 mm

Bottom chamfer R2, top chamfer R1

11

Overall dimensions

approx. 800 × 800 × 1300 mm (W × H × D)

12

Weight

130 kg
