Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Refrigerator Spillage Test Apparatus for Electrical Safety
Specifications
Brand Name :
Sinuo
Model Number :
SN1203
Certification :
Calibration certificate(Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 pcs per month
Delivery Time :
10 Days
Packaging Details :
Carton Box
Applied Standards :
IEC 60335-2-15:15.2, 15.102, 15.103, etc
Test Samples :
Refrigerating appliances
Container Dimensions :
155*70*60mm
Displacement Block Dimensions :
112*50*25mm
Displacement Block Weight :
200g±10g
Spillage port size :
30mm
Description

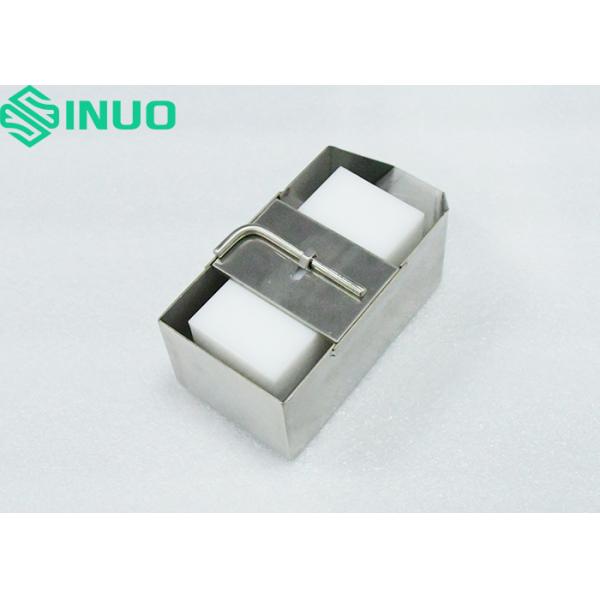

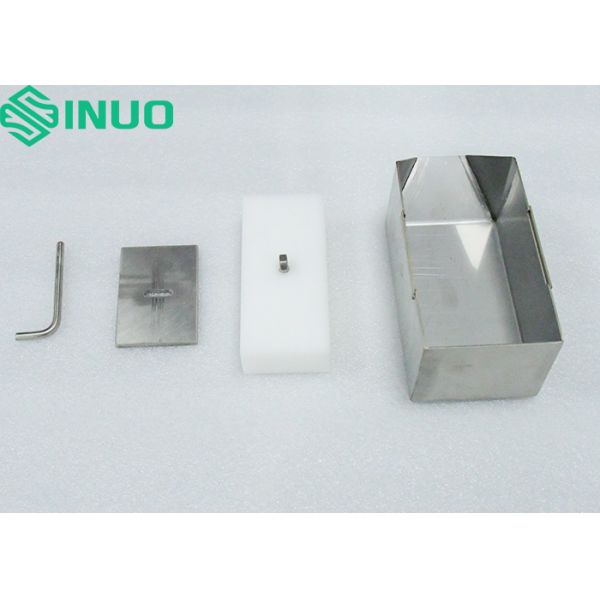

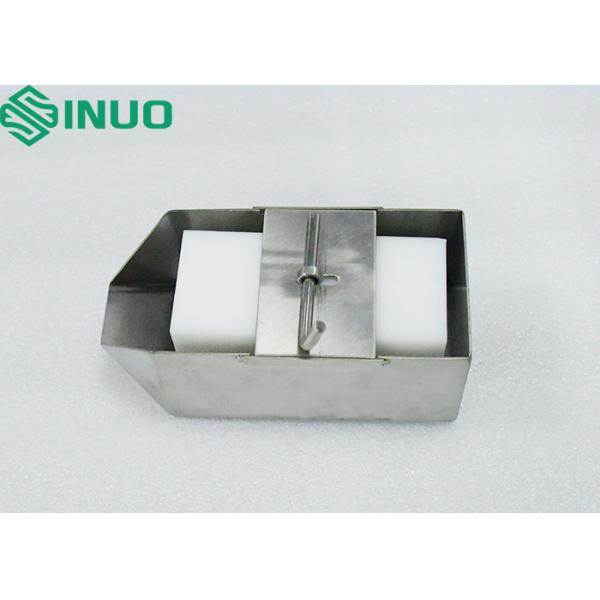

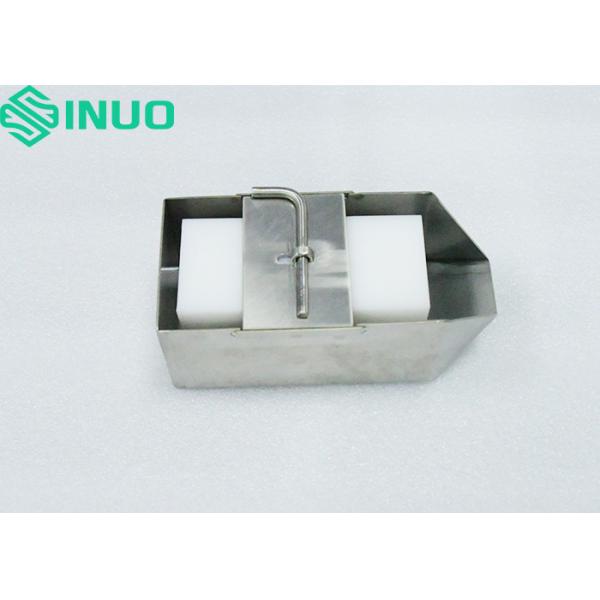

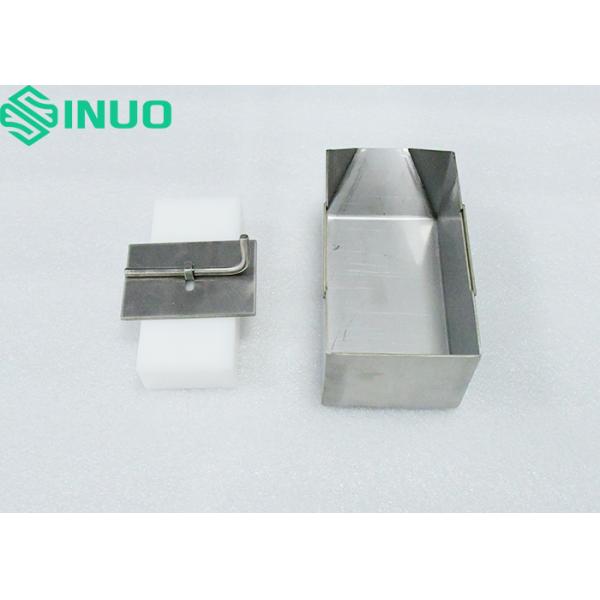

Refrigerator Spillage Test Apparatus for Electrical Safety
Product Description

The spillage test apparatus is designed to validate the electrical safety of refrigerating appliances in compliance with international standards including IEC 60335-2-15, IEC 60335-2-24, IEC 60335-2-14, IEC 60335-2-25, and IEC 60335-2-89.

Refrigerator Spillage Test Apparatus for Electrical Safety

Samples and Restrictions

Compatible with refrigerating appliances including:

  • Refrigerators
  • Ice-cream appliances
  • Ice-makers
Application

This apparatus tests refrigerating appliances to ensure spillage of liquids from containers onto cabinet walls or tops does not compromise electrical insulation integrity.

Technical Parameters
Component Specification
Stainless steel container dimensions 155×70×60mm
Displacement block dimensions 112×50×25mm
Displacement block weight 200g±10g
Spillage port size 30mm
Height from spillage port to bottom 30mm
Release method Manual

Refrigerator Spillage Test Apparatus for Electrical Safety
