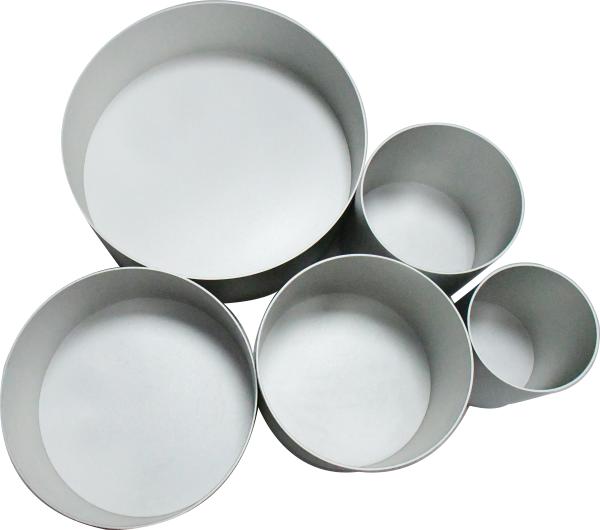

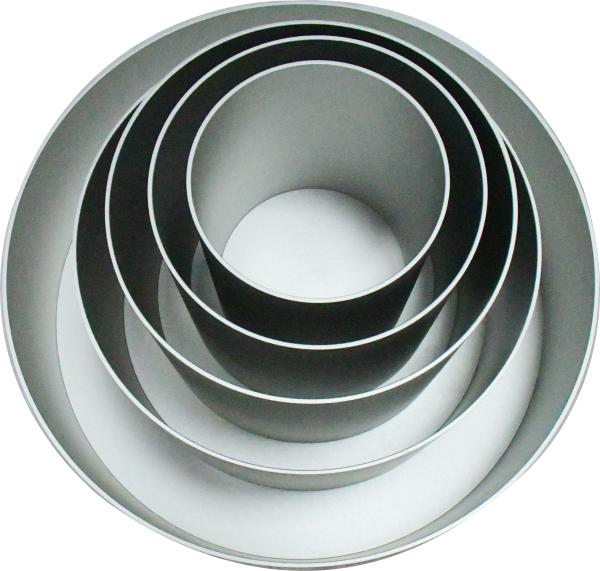

IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes
Specifications
Brand Name :
Sinuo
Model Number :
SN1115
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 days
Packaging Details :
Carton
Vessels Size :
Φ110mm , Φ145mm, Φ180mm, Φ220mm, Φ300mm
Wall Thickness :
2 mm
Maximum Concavity :
≦0.006d, not to be convex
Vessels Shape :
Flat base, with cover, cylinder
Vessels Material :
6061 Aluminum
Vessels Function :
Water Simmering Test
Description

IEC 60335 Hotplate Test Vessel Set Aluminum Pots With Lids 5 Sizes



Product information:


It conforms to the standard requirements of Conforms to the standard requirements of IEC 60335-2-6:2018 clause 3.1.9.101 figure 101, IEC60335-2-9 clause 3.1.9.108 & 15.2 figure 103. 110,145,180,220,300mm,5pcs set.

Hotplates, other than induction hotplates, are operated with vessels containing water. The vessels are made of unpolished commercial quality aluminum, have a flat bottom and are covered with a lid. A suitable vessel is specified in Figure 103. controls are adjusted to their highest setting until the water boils and then adjusted so that the water simmers. Water is added to maintain the level during boiling.

Note 1: The lid is positioned so that steam does not affect the test.

For all hotplates, the diameter of the bottom of the vessel is approximately equal to the diameter of the cooking zone and the quantity of liquid is specified in Table 101. The vessel is positioned centrally on the cooking zone.

Technical parameters:

Diameter of cooking zone mm

Approximate dimension

a mm

b mm

c mm

≤110

110

140

8

＞110≤145

145

140

8

＞145≤180

180

140

9

＞180≤220

220

120

10

＞220≤300

300

100

10

NOTE: The maximum concavity of the vessel is to be not more than 0.05 mm. The base of the vessel is not to be convex.

Actual inspection size in the following table:


Outer diameter a

b

c

Material

With lid

110

2

8.05

AL6061

With lid

145

1.9

8.04

AL6061

With lid

180

1.925

8.98

AL6061

With lid

220

1.995

9.99

AL6061

With lid

300

1.999

10.02

AL6061

With lid
