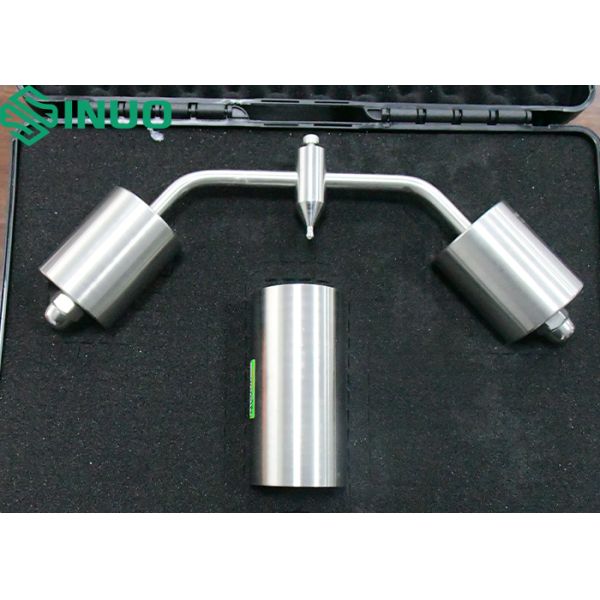

Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Ball Pressure Tester For Insulating Materials Heat Resistance
Specifications
Brand Name :
Sinuo
Model Number :
SN2137
Certification :
Calibration Certificate(cost additional )
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Sets / Month
Delivery Time :
20 days
Packaging Details :
Carton
Ball Diameter :
Ø5mm ±0.05mm
Ball Pressure :
20N±0.2N
Test Stand :
100mm high x 50mm diameter, hole diameter:1.2mm
Construction Material :
Stainless steel
Ball Material :
Hardened steel
Test Standards :
IEC 62368-1, IEC 60884-1, IEC 60669-1,etc.
Description
Ball Pressure Tester For Insulating Materials Heat Resistance
Product Description

The Ball Pressure Tester is designed for evaluating the heat resistance of electrical enclosures and external parts made from insulating materials. This precision instrument complies with multiple international standards including IEC 62368-1, IEC 60884-1, and IEC 60669-1.

Key Features
  • Tests heat resistance of insulating materials in electrotechnical equipment
  • Applies 20N force through a 5mm steel ball at elevated temperatures
  • Measures indentation after controlled heating and cooling cycle
  • Constructed from durable stainless steel with hardened steel ball
  • Comprehensive compliance with international safety standards
Testing Method

The conditioned specimen is placed on a preheated support and subjected to a 20N force via a 5mm steel ball. The complete assembly remains in a temperature-controlled oven for one hour. After removal and cooling, any indentation is precisely measured to determine material performance.

Technical Specifications
Parameter Specification
Ball Diameter Ø5mm ±0.05mm
Ball Pressure 20N±0.2N (includes loading device and ball)
Test Stand Dimensions 100mm high x 50mm diameter, hole diameter: 1.2mm
Construction Material Stainless steel (ball: hardened steel)
Standards Compliance

IEC60695-10-2(2003), IEC 60884-1 figure 37, IEC60320-1, IEC60335-1, IEC60598-1, IEC60950-1.
