EN 60350-2 Standardized Cookware Lid With Temperature Sensor fixture test pot for induction cookers
EN 60350-2 Standardized Cookware Lid With Temperature Sensor fixture test pot for induction cookers
EN 60350-2 Standardized Cookware Lid With Temperature Sensor fixture test pot for induction cookers
EN 60350-2 Standardized Cookware Lid With Temperature Sensor fixture test pot for induction cookers
Specifications
Brand Name :
Sinuo
Model Number :
SN1115C
Certification :
Calibration certificate(cost additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
20 days
Packaging Details :
Carton
Bottom material :
1.4016 stainless steel
Walls material :
1.4301 stainless steel
Bottom thickness size :
6 mm ± 0.05 mm
Walls thickness :
1 mm ± 0.05 mm
Lid material :
Made of aluminum
Lid thickness :
2 mm ± 0.05 mm
Temperature sensor :
At the center
Fixture material :
Made of plastic
Description

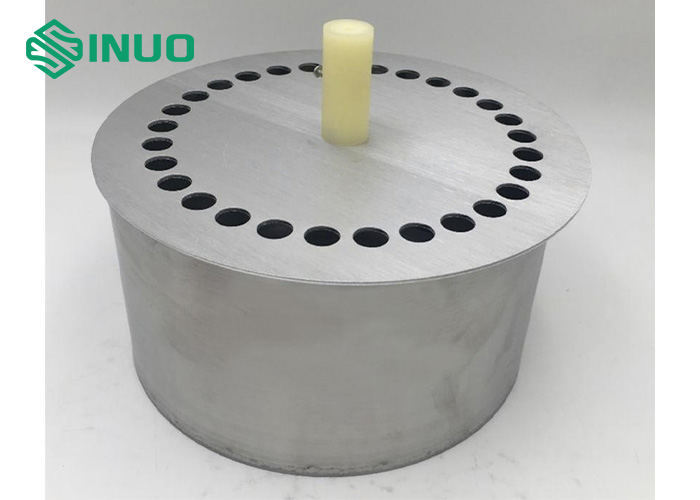

EN 60350-2 Standardized Cookware Lid With Temperature Sensor Fixture Test Pot for Induction Cookers

Application:

The Standardised Cookware (Stainless Steel Pans) according to EN 60350-2:2018 requirements, mainly used to assess the energy efficiency of electromagnetic cooker test cookware.


Technical Parameters:

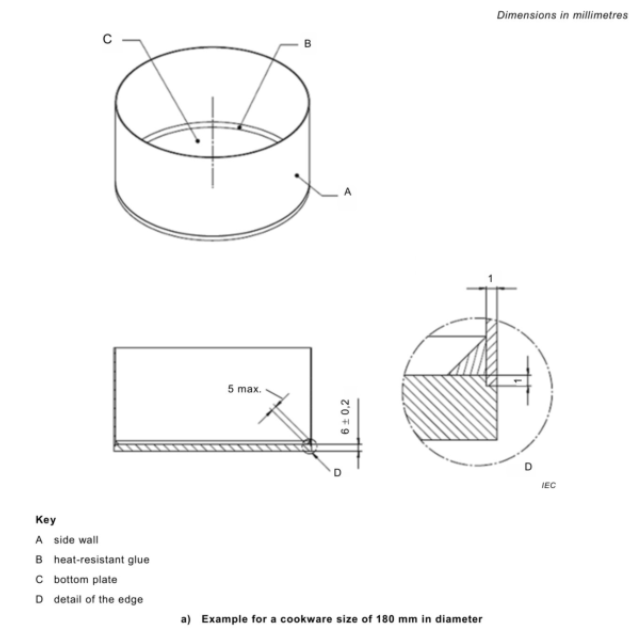

a) The Standardised Cookware bottom material is made of 1.4016 stainless steel, bottom thickness size is 6 mm ± 0.05 mm, bottom cannot be protrude outwards.

b) The Standardised Cookware walls material is made of 1.4301 stainless steel, walls thickness is 1 mm ± 0.05 mm, It does not have a handle and a protruding cylinder.

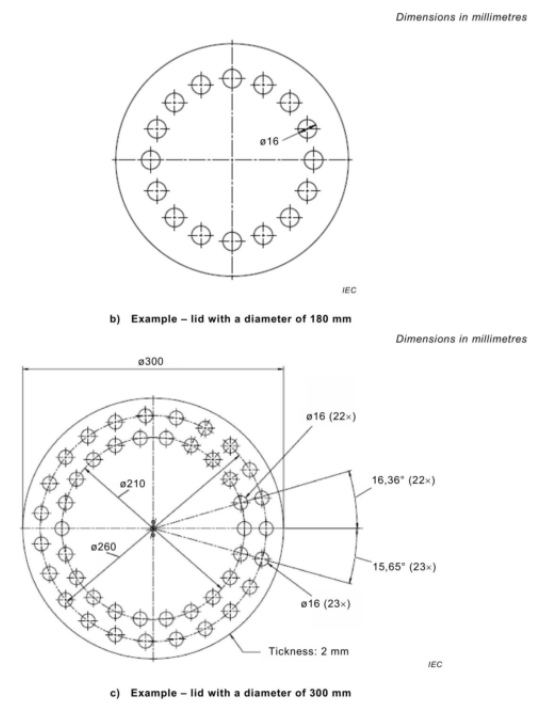

c) The Standardised Cookware lid material is made of aluminum, lid thickness is 2 mm ± 0.05 mm, diameter of each hole in the lid is 16 mm ± 0.1 mm, and holes are evenly distributed on the hole ring.

d) A fixture with a temperature sensor at the center of the lid, its material is plastic.

Diameter of the cookware bottom (outside)
mm
Diameter of the lid
mm
Lid hole circle diameter
mm
 Number of holes on the circle
Total cookware height (outside)
mm
Flatness of cookware bottom
mm
Water load
g
Cooking zone size category
mm
 Standardised cookware categories
120 ± 0,5 130 ± 1 80 ± 1 7 125 ± 0,5
≥ 0
< 0,075
 650
≥ 100
< 130
 A
150 ± 0,5 165 ± 1 110 ± 1 11 125 ± 0,5
≥ 0
< 0,075
 1030
≥ 130
< 160
180 ± 0,5 200 ± 1 140 ± 1 16 125 ± 0,5
≥ 0
< 0,075
 1500
≥ 160
< 190
 B
210 ± 0,5 230 ± 1 170 ± 1 22 125 ± 0,5
≥ 0
< 0,1
 2050
≥ 190
< 220
 C
240 ± 0,5 265 ± 1 200 ± 1 29 125 ± 0,5
≥ 0
< 0,1
 2700
≥ 220
< 250
270 ± 0,5 300 ± 1 230/210 a ± 1 18/18 a 125 ± 0,5
≥ 0
< 0,15
 3420
≥ 250
< 280
 D
300 ± 0,5 330 ± 1 260/210 a ± 1 23/22 a 125 ± 0,5
≥ 0
< 0,15
 4240
≥ 280
< 310
330 ± 0,5 365 ± 1 290/270 a ± 1 27/27 a 125 ± 0,5
≥ 0
< 0,15
 5140
≥ 310
≤ 330
a Number of holes are arranged on two hole circles.

Note: 1. The actual thickness of the pot lid is 2mm ± 0.1mm (this dimension is the actual thickness of the national standard raw material).
2. The flatness of the bottom of the pot may not be within the standard requirements (we will first make the bottom according to the standard requirements, but the bottom and the wall will be deformed during welding, so we can only control it within >0<0.5)
