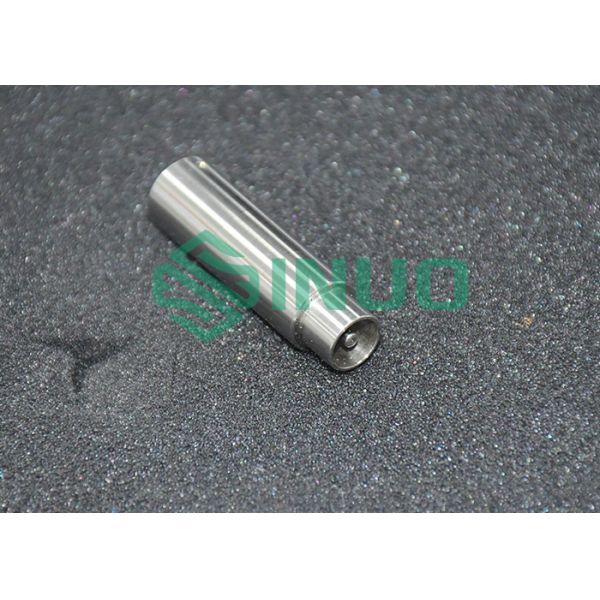

IEC 60065 Figure 9 Test Plug For Mechanical Tests On Antenna Coaxial Sockets Stainless Steel

Product information:

This tests antenna coax sockets conforms to IEC60065:2014 clause 12.5 Figure 9.

It is used to test the antenna coaxial socket which is installed on the device and equipped with parts or components which isolate the hazardous live parts and accessible parts. Its structure should be able to withstand the expected mechanical stress that might encounter during the use process.

It is made entirely of stainless steel. All parts are machined with precision.

Technical Parameters:

The test plug is made entirely of hardened steel (stainless steel). All parts are machined with precision. The dimensions are according to IEC60065:2014 Figure 9, shown as following:

a 9.576 0 -0.1
b 8.05 Minimum
c 2.438 0 -0.1
d 9.1 Minimum
e 7.112 Minimum
f 0.8±0.4
g 40±0.4
h 12±0.4
j 43±0.4
k R0.3
Hole diameter Ф1.5

IEC 60065 Figure 9 Test Plug For Mechanical Tests On Antenna Coaxial Sockets Stainless Steel

Operation steps:

Please refer to the relevant standards.

Take IEC60065:2014 clause 12.5 as an example:

Endurance test

The test plug is inserted and withdrawn from the socket 100 times. Care is to be taken not to damage the socket intentionally during insertion and withdrawal of the test plug.
