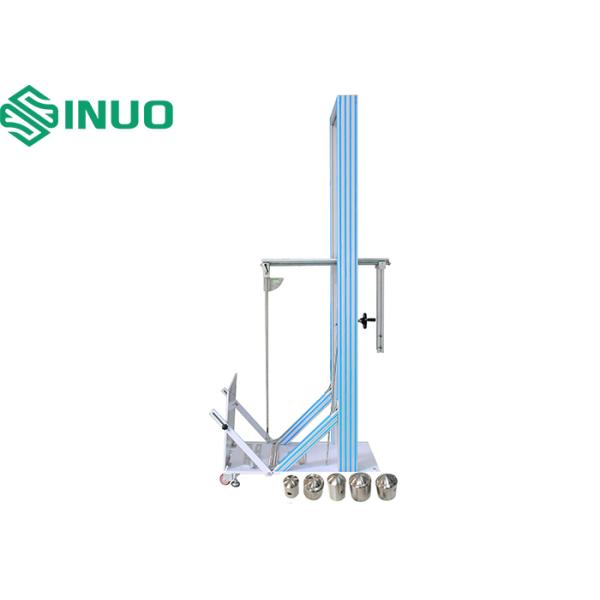

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
Specifications
Brand Name :
Sinuo
Model Number :
SN2122
Certification :
Calibration Certificate(Cost Additional )
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Striking Elements :
2 J, 5 J, 10 J, 20 J, 50 J（optional）
Elements Material :
High-quality Steel
Release Method :
Manual Release
Fall Height :
Adjustable 0–500 mm
Description

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

Product information:

This impact test apparatus is designed to evaluate the impact resistance and safety performance of household and similar electrical products and their accessories, including plugs, sockets, wall-mounted boxes, screw glands, covers, switches, and luminaires. It ensures compliance with international standards including IEC60068-2-75:2014, IEC60598-1:2017 ,

IEC62262:2002,etc.

Technical Parameters:

Striking Elements (Energy/J)

Optional: 2J (IK07), 5J (IK08), 10J(IK09),20J(IK10), 50J(IK11)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

Equivalent Mass

kg

0.5 kg, 1.7 kg, 5 kg, 10 kg (supports various hammer heads)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
Striking Elements Material Steel
Pendulum Tube Length 1000㎜,outer diameter 10mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Stroke: 200-1200mm, up and down adjustable by rotating the handwheel manually
Height of Fall IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
Striking Element Fix and Release Mechanical latch fixation and manual release
Way of moving Equipped with casters for easy movement and positioning
IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety
