Specifications
Brand Name :
Sinuo
Model Number :
SN2216
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
15 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Standard Exporting Plywood Case
Test Station :
3 synchronous stations
Test Times :
0～999999 times
Conduction Time :
0～99.9s
Close Time :
0～99.9s
Test Stroke :
Linear: 0～100mm
Test Speed :
Linear: 0～100mm/s
Description


3 Synchronous Stations Plugs Socket-outlets Switches Endurance Test Equipment



Product overview:

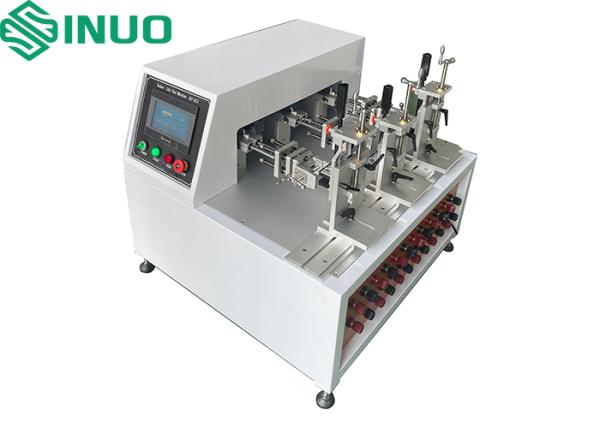

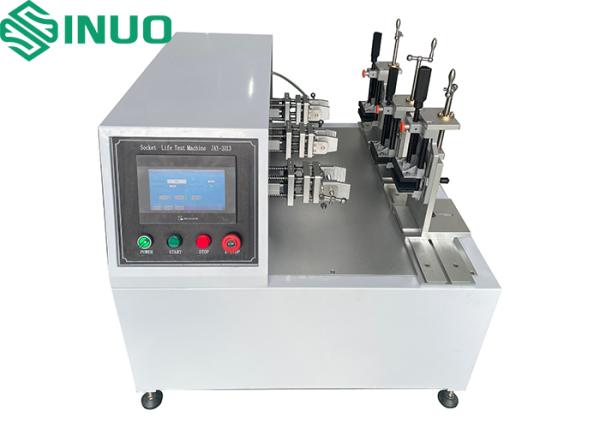

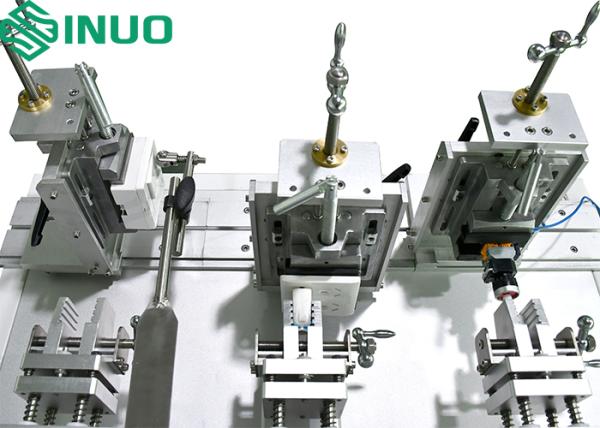

The test equipment has 3 synchronously work stations, which can test 3 linear switches, or 3 plugs or 3 sockets at the same time. The equipment will automatically stop and alarm if one of the stations in abnormal running.

This device complies is required by IEC 60335-1 Annex H, IEC60065:2014 clause14.7 and clause 15.1, IEC 60884-1 2013 clause 20, 21, IEC 61058-1, IEC60669-1 etc.

Working together with load cabinet (the load cabinet is not included in this equipment, it is optional), can achieve making and breaking ability test and the normal operation endurance test of the plugs, sockets and linear switches for household and similar fixed-electrical installations. The testing purpose is to see whether the switches or the plugs and sockets can endurance the mechanical damage or electric fatigue failure during the normal operation. Whether the contact adhesion occurs or there is a phenomenon of being the on (off) station for a long time, which is the criterion of judging the sample is over damage or not.

The device is made of aluminum alloy rack, stainless steel seal plate, driven by a servo motor and ball screw, 7-inch color touch-screen display and set the test parameters, PLC control. Preset number of trials, testing rate, and stroke.

Technical parameters:


No.

Item

Parameters

Remark

1

Power

AC 220V±10V, 50Hz

2

Station

3 synchronous stations (3 linear stations for testing plugs, sockets, linear switches)

3

Operation interface

7-inch color LCD touch screen

4

Drive mode

Servo motor + ball screw

5

Control system

PLC control system

Mitsubishi

6

Test times

0～999999 times, can be preset

7

Conduction time

0～99.9s, can be preset

8

Close time

0～99.9s,can be preset

9

Test stroke

Linear: 0～100mm, can be preset

10

Test speed

Linear: 0～100mm/s,can be preset

11

Atmospheric pressure

80～106kpa

12

Ambient temperature

5～40°C

13

Relative humidity

(20～90)%RH

14

Use environment

Requires no violent shaking, no vibration, no electromagnetic interference, no dust, no explosive, no corrosive gases, needs good heat dissipation place

15

Dimensions and weight

L*W*H=960*730*600mm,160kg
