500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory
Specifications
Brand Name :
Sinuo
Model Number :
SN7712
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Sets Per Month
Delivery Time :
5 Days
Packaging Details :
Carton
Specification Standard Compliance :
IEC 60695-11-3
Copper Block Power Rating :
500 W
Copper Block Diameter :
Φ9 mm ± 0.01 mm
Copper Block Weight :
10 ± 0.05 g
Thermocouple Type :
K-type
Thermocouple Diameter :
Φ0.5 mm armored wire
Temperature Resistance :
Up to 1100°C
Thermocouple Origin :
B+B, USA
Description

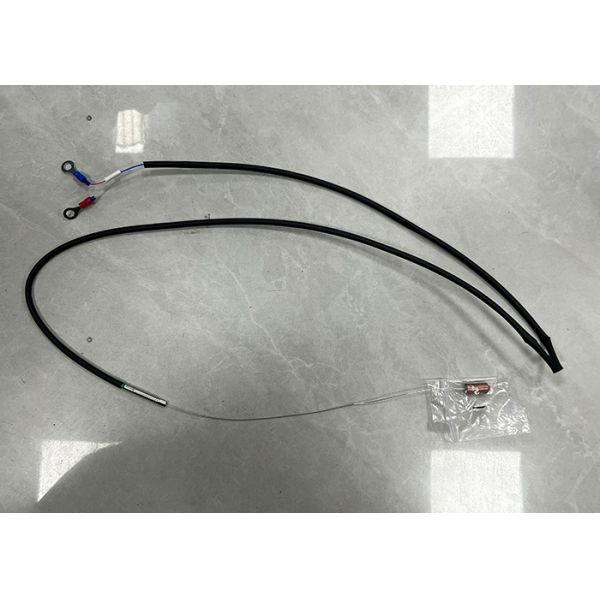

500W Copper Block and Thermocouple Set IEC 60695-11-3 Glow Wire Test Accessory

Product Overview:

The 500W Copper Block and Thermocouple Set is designed in full compliance with IEC 60695-11-3, ensuring precise and reliable temperature measurement for glow-wire and fire hazard testing.
This set includes a precision-machined copper block and a high-quality K-type thermocouple, delivering consistent performance and excellent thermal stability for laboratory and compliance testing applications.

Technical Parameters:

Item Specification
Standard Compliance IEC 60695-11-3
Copper Block Power Rating 500 W
Copper Block Diameter Φ9 mm ± 0.01 mm
Copper Block Weight (before drilling) 10 ± 0.05 g
Thermocouple Type K-type (Nickel-Chromium/Nickel-Aluminum)
Thermocouple Origin B+B, USA
Thermocouple Diameter Φ0.5 mm armored wire
Temperature Resistance Up to 1100°C
Assembly Copper block connected directly with thermocouple

Features:

Fully conforms to IEC 60695-11-3 requirements

Precision-machined copper head for stable thermal response

High-accuracy K-type thermocouple for precise temperature measurement

Robust construction ensures long-term repeatability and reliability

Ideal for glow-wire testers, fire hazard test systems, and laboratory calibration

Applications:

Glow-Wire Test Apparatus

Fire Hazard Temperature Measurement

Laboratory Calibration and Quality Control
