Specifications
Brand Name :
Sinuo
Model Number :
SN772C
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Glowing Element :
Ф4mm ± 0.04mm
Temperature Range :
500℃～1000℃
Moving Speed :
10mm /s ～ 25mm /s
Test Sample Pressure :
0.95N±0.1N
Maximum depth of heating :
7mm ± 0.5mm
Thermocouple :
Diameter 1mm K thermocouple
Testing time :
30s±0.1s
Chamber Volume :
≥ 0.5m³
Description

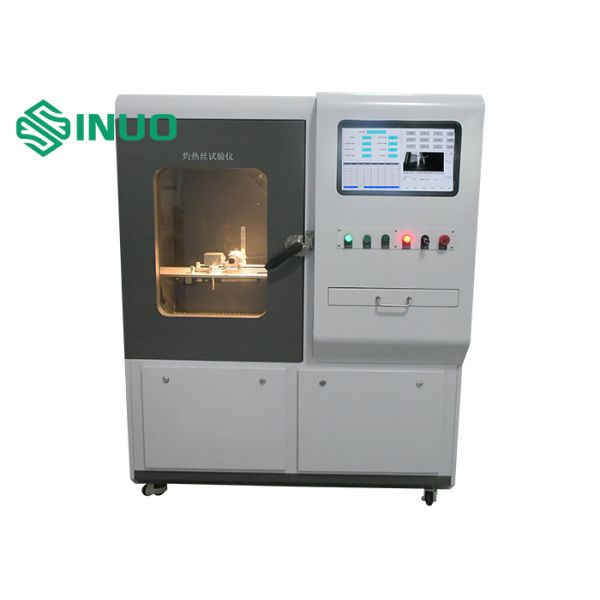

IEC60695-2-10 Glow Wire Test Apparatus With Computer Control
This advanced fire hazard testing equipment simulates thermal stress from glowing components or heat sources like overload resistance. Designed for comprehensive fire safety evaluation of electrical, electronic products, household appliances, and various materials.
Product Overview
Manufactured according to IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598 standards. The apparatus evaluates ignition temperature and flammability index through no-flame ignition source fire testing, ensuring product safety compliance.
Advanced Control System

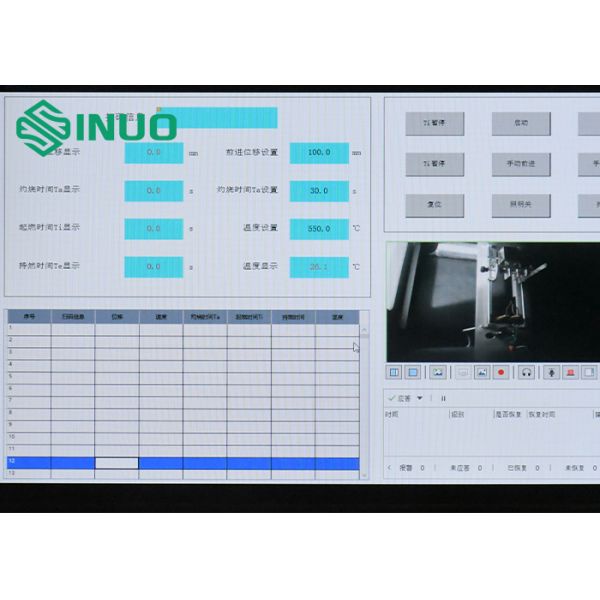

Features PC-controlled operation with advanced digital stepping motor for precise positioning and rapid adjustment. Real-time parameter monitoring, data storage, query capabilities, and automated test report generation provide superior accuracy and convenience for research and quality control applications.
Testing Principle

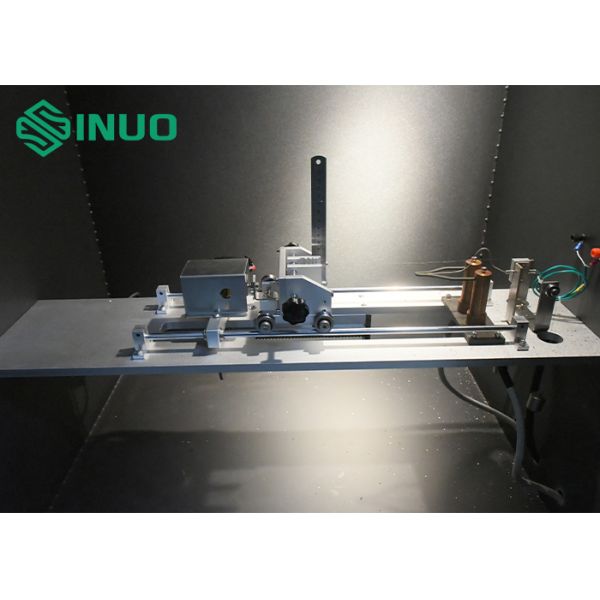

The glow wire (Ni80/Cr20) is heated to specified temperatures (550℃-960℃) for 1 minute, then applied vertically to test samples with 1.0N pressure for 30 seconds. Observation of sample and bedding ignition, burning time, and combustion characteristics determines ignition hazards for solid insulating materials and combustible materials.
Technical Specifications
Parameter Specification
Control System PC-controlled, Windows OS, fully intelligent control
Glowing Element Ф4mm ± 0.04mm (Ni/Cr alloy), standard horizontal configuration
Thermocouple Ф1mm K-type (BB brand), 1100℃ temperature resistance
Temperature Range 500℃-1000℃ (preset), fluctuation < 2℃
Temperature Accuracy ±0.05%
Specimen Pressure 0.95N ± 0.1N (adjustable)
Heating Depth 7mm ± 0.5mm maximum
Movement Speed 10mm/s - 25mm/s (fully automatic, adjustable)
Testing Time 30s ± 0.1s (1s - 999.9s preset range)
Prep Board 200mm × 200mm × 10mm
Test Paper 1500mm × 550mm, 12g/m²-30g/m² silk paper
Test Chamber ≥ 0.5m³ volume, black background, ≤ 20Lx illuminance
Exhaust Port 100mm diameter
Dimensions & Weight 1100mm × 550mm × 1200mm, 140kg
Power Supply AC 220V/50Hz
Drive Method Motor driven
Lighting System PC controlled, high-grade explosion-proof lamp
Current Regulation PC controlled, automatic or manual operation
Exhaust System PC controlled, automatic or manual operation
Standard Accessories
  • Silver Foil (99.99% purity, 2mm & 0.06mm thickness)
  • Paper-wrapping tissue (ISO 4046 specification)
  • Type K Thermocouple
  • Remote controller
  • Exhaust pipe for gas vent
Compliance Standards
IEC60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC60695-2-13, UL746A, IEC 60335, IEC 60598
