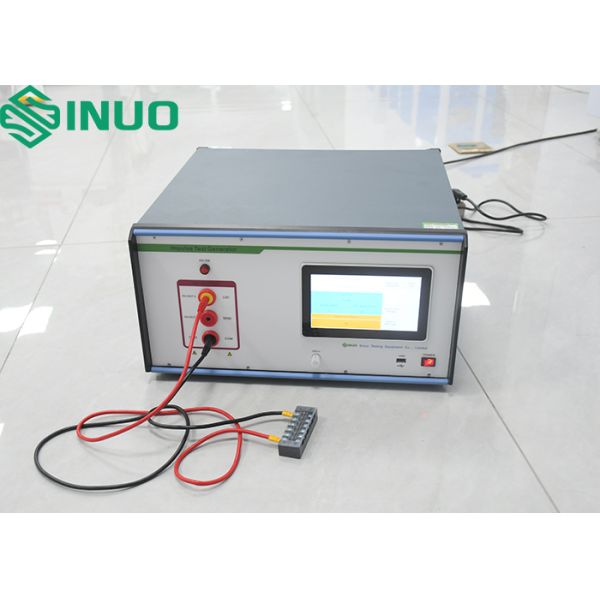

Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Impulse Test Generator For Household Appliances & Electronic Devices
Specifications
Brand Name :
Sinuo
Model Number :
SN1104
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Sets per month
Delivery Time :
30 days
Packaging Details :
Carton
High Voltage :
12.5kV
Impulse Waveform :
1.2µs ±30% front, 50µs ±20% half-value
Peak Voltage Range :
300V~12,500V
Instrument Internal Resistance :
12Ω ±10%, 500Ω ±10%
Impact Interval :
5~99s
Impact Cycles :
1~9999
Description

Impulse Test Generator For Household Appliances & Electronic Devices



Product information:

Standard: Conforms to IEC60335-1 clause 14, IEC60065:2014 clause 10.2, 13.3.4 a), and IEC 60065:2014 clause 13.3.4 b), 14.2, IEC60950, and etc.

Application: It is used to detect the transient over voltage of the components and the electrical clearance and the creepage distance.

Test sample: Household appliance, Audio, video and similar electronic apparatus.

Feature: The sample breakdown will produce a spark and acoustic, instrument peak voltage than the no-load voltage is decreased substantially (close to zero), when applying the same voltage in the next test, it will also show the above phenomenon.

Technical parameters:

Model

SN1104

DC high voltage

Max. 12.5kV

Impulse voltage wave

Impulse wavefront time: 1.2 µs ± 30 %;

Half value of after wave time: 50 µs ± 20 %

Note: the waveform can checked by connecting an external oscilloscope

Instrument internal resistance

12Ω ± 10% 500Ω ± 10%

Peak voltage

Low: 300 V~ 2,500V;
High: 2,500 V~ 12,500V

Impact interval time

5 ~ 99s

Impact cycles

1 ~ 9999

Polarity

positive and negative

Working power source

Rated voltage: ~ 220V±10%, 50Hz

Dimension

430mm×180mm×480mm

Weight

20 KG
