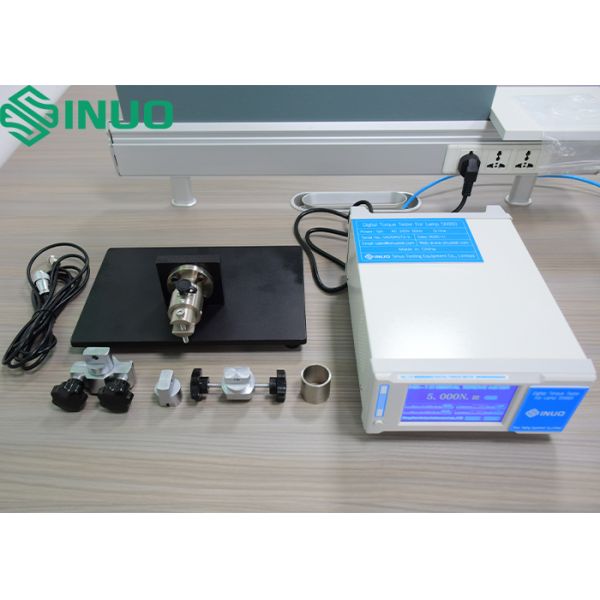

Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Specifications
Brand Name :
Sinuo
Model Number :
SN993
Certification :
Calibration Certificate(Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets per month
Delivery Time :
30 days
Packaging Details :
Carton
Torque Range :
0–10 N·m (customizable)
Measuring Accuracy :
≤1%
Repeatability :
≤0.5% FS
Linear :
≤0.5% FS
Hysteresis :
≤0.5% FS
Fixtures :
E14, E27, B15, B22 (customizable)
Description
Digital Torque Tester For Lamp Holders With High-Precision LCD Display
Torsion resistance is a critical safety requirement for the mechanical strength of lamp holders. This high-precision digital torque tester meets the anti-torque measurement requirements for various light sources including LED bulbs, energy-saving lamps, incandescent lamps, and fluorescent lamps.
Product Features
  • 5-inch high-definition LCD touch screen display with clear parameter visualization
  • Fixture-based lamp cap fixation for direct positive/negative torque measurement
  • Adjustable torque test range: 0~10N.m (custom ranges available)
  • Customizable lamp cap fixtures for various specifications
  • High-reliability strain gauge torque sensor with maximum value retention and alarm functions
  • Compliant with international and domestic standard requirements
Technical Specifications
Parameter Value
Measuring range 0-10N*m
Measuring accuracy ≤1%
Repeatability ≤0.5% FS
Linear ≤0.5% FS
Hysteresis ≤0.5% FS
Overload capacity 120% FS
Temperature compensation range -10℃ to 60℃
Rated operating conditions 25±5℃, ≤65% RH, 220V 60Hz
Allowable working conditions 0-40℃, ≤75% RH, 220V 60Hz
Dimensions (W×H×L) 330mm×110mm×335mm
Power consumption 15VA
Compatible Fixtures
Fixture Type Standard Reference
E14 IEC62560 Figure 3
E27 IEC62560 Figure 3
B15 IEC62560 Figure 4
B22 IEC62560 Figure 4
Note: Test gauges should be prepared by user and are not included with this machine.
