IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer For Household Appliance Safety Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-32T
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
5 Days
Packaging Details :
Carton
Maximum Measuring Temperature :
80°C
Thermocouple Type :
Φ0.3 mm K Type Thermocouple
Tube Inner Diameter :
Φ3 mm
Tube Outer Diameter :
Φ5 mm
Measuring Surface :
Φ5 × 0.5 mm
Contact Force :
4 ± 0.5 N
Baffle Diameter :
Φ50 mm
Baffle Thickness :
Φ5 mm
Description
IEC 60335-2-11 Surface Temperature Rise Test Probe With Thermometer
Professional testing equipment for household appliance safety compliance, designed to measure temperature rise on accessible surfaces.

Product Overview

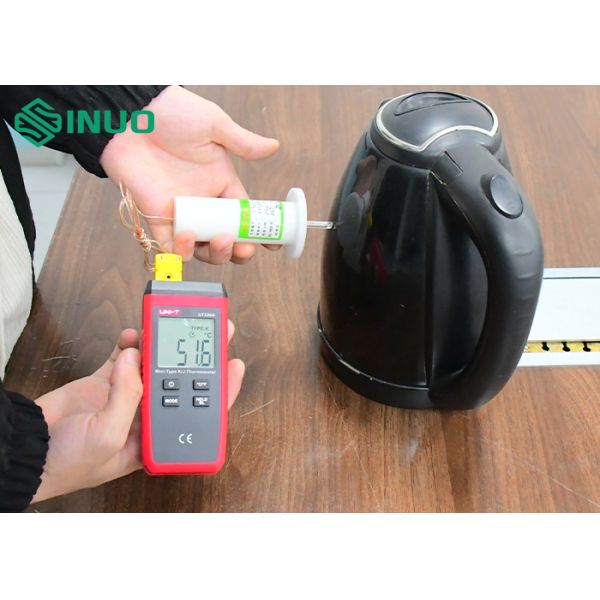

The IEC 60335 Surface Temperature Rise Test Probe is specially designed for measuring the temperature rise of easily accessible surfaces on household and similar electrical appliances. The probe complies with IEC 60335-1 Clause 11, IEC 60335-2-11 Clause 11.3 Figure 101, IEC 60335-2-6 Clause 11.101 Figure 104, and other related international safety standards.
This professional temperature testing probe is widely used for thermal performance evaluation of:
  • Drum-type dryers
  • Upright electric cookers
  • Cooking benches
  • Ovens
  • Household electrical appliances
  • Commercial cooking equipment
Equipped with a precision K-type thermocouple and stable 4N contact force structure, the probe ensures accurate and repeatable temperature rise measurements during appliance safety compliance testing. It is an essential testing instrument for appliance manufacturers, certification laboratories, quality inspection centers, and R&D institutions.

Product Features
  • Accurate Surface Temperature Measurement: Tinned copper measuring disc provides excellent thermal conductivity and stable contact performance
  • IEC Standard Compliance: Fully conforms to IEC 60335 series requirements for accessible surface temperature measurement
  • Precision K-Type Thermocouple: Integrated Φ0.3mm K-type thermocouple ensures fast response speed and accurate temperature acquisition
  • Stable Contact Force Design: 4±0.5N contact force structure improves testing consistency and reduces measurement deviation
  • Durable & Lightweight Structure: High-quality polycarbonate insulating tube with excellent mechanical strength and easy operation

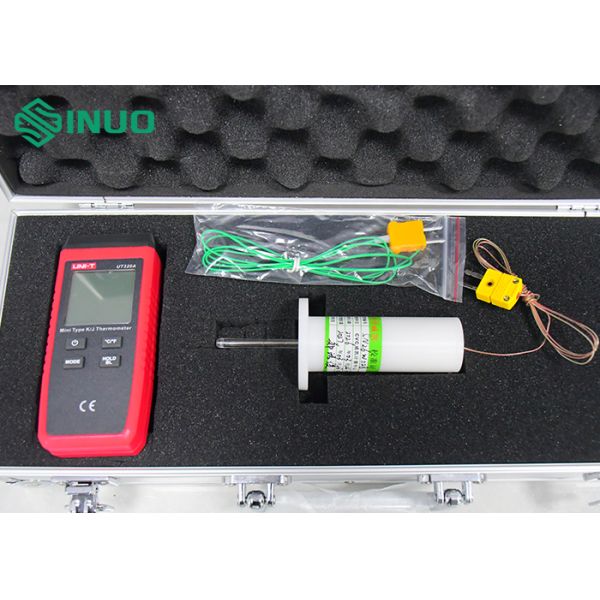

  • Complete Testing Solution: Supplied with professional digital thermometer for convenient laboratory testing applications


Technical Specifications
Parameter Specification
Product Name Surface Temperature Rise Test Probe
Applicable Standards IEC 60335-1 Clause 11, IEC 60335-2-11 Figure 101, IEC 60335-2-6 Figure 104
Measuring Surface Φ5 × 0.5 mm Tinned Copper Disc
Polycarbonate Tube Inner Diameter Φ3 mm
Polycarbonate Tube Outer Diameter Φ5 mm
Thermocouple Type Φ0.3 mm K Type Thermocouple
Contact Force 4 ± 0.5 N
Baffle Diameter Φ50 mm
Baffle Thickness Φ5 mm
Thermocouple Length >1 Meter
Maximum Measuring Temperature 80°C
Temperature Limitation Limited by Polycarbonate Tube Material

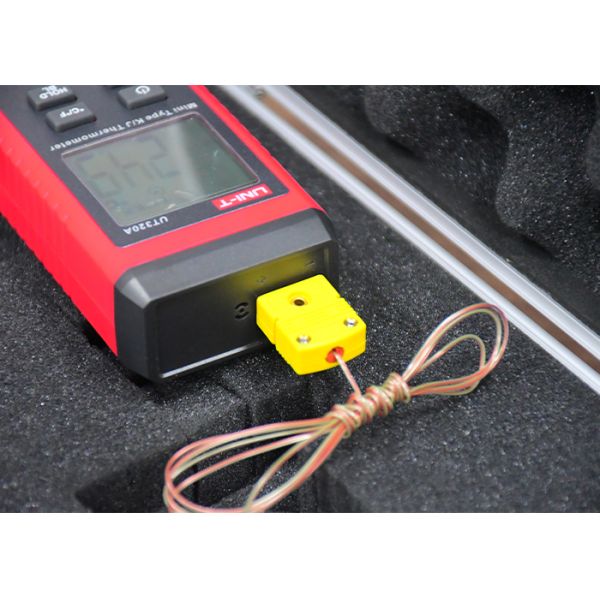

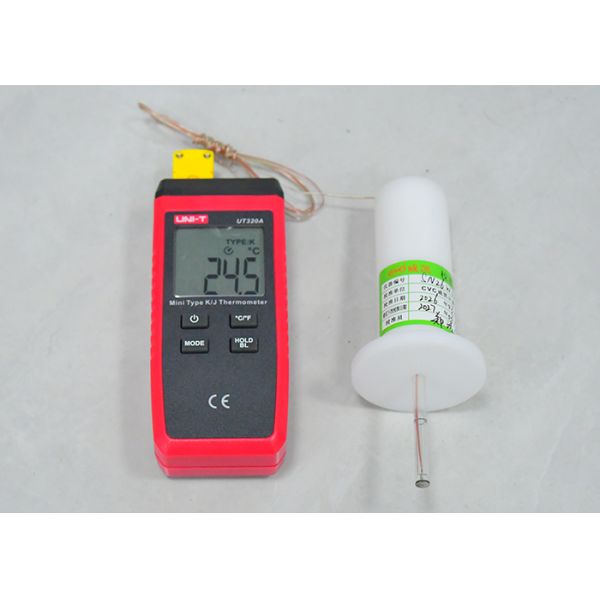

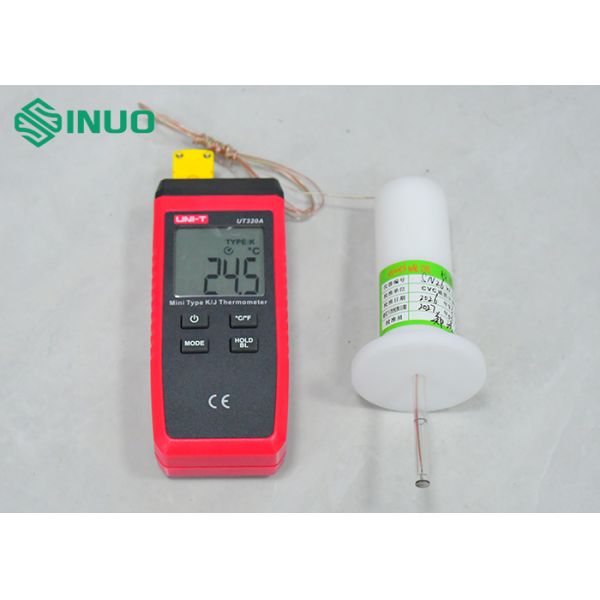

Included Accessory Digital Thermometer UT320A
Thermometer Measuring Range -50°C to 1000°C
Application Household Appliance Surface Temperature Testing

Applications
This IEC 60335 temperature test probe is suitable for:
  • Household appliance testing laboratories
  • Electrical appliance manufacturers
  • Certification and compliance institutions
  • Product quality inspection departments
  • R&D laboratories for cooking appliances
Typical testing applications include:
  • Dryer temperature rise testing
  • Oven accessible surface testing
  • Electric cooker thermal testing
  • Appliance safety verification
  • IEC compliance testing


Frequently Asked Questions
Which IEC standards does this probe comply with?
The probe complies with IEC 60335-1 Clause 11, IEC 60335-2-11 Clause 11.3 Figure 101, IEC 60335-2-6 Clause 11.101 Figure 104, and related appliance safety testing standards.
What appliances can be tested using this probe?
It is mainly used for drum dryers, electric cookers, ovens, cooking benches, and other household electrical appliances requiring accessible surface temperature measurement.
What thermocouple type is used?
The probe uses a high-precision Φ0.3mm K-type thermocouple for accurate temperature acquisition.
What is the maximum measuring temperature?
The maximum recommended temperature is 80°C due to the polycarbonate tube material limitation.
Is the thermometer included?
Yes. The equipment includes a UT320A digital thermometer with a measuring range from -50°C to 1000°C.
Can the probe be customized?
Yes. Customized dimensions, cable lengths, and testing configurations are available according to customer requirements.
