DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
Specifications
Payment Terms :
T/T
Material :
SUS304 stainless steel
Model Number :
SN2118
Applied figure :
Figure 19
MOQ :
1 Set
Delivery Time :
30 days
Warranty :
1 year
Price :
Negotiable
Applied clause :
Clause 22.1
Certification :
Calibration Certificate(cost additional )
Applied table :
Table 18
Supply Ability :
10 Sets / Month
Applied standard :
DIN VDE 0620-1:2021
Brand Name :
Sinuo
Bolt spacing :
± 0.05mm
Packaging Details :
Plywood Case
Place of Origin :
China
Brand :
Sinuo
Description
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
Product Overview

This apparatus is designed to meet the exacting requirements of major international standards including DIN VDE 0620-1, IEC 60884-1:2022 clause 22.1 and 22.2 Fig 25 and Fig 26. It tests whether the maximum force of pulling the plug from the socket and the minimum force of pulling the single plug pin from the plug bush falls within the standard required range. The clamping system is easy to operate.

Equipped Gauge Display

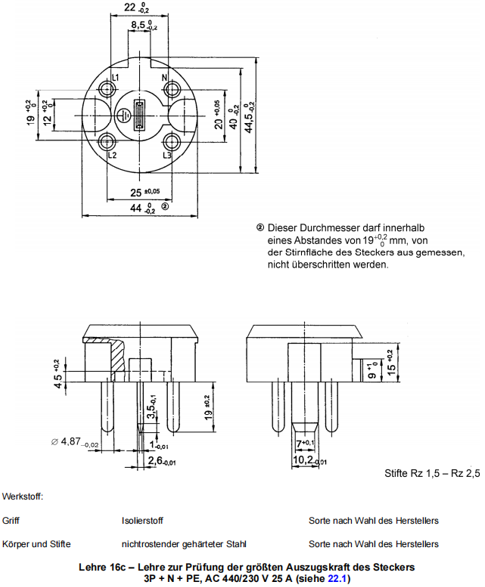

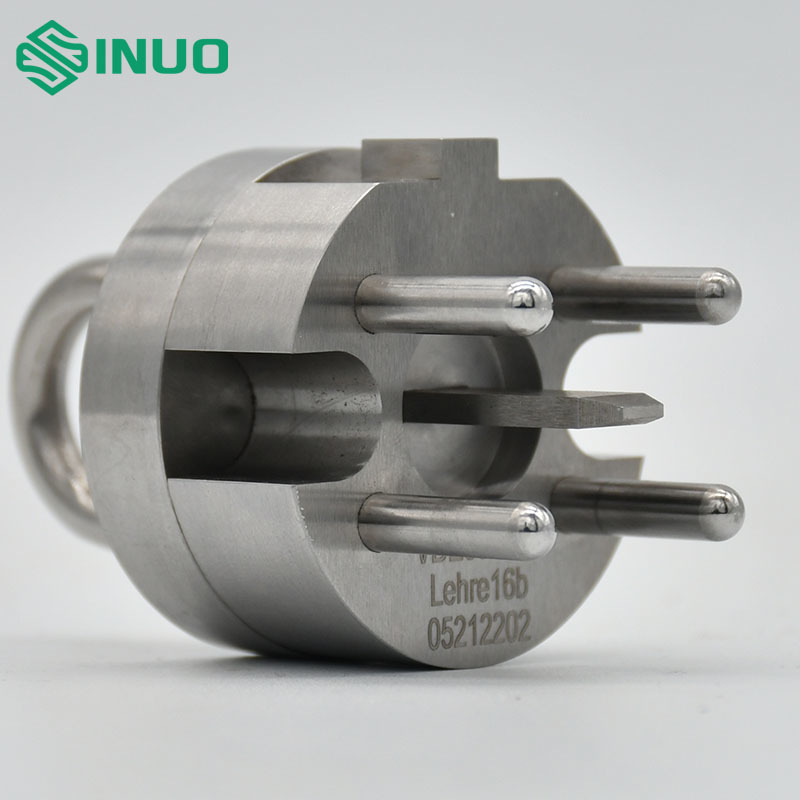

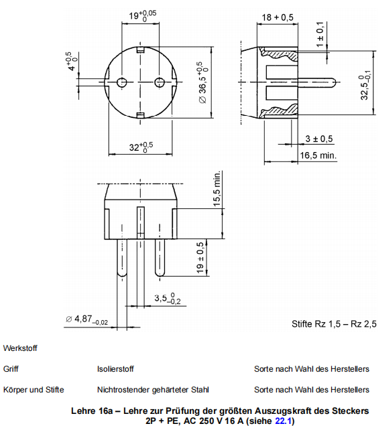

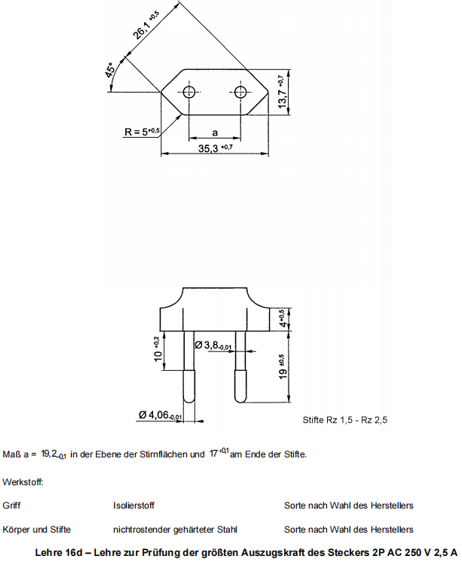

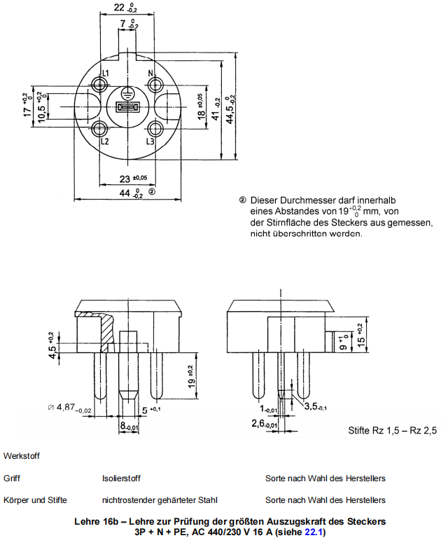

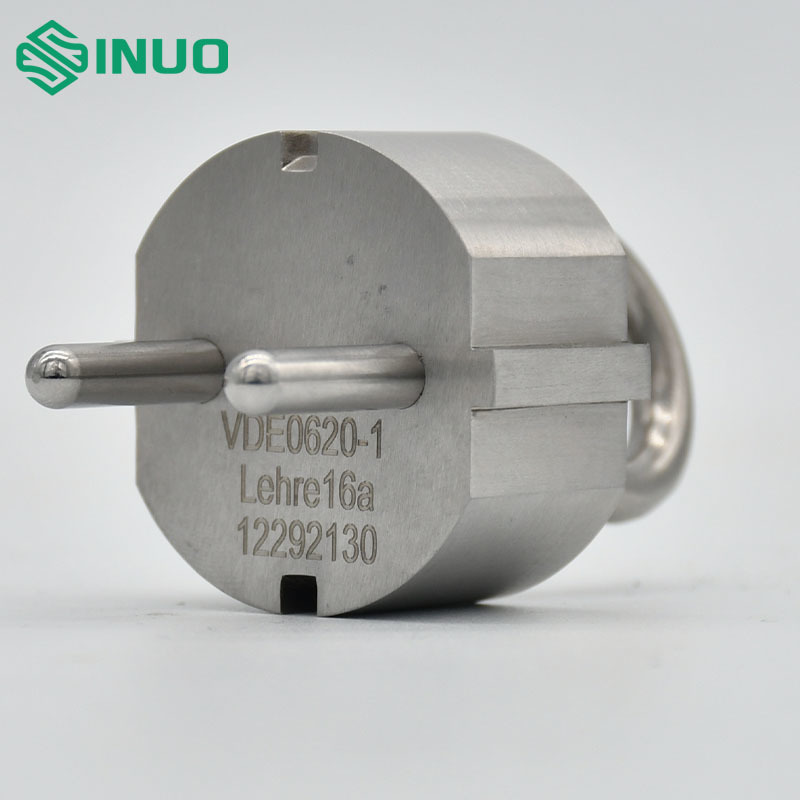

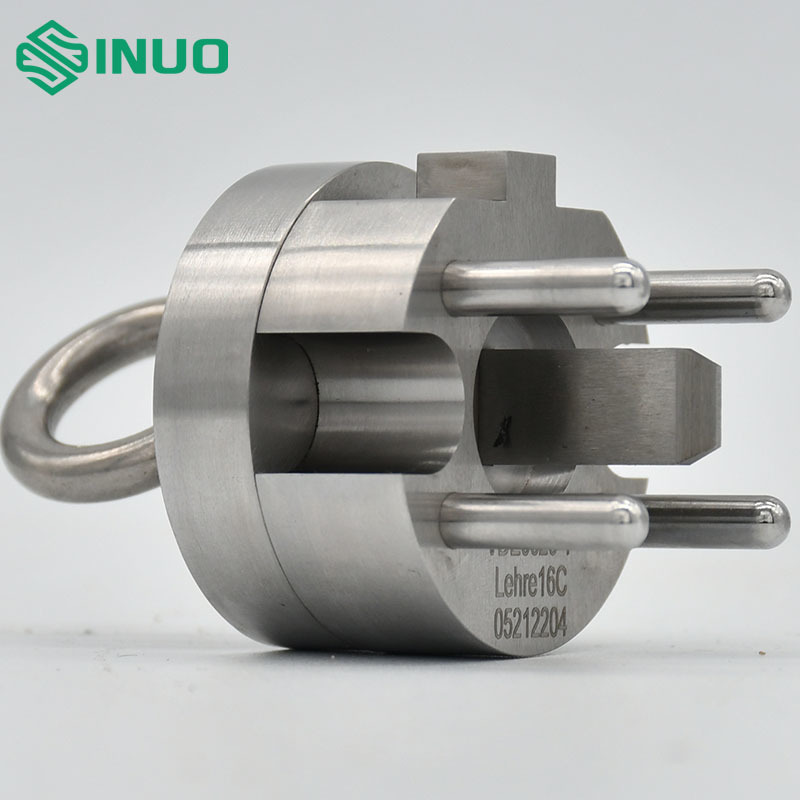

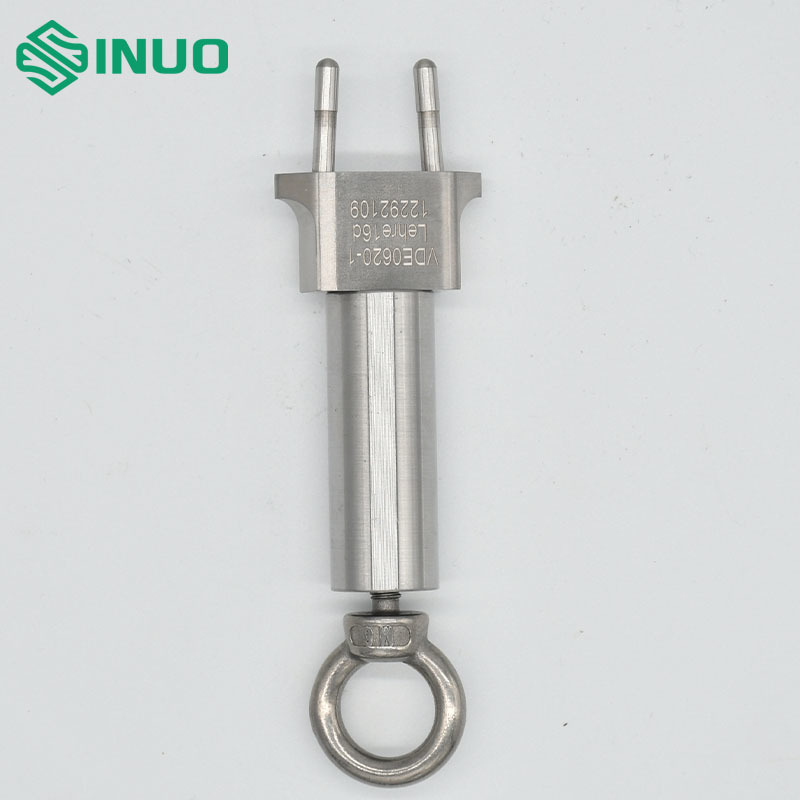

  • Plug: Test plugs are made according to DIN VDE 0620-2-1:2021 standards, DIN-VDE0620-2-1-Lehre16a/b/c/d, total 4 sets of gauges
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet

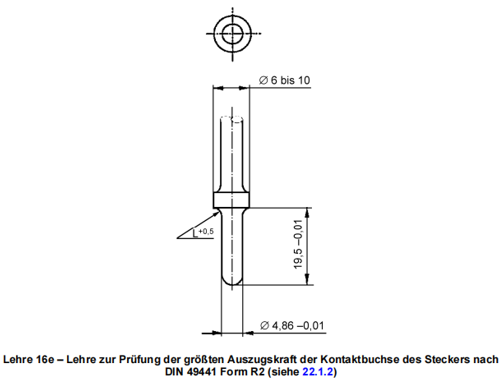

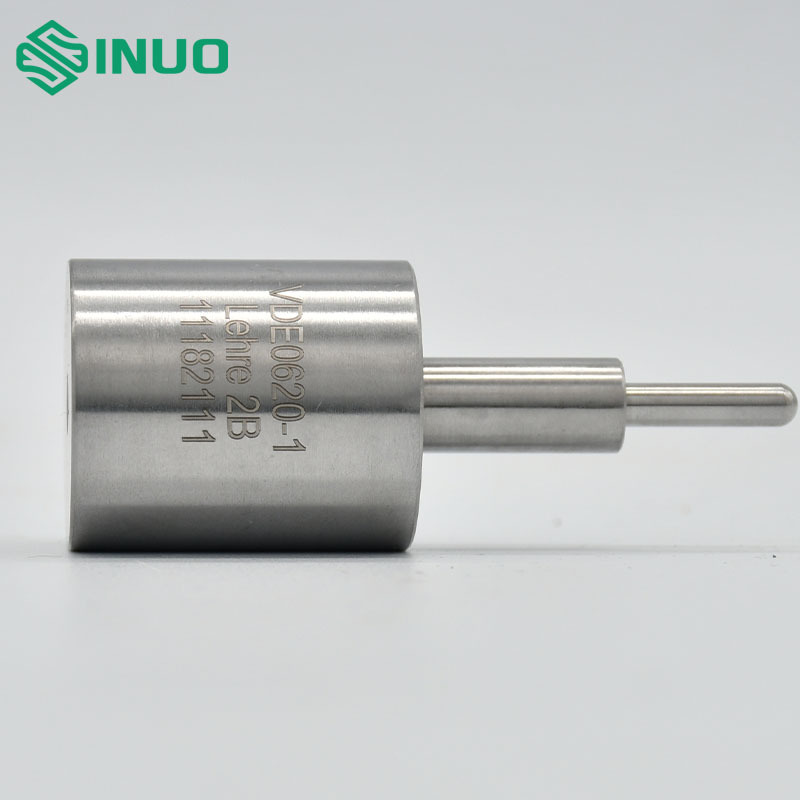

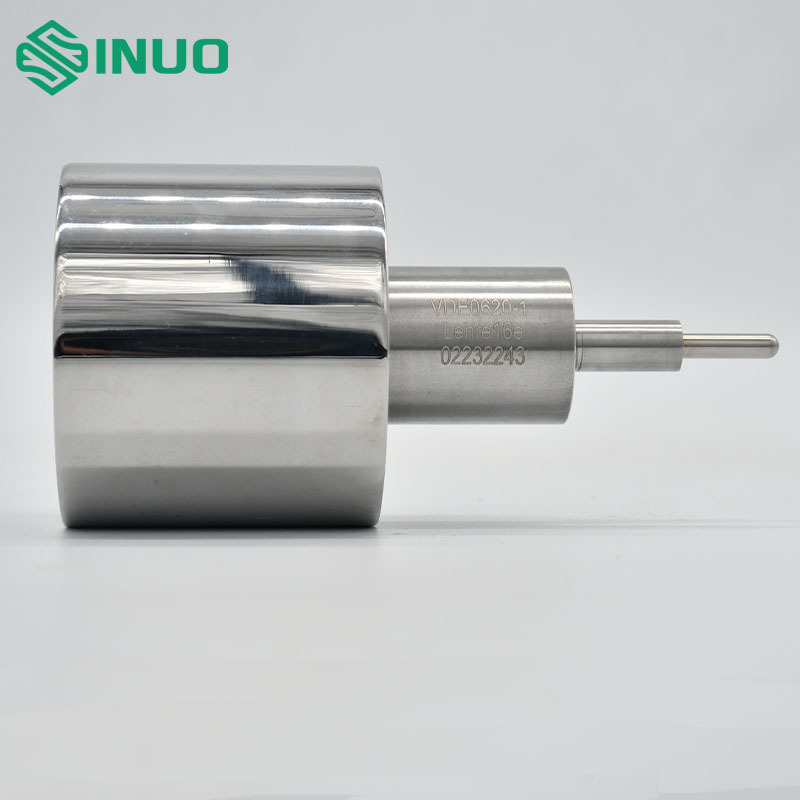

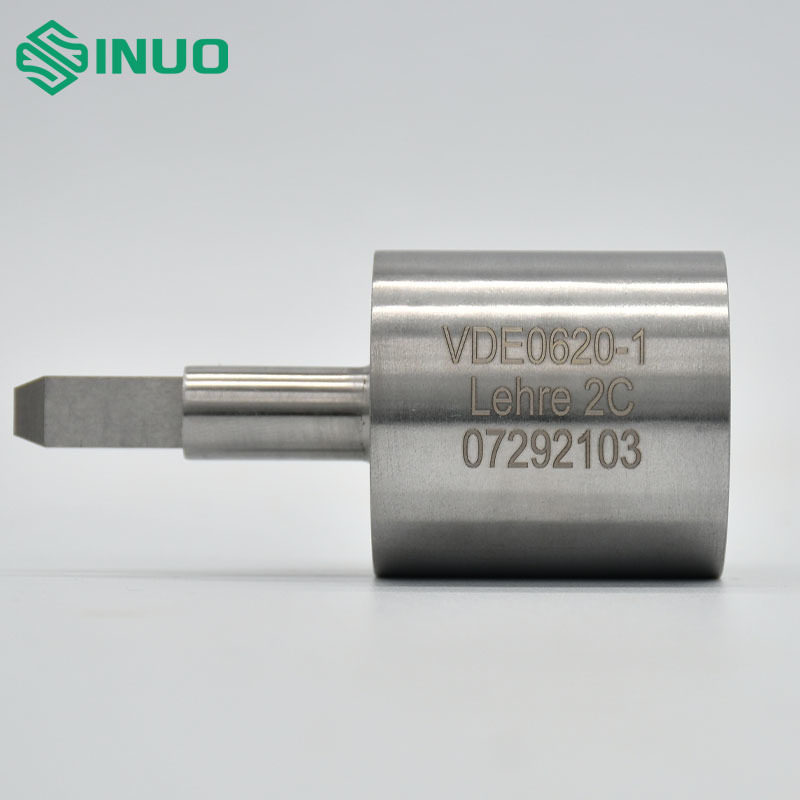

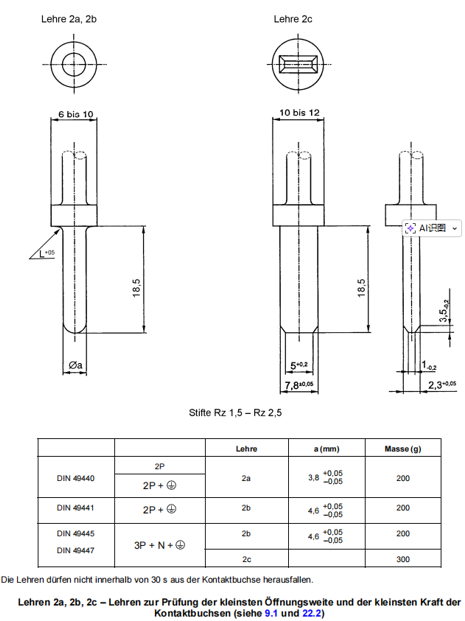

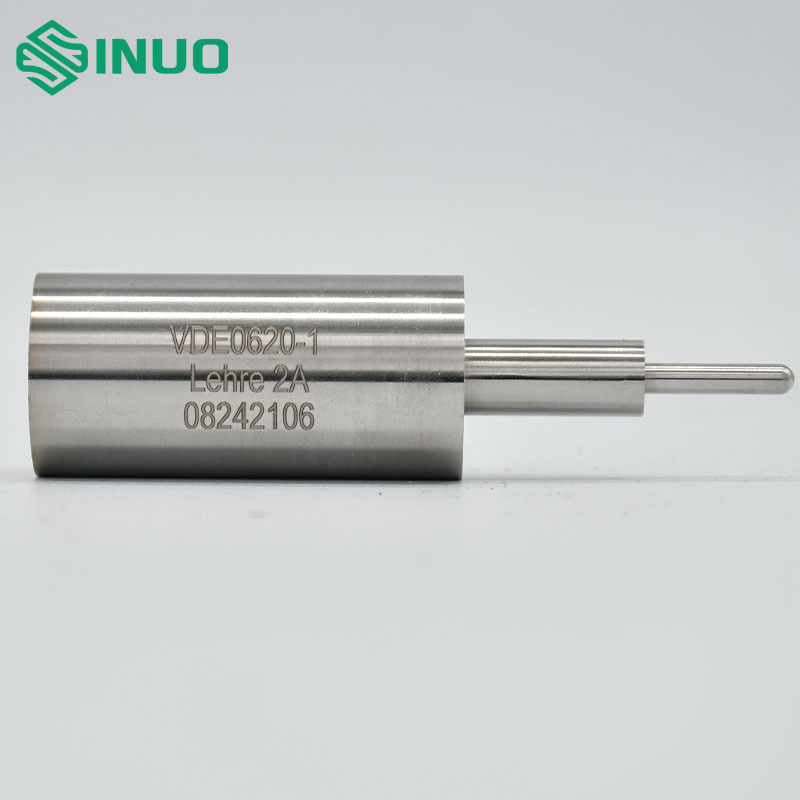

  • Plug: Test plug pins are made according to DIN VDE 0620-2-1:2021 standards, DIN-VDE0620-2-1-Lehre 2a,2b,2c and Lehre 16e, total 4 sets of gauges
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet

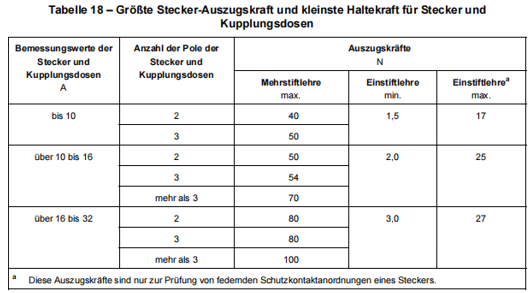

Weight Specifications
Total Weight Component Weights
40N 36N x1 + 4N x1
50N 45N x1 + 5N x1
54N 48.6N x1 + 5.4N x1
70N 63N x1 + 7N x1
80N 63N x1 + 9N x1 + 8N x1
100N 90N x1 + 10N x1
Note: The weight of the main weight includes the weight of the corresponding test plug and hook.
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
High-Quality Precision Gauges
DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet DIN VDE 0620-1 Max. And Min. Withdrawal Force Test Equipment For Plug & Socket‑outlet
