IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control
Specifications
Payment Terms :
T/T
Load accuracy :
±0.5%
Model Number :
SN1122G
Control method :
PLC
MOQ :
1
Delivery Time :
30 Days
Test speed :
5mm/s
Price :
Customized
Sensor range :
0-50N
Certification :
Calibration Certificate (Cost Additional)
Test stroke :
60mm
Place of Origin :
China
Clamping force :
20N
Supply Ability :
10 sets per month
Force resolution :
0.01N
Brand Name :
Sinuo
Input power :
AC220V 50HZ
Packaging Details :
Plywood Case
Description

IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control


Product information:

Standard: Conform to IEC 61855 clause 5.8, figure 13 and 14.

Specimen and restrictions: Hair straightener.

Test purpose: Used to detect the tension uniformity of the hair straightener.

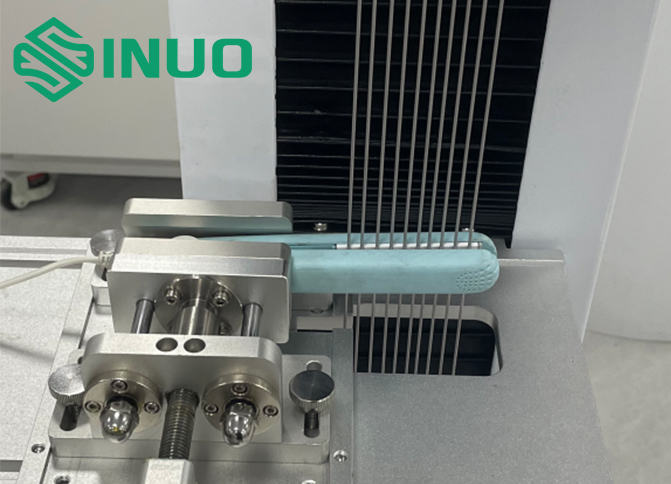

Test principle: Install 10 tension sensors on the fixed end of simulated hair, use a hair straightener to pull it from the top to the bottom, measure the tension value at each point and record the comparison.


Measurement of tension of hair straightener:

The purpose of the measurement is to evaluate the tension uniformity of the hair straightener.

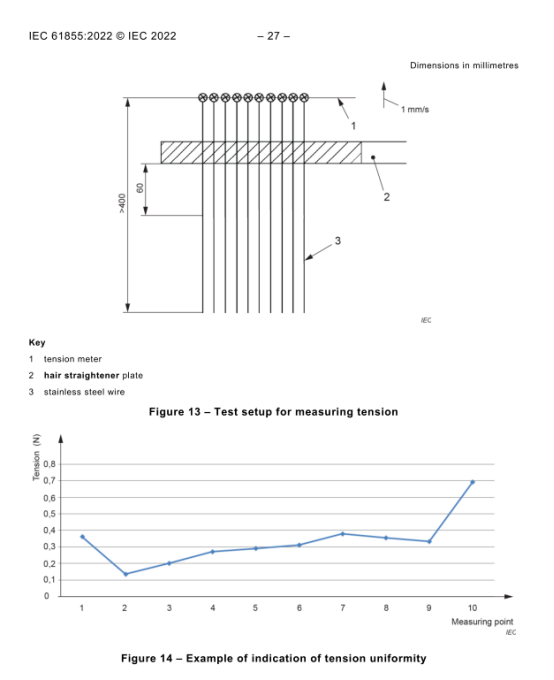

Ten stainless steel wires with a 1,5 mm diameter and not less than 400 mm in length are used. The flatness of the steel wire shall be less than 1 mm/m and the roughness (Ra) shall be less than 0,6 μm. The steel wires are evenly distributed with a space of 6 mm. Each wire is attached to a tension meter. The test set up is shown in Figure 13. The 10 wires are placed between the hair straightener plates in the middle area and are kept in a vertical state.

The hair straightener is powered on. After 30 s, a force of 20 N is applied onto the two plates. The hair straightener is moved down along the wires at a speed of 1 mm/s, and the distance moved is 60 mm. During the movement, the tension in each wire is read per 0,5 s and the measured tension (F1,F2,...F10) in each individual wire is calculated as the average of all readings. F1,F2,...F10 are recorded.


The tension uniformity of the hair straightener can also be illustrated in a graph, as shown in Figure 14.

IEC 61855 Hair Straightener Tension Uniformity Tester with PLC Intelligent Control

Technical Parameters:

Input power

AC220V 50HZ

Control method

PLC intelligent integrated control, 7-inch human-machine touch interface operation

Drive mode

Servo motor drive

Simulate hair fixing end

10 straight-line distribution points, 5m apart, each point is equipped with an independent tension sensor

Simulate hair

Nylon rope

Tension sensor range

0-50N, real-time monitoring, load accuracy: ±0.5%, resolution 0.01N

Test stroke

60mm, including fixture height

Pull direction

Vertical

Hair straightener clamping force

20N, spring clamp applied

Hair straightener pull-down speed

5mm/s, driven and speed controlled by servo motor

Tension collection

It is collected in real time by PLC through the tension sensor and transmitter, and each point is displayed with a tension curve.

Sample power supply

The equipment comes with a universal power socket and mains power

Configuration

Nylon rope, 1am and 2mm diameter, 20m long

Equipment dimensions

WDH=500x500x1100mm, 80kg
