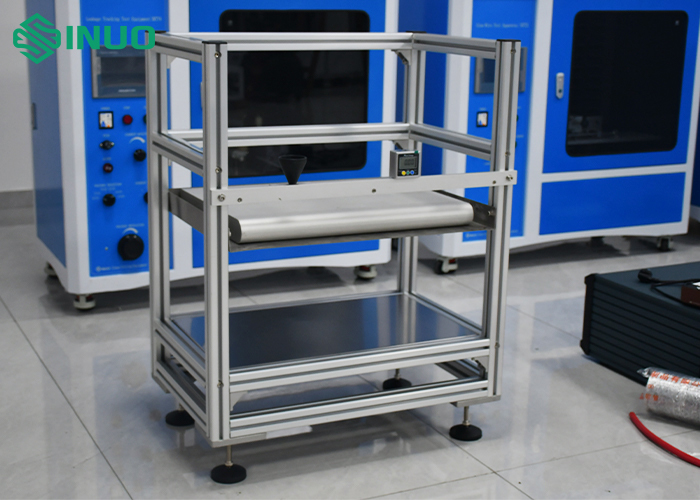

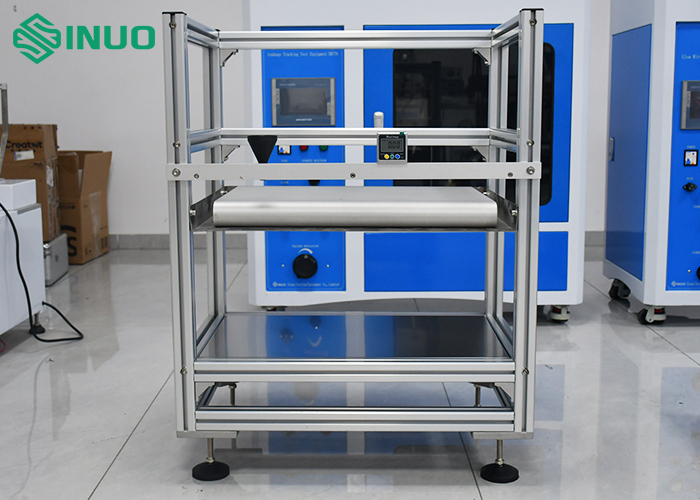

The IEC 60335-2-25 Storage Test Auxiliary Cabinet is a dedicated testing fixture developed for conducting the liquid leakage (spillage) test required by IEC 60335-2-25:2015 Clause 15.102, Figure 102, and Figure 103.

This equipment provides a standardized installation platform for microwave ovens during liquid overflow testing, allowing laboratories and manufacturers to accurately evaluate whether spilled liquids can enter hazardous parts of the appliance during normal use.

Designed for certification laboratories, household appliance manufacturers, and quality inspection organizations, the auxiliary cabinet ensures repeatable test conditions and full compliance with international safety requirements.

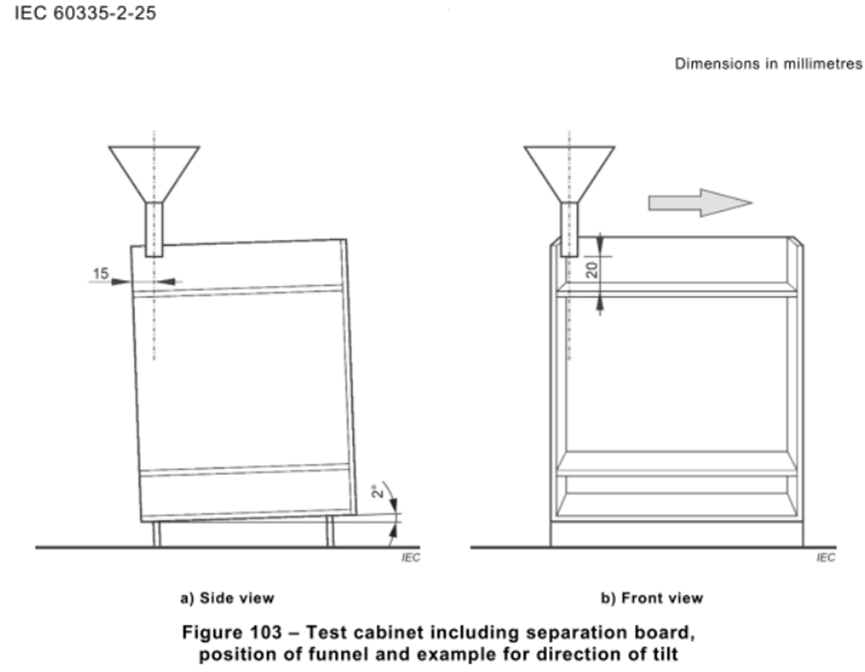

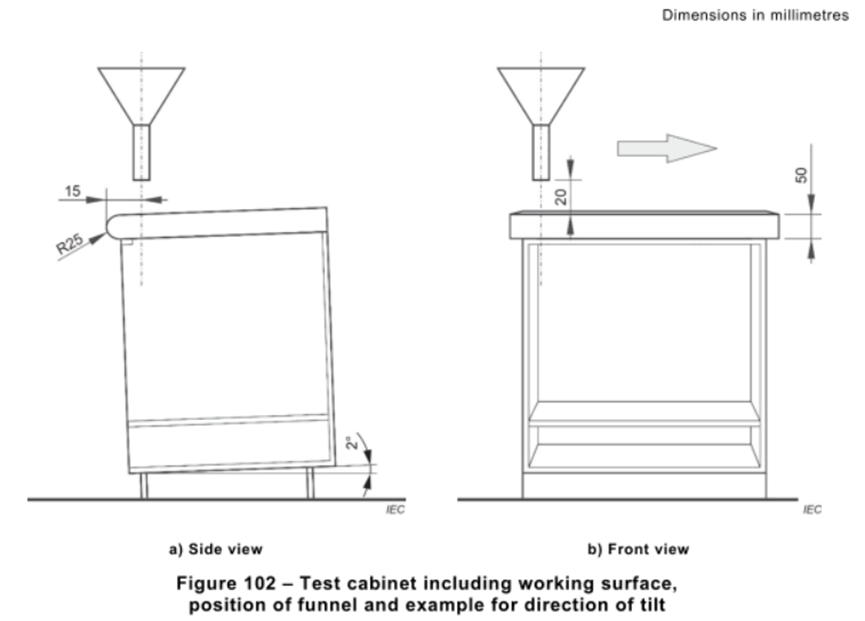

• Designed Specifically for IEC 60335-2-25 Clause 15.102: Engineered according to the structural requirements of Figure 102 and Figure 103, ensuring standardized liquid leakage testing.
• Simulates Real Installation Conditions: The cabinet recreates the installation environment required by the standard, allowing realistic overflow and liquid penetration evaluations.

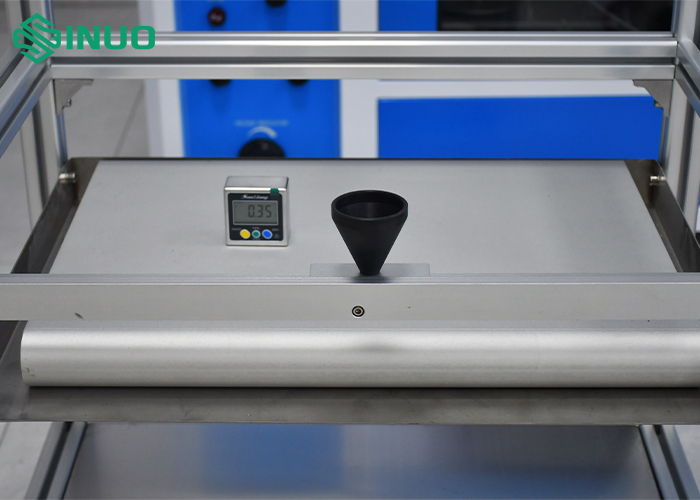

• Precision Funnel Collection System: Integrated funnel assembly accurately directs spilled liquid according to IEC testing procedures.
• Durable Stainless Steel Construction: Manufactured using corrosion-resistant stainless steel for long-term laboratory operation.
• High Repeatability: Rigid mechanical structure guarantees consistent positioning and reliable test results.
• Custom Design Available: Dimensions and installation configurations can be customized according to customer laboratory requirements.

The auxiliary cabinet is suitable for:

• Household microwave ovens
• Built-in microwave ovens
• Commercial microwave ovens
• Combination microwave ovens
• Appliance safety laboratories
• Household appliance manufacturers
• Third-party testing laboratories
• Product certification centers

Designed according to:

• IEC 60335-2-25:2015
• Clause 15.102
• Figure 102
• Figure 103

Custom standards and special laboratory requirements are available upon request.

During the test, the microwave oven is installed on the storage test auxiliary cabinet in accordance with the standard. A specified quantity of liquid is introduced through the standardized funnel system to simulate accidental overflow during normal operation.

The test evaluates whether the spilled liquid can reach live electrical parts or create hazardous conditions inside the appliance. The auxiliary cabinet provides stable positioning, standardized installation geometry, and reliable liquid guidance, ensuring accurate and repeatable testing.

• Fully compliant with IEC 60335-2-25:2015 Clause 15.102
• Designed for Figure 102 & Figure 103 testing
• Accurate liquid overflow simulation
• Precision funnel system
• Stainless steel laboratory-grade construction
• High repeatability
• Long service life
• Customizable according to laboratory layouts
• Easy installation and maintenance

Sinuo specializes in IEC household appliance testing equipment and provides professional laboratory solutions trusted by manufacturers and certification laboratories worldwide.

Whether you're developing new microwave ovens or preparing products for international certification, Sinuo provides reliable testing equipment that helps simplify compliance testing.
